Automatic Wire Pay‑off Machine

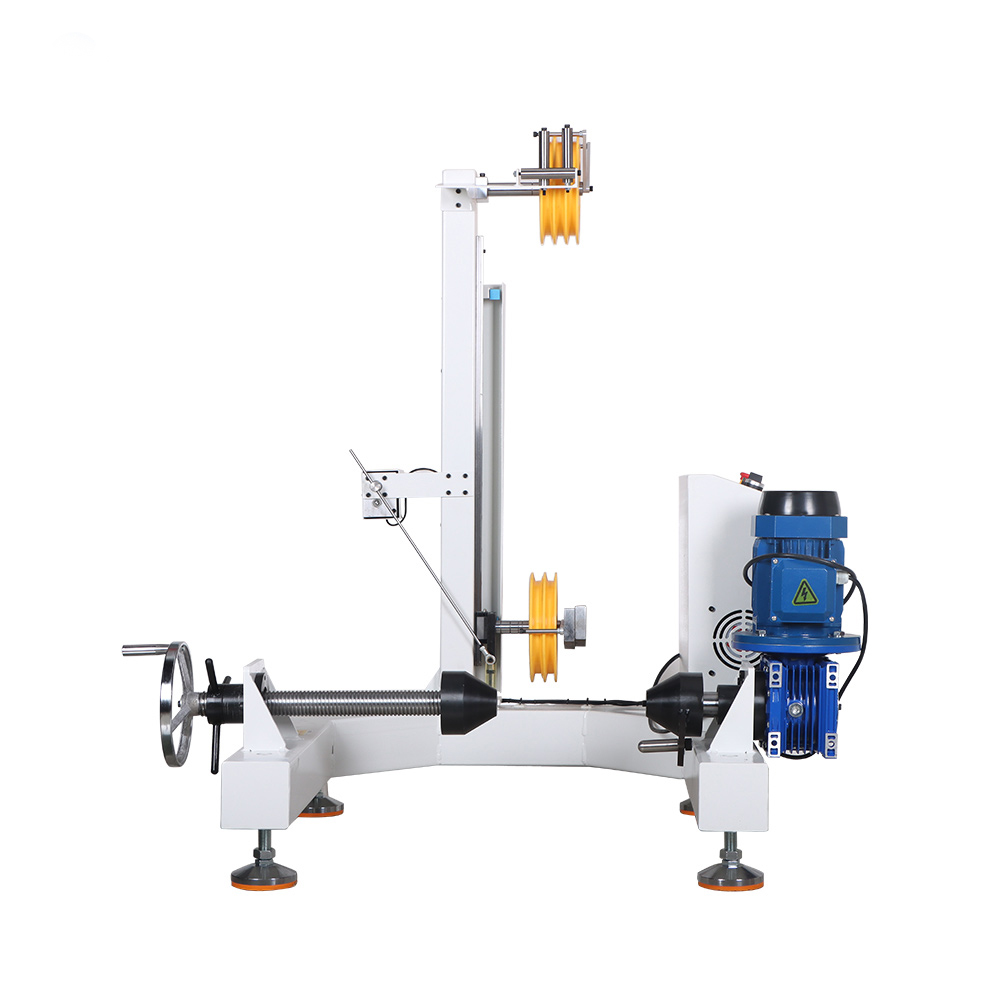

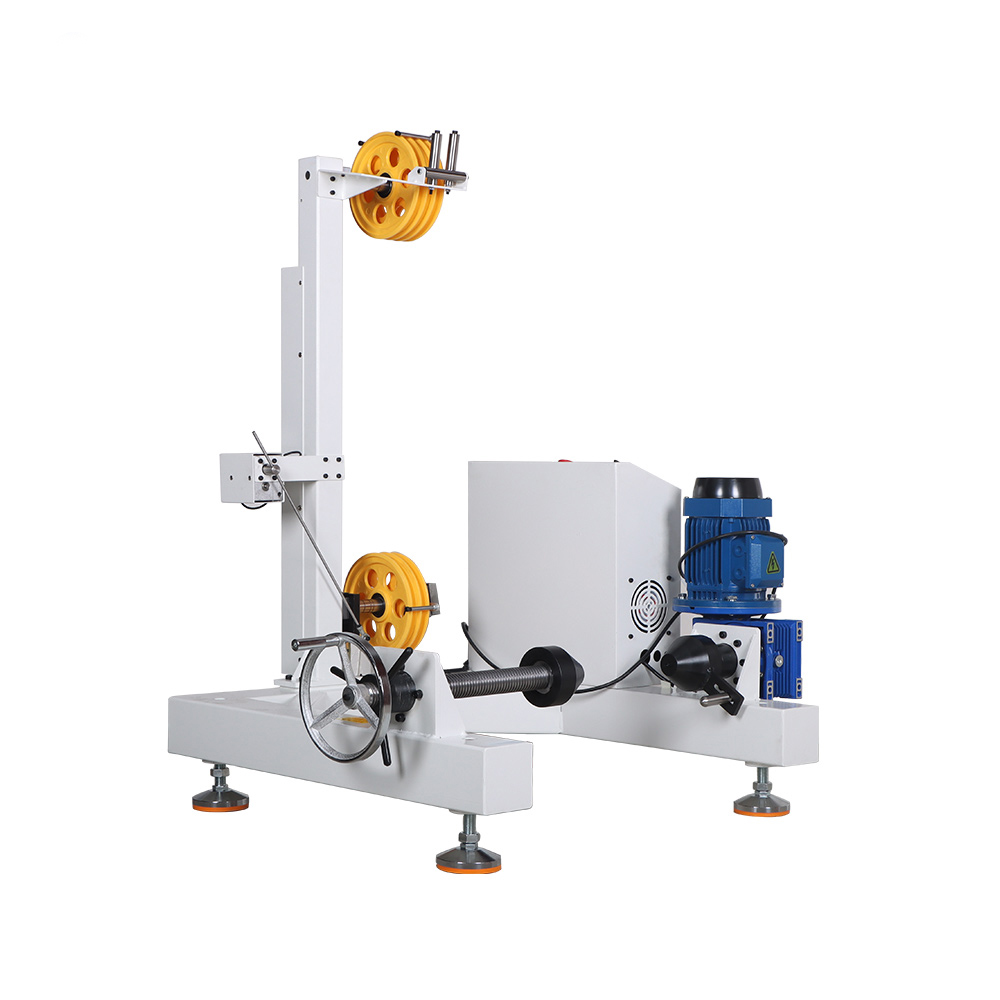

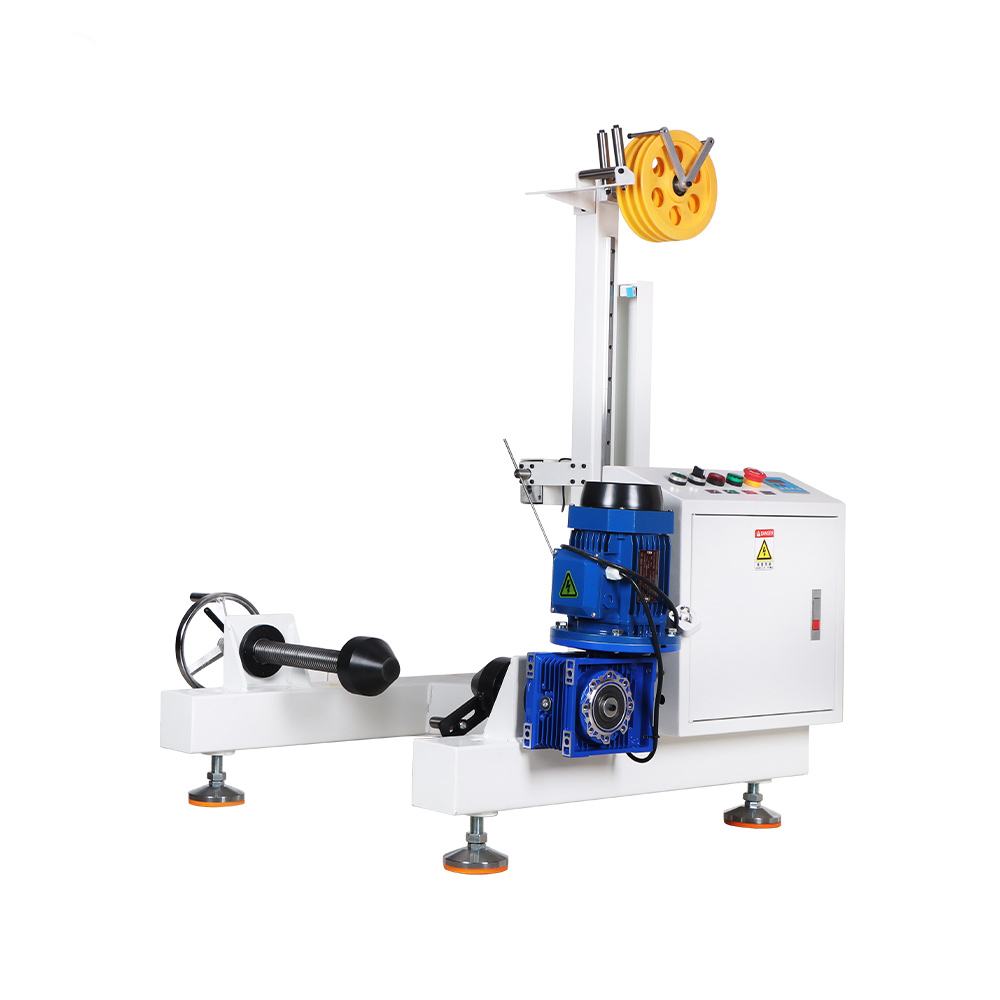

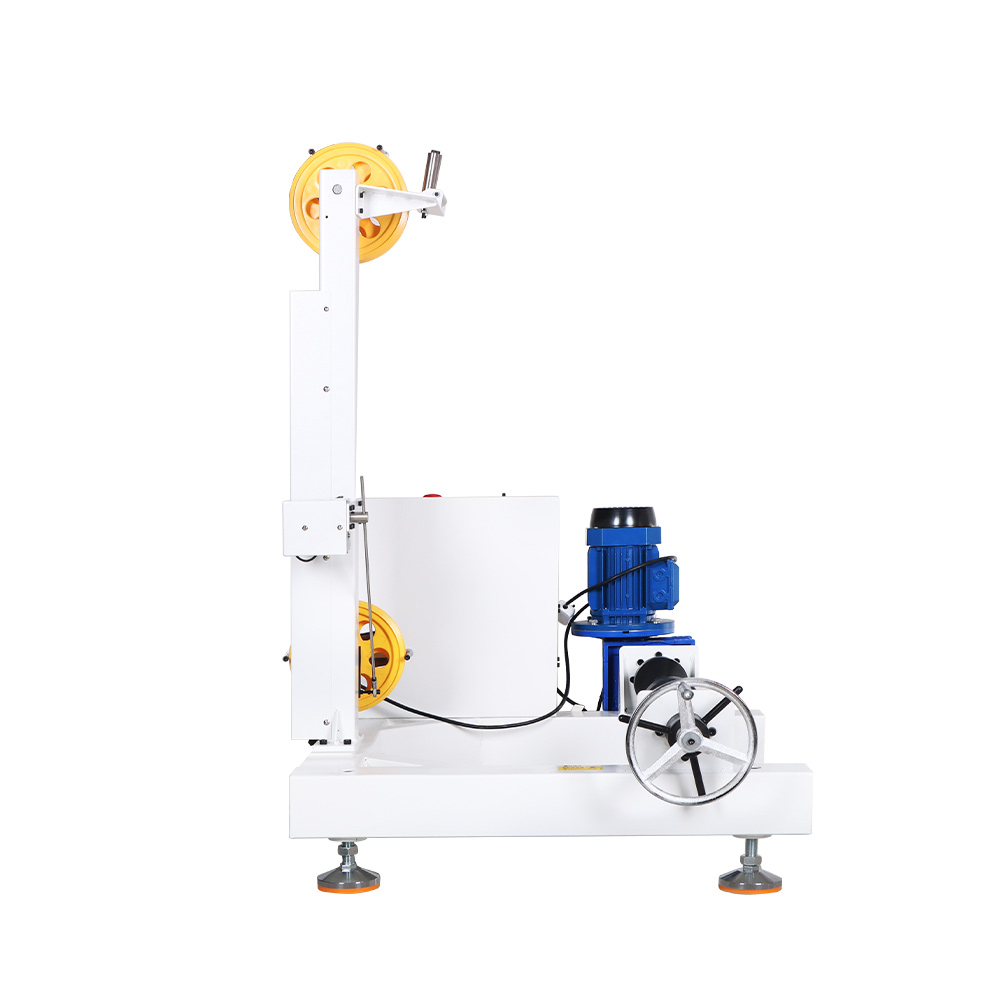

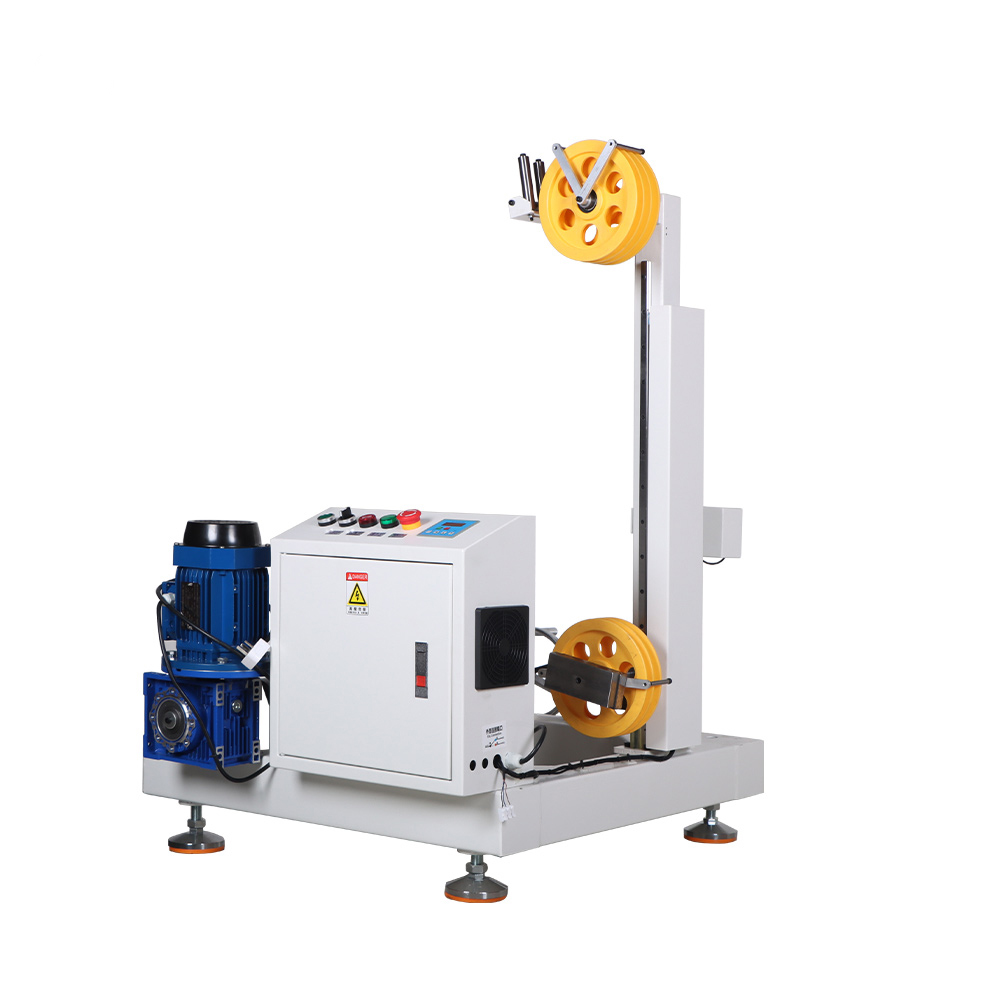

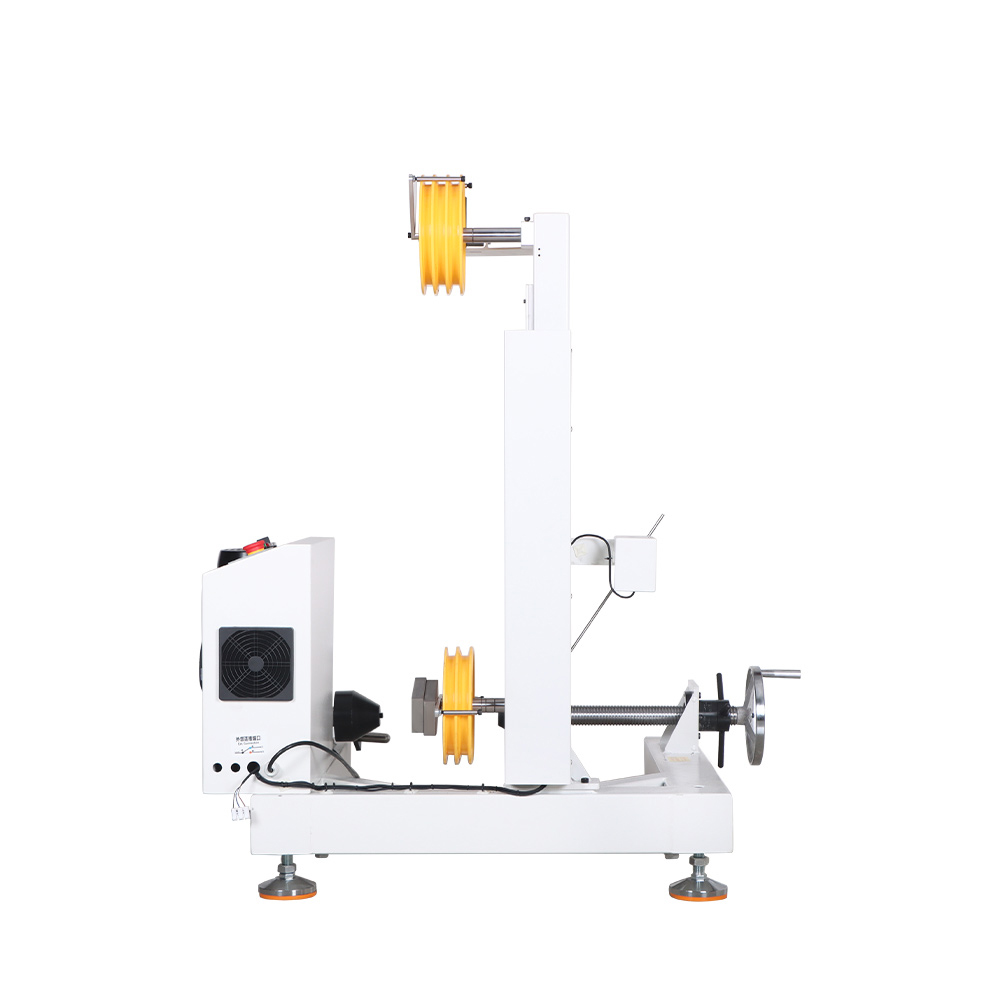

HS-FXJD-630 Large Square Automatic Pay-off Machine

HS-FXJD-630 Large Square Automatic Pay-off Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Automatic Pay-off Machine automatic wire payoff machine automatic cable pay‑off machine

Key Attributes

HS Code	8479899990	Power	2200W
Voltage	AC 220V 50Hz	Equipment Size	180015001700mm
Applicable Wire Diameter	φ3-12mm	Applicable Reel Size (Outer Diameter)	300-630mm
Applicable Reel Width	300-500mm	Load Capacity	300kg

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Automatic Pay-off Machine automatic wire payoff machine automatic cable pay‑off machine

Product introduction

This equipment is specifically designed to work in conjunction with fully‑automatic computer wire‑stripping machines, eliminating the need for manual wire feeding. It features a high‑power motor with active wire‑feeding capability. With a full coil of cable placed on the payoff stand, the equipment can start and stop automatically. Operating as an independent unit, it does not require synchronized control with the main machine and is suitable for use with fully‑automatic terminal crimping machines, winding machines, and other equipment.

Eliminate manual wire feeding

Wide compatibility

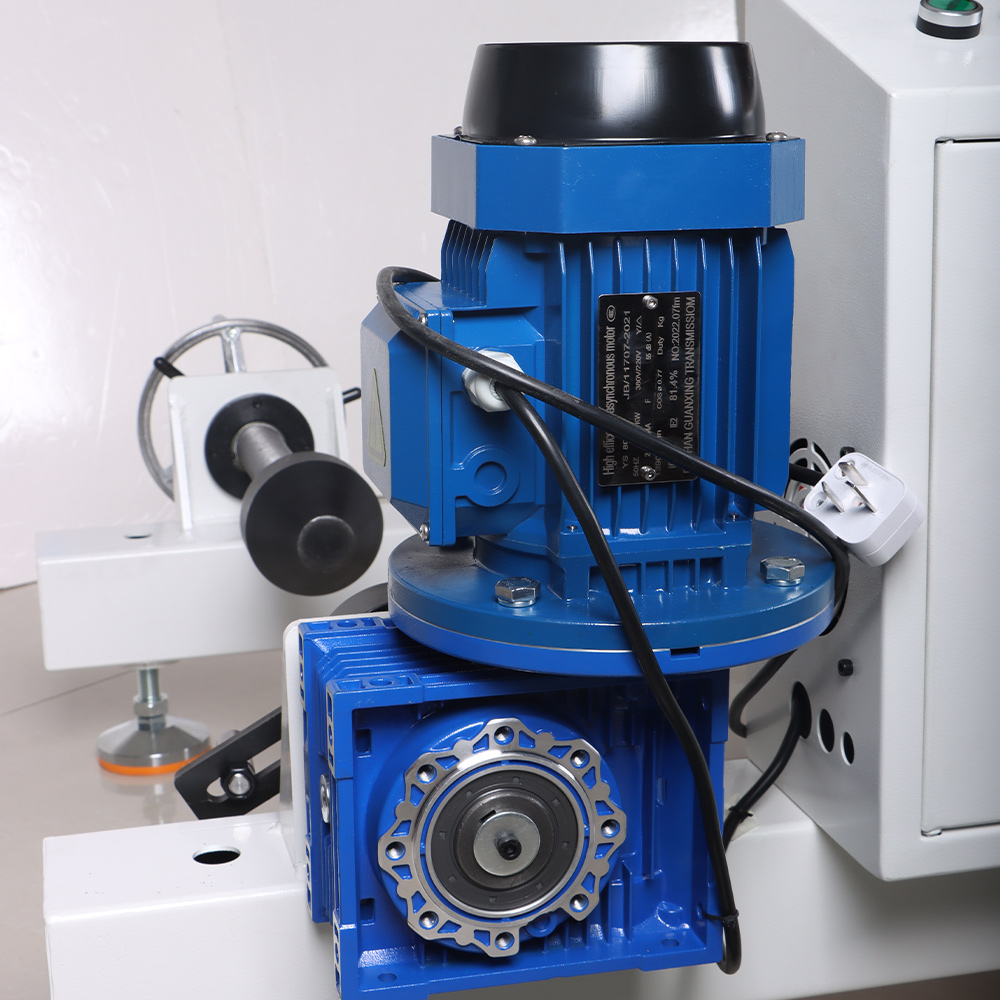

High‑power motor

Independent operation

Automatic start‑stop function

Comparison of similar product features

HS-FXJD-630 Large Square Automatic Pay-off Machine

Power	2200W
Voltage	AC 220V 50Hz
Applicable Wire Diameter	φ3-12mm
Applicable Reel Size (Outer Diameter)	300-630mm
Applicable Reel Width	300-500mm
Equipment Weight

HS-FXJD-1250 Large Square Automatic Pay-off Machine

Power	4000W
Voltage	AC 220V 50/60Hz
Applicable Wire Diameter	φ6-45mm
Applicable Reel Size (Outer Diameter)	800-1250mm
Applicable Reel Width	600-950mm
Equipment Weight

Product Name

Power

Voltage

Applicable Wire Diameter

Applicable Reel Size (Outer Diameter)

Applicable Reel Width

Equipment Weight

HS-FXJD-630 Large Square Automatic Pay-off Machine	HS-FXJD-1250 Large Square Automatic Pay-off Machine
2200W	4000W
AC 220V 50Hz	AC 220V 50/60Hz
φ3-12mm	φ6-45mm
300-630mm	800-1250mm
300-500mm	600-950mm
