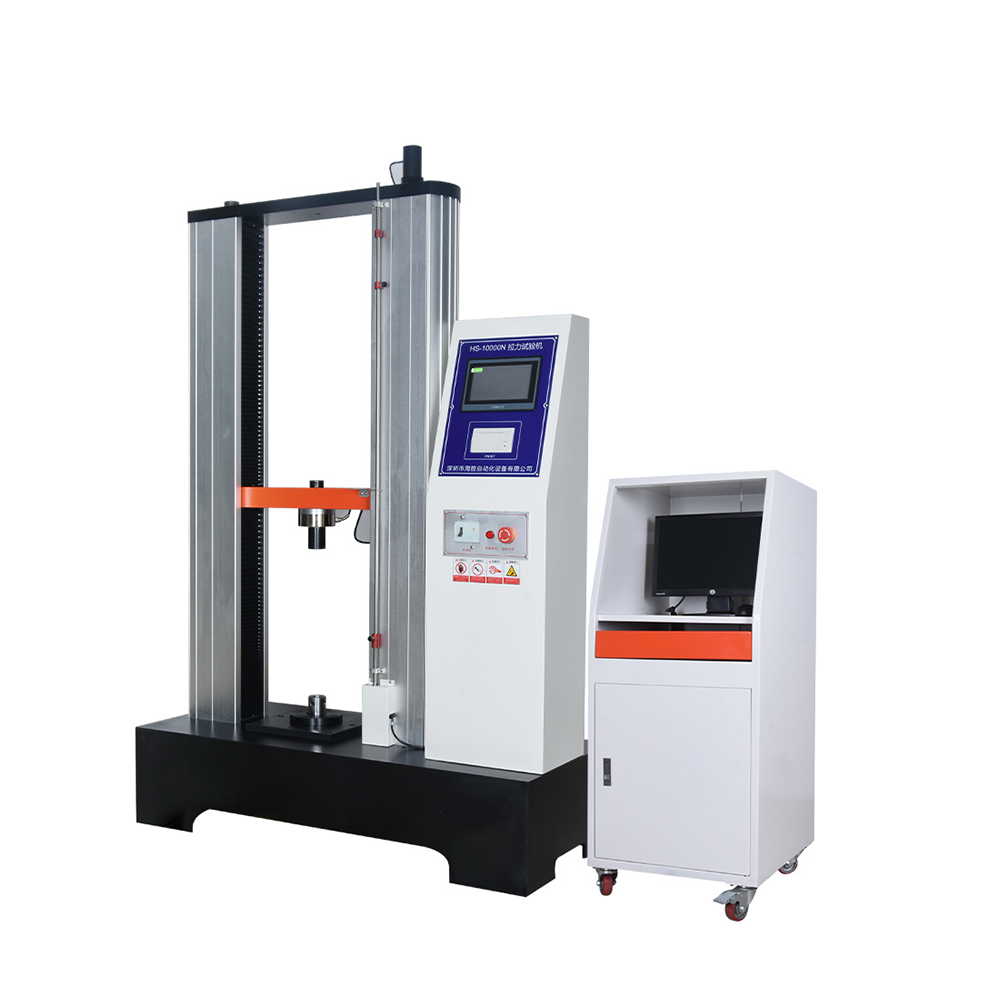

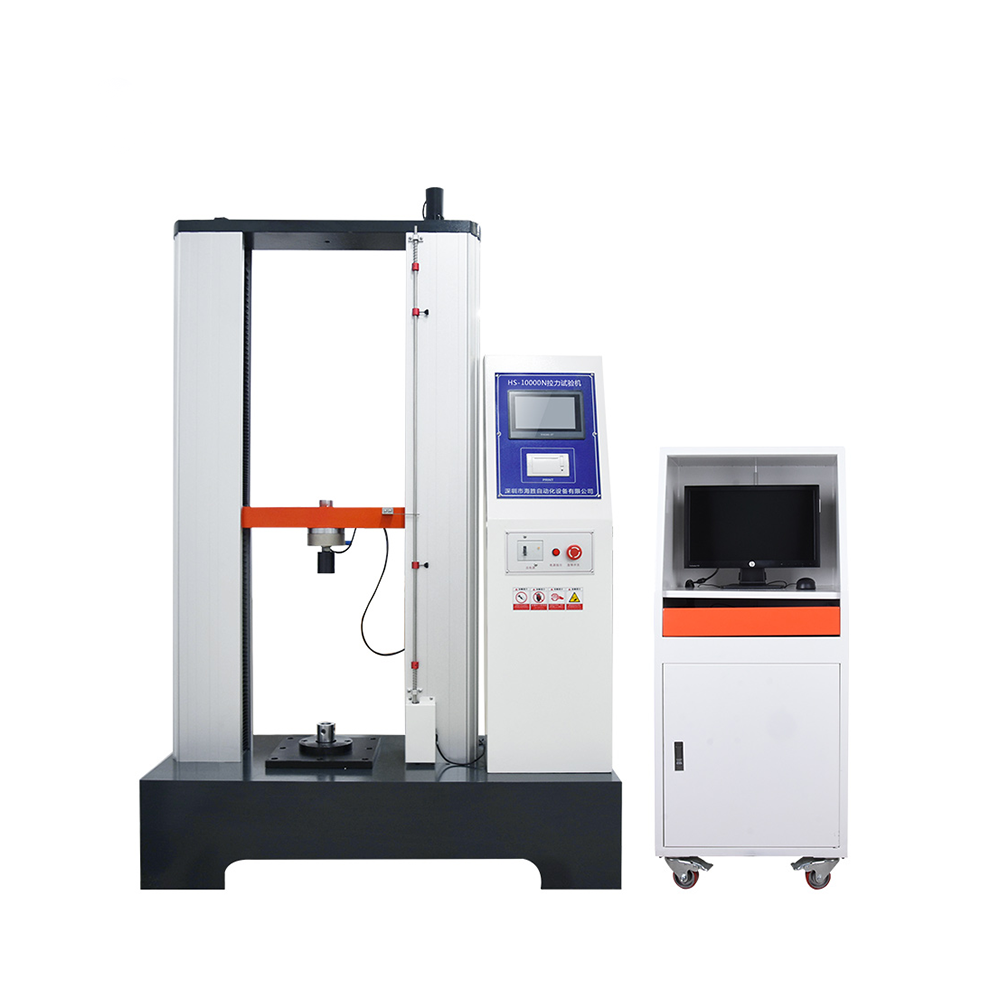

HS-10000N-D Tensile Testing Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Tensile Testing Machine Universal Testing Machine Tensile Strength Tester Tension Testing Machine

Key Attributes

HS Code	8468800000	Power	400W/750W (based on force range)
Voltage	AC 220V 50Hz	Equipment Weight	200kg
Equipment Size	12006301850mm	Maximum Load	1000kg
Test Speed	0.1-500mm/min	Accuracy Class	0.5 Class
Force Measurement Accuracy	Within ±0.5% of indicated value	Effective Test Width	60mm
Effective Tensile Space	600mm(can be heightened)	Displacement Measurement Accuracy	Within ±0.2%of indicated value

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Tensile Testing Machine Universal Testing Machine Tensile Strength Tester Tension Testing Machine

Product introduction

This equipment adopts an electronic control system. It drives the T-screw via a speed regulator and transmission mechanism to lift the load cell, thereby conducting tensile or compression tests. The force value is output by the sensor and displayed in real time. It features simple operation and is suitable for product quality control on production lines.

Electronic control system

Precise force detection

Tensile & compression dual test

Easy operation

Comparison of similar product features

HS-10000N-D Tensile Testing Machine

Power	400W/750W (based on force range)
Voltage	AC 220V 50Hz
Equipment Weight	200kg
Equipment Size	12006301850mm
Maximum Load	1000kg
Test Speed	0.1-500mm/min
Force Measurement Accuracy	Within ±0.5% of indicated value
Effective Test Width	60mm
Effective Tensile Space	600mm(can be heightened)
Testing Machine Resolution
Displacement Measurement Accuracy	Within ±0.2%of indicated value
