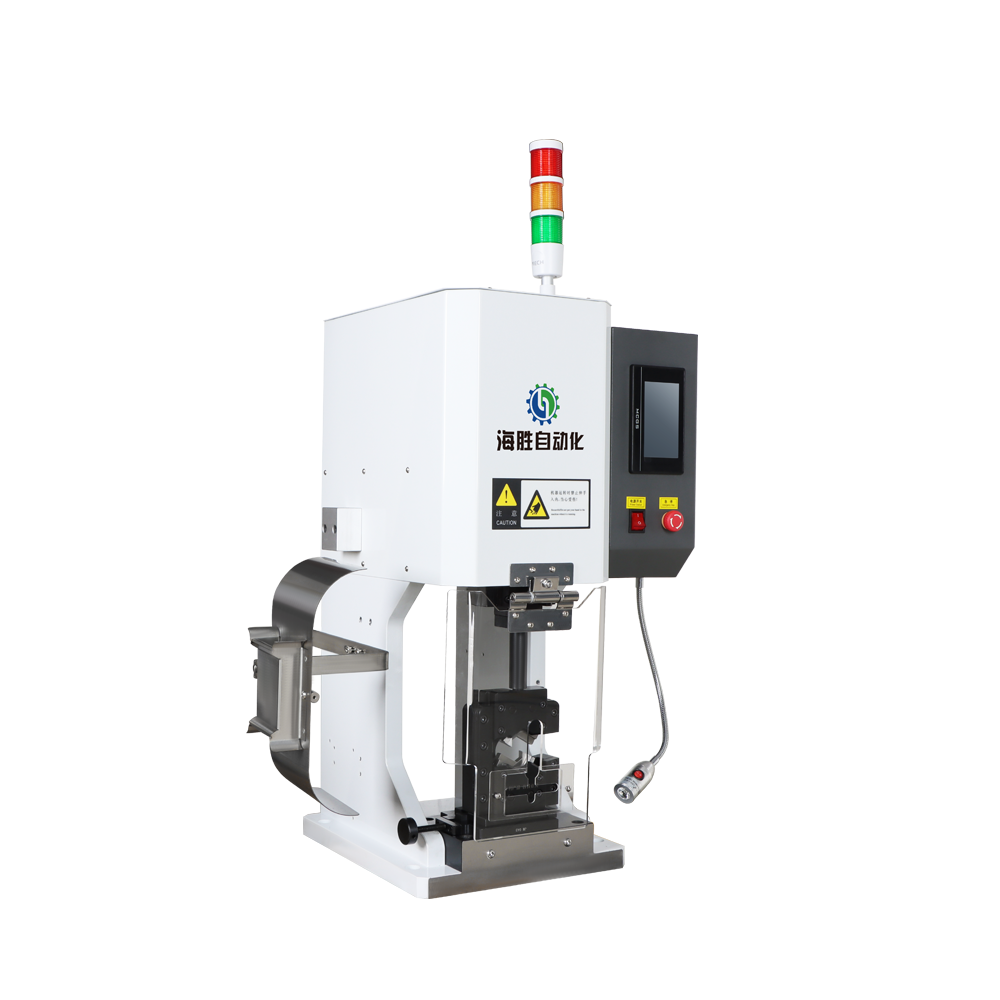

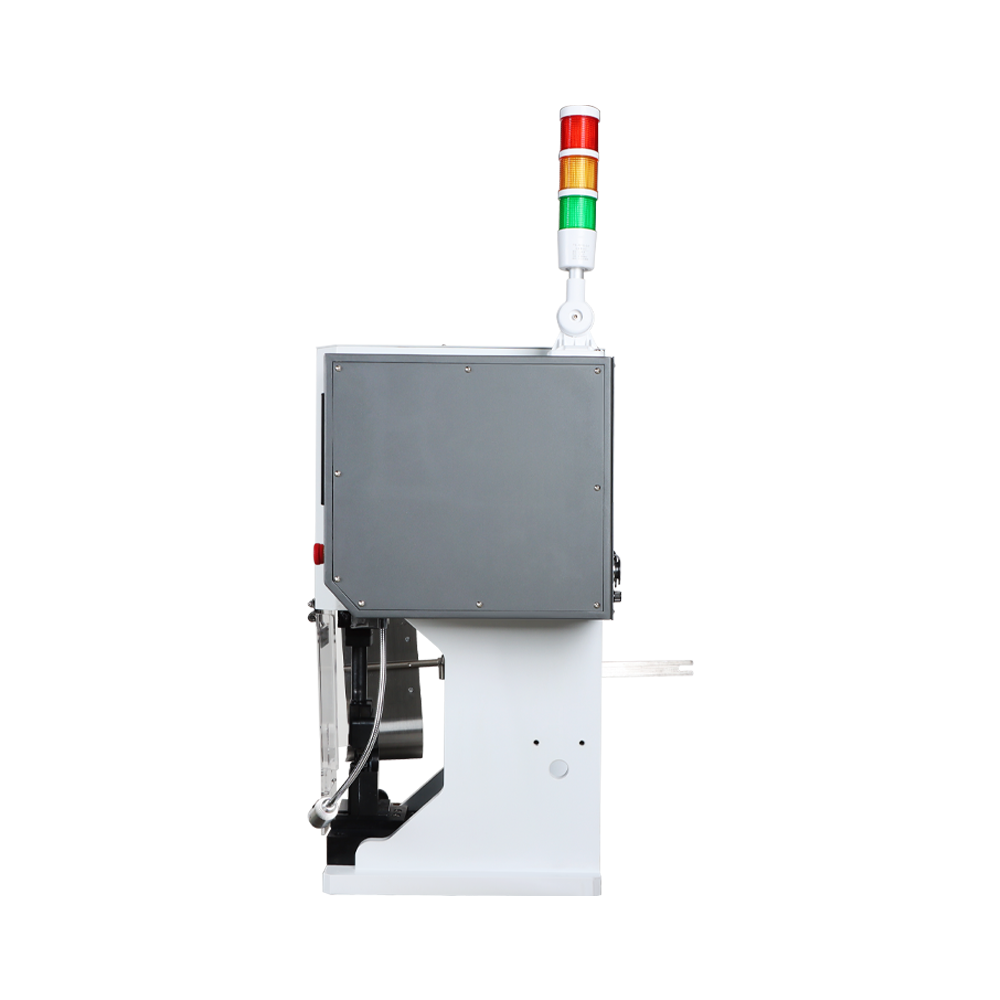

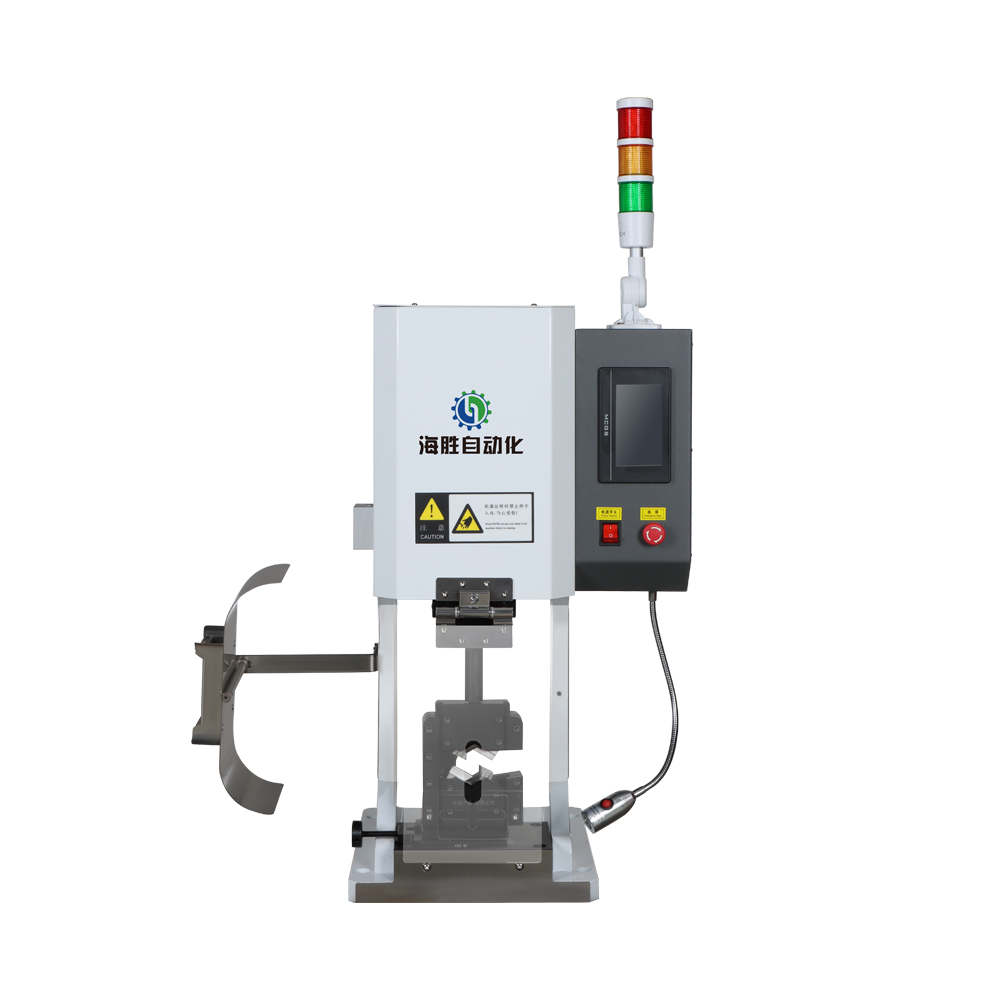

HS-ZSK8T Desktop CNC Servo Terminal Crimping Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Key Attributes

HS Code	8479819000	Power	2000W+400W
Voltage	AC 220V 50Hz	Equipment Weight	240kg
Equipment Size	420360845mm	Displayed	Industrial computer
Production Efficiency	500-1000pcs/h	Crimping Capacity	8T
Crimping Cable Range	0.3-10mm²	Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Walk-Mourked Pressure Sensor

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Product introduction

This equipment is equipped with an advanced fully digital control system.Once parameters are preset, it automatically calls up corresponding crimping data according to product specifications.It supports MES system connection to realize traceable operational data management.Built-in pressure sensors enable real-time monitoring of terminal crimping status.It also comes with hierarchical permission management and barcode scanning recognition functions.

Simple operation

High crimping accuracy

Low maintenance cost

Support for pressure detection

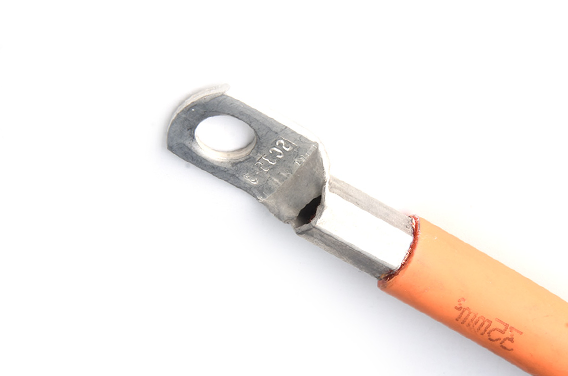

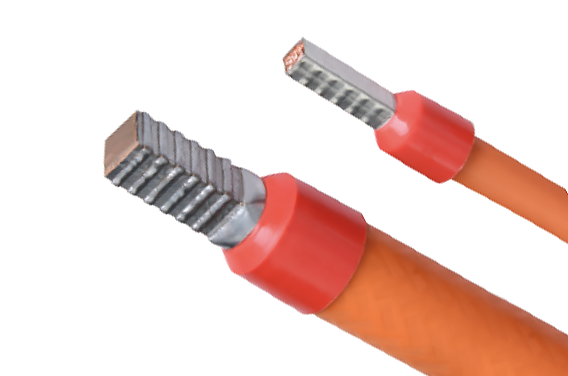

Sample Display

Comparison of similar product features

HS-ZSK8T Desktop CNC Servo Terminal Crimping Machine

Power	2000W+400W
Voltage	AC 220V 50Hz
Equipment Weight	240kg
Equipment Size	420360845mm
Crimping Capacity	8T
Crimping Cable Range	0.3-10mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Walk-Mourked Pressure Sensor
Production Efficiency	500-1000pcs/h
Displayed	Industrial computer

HS-ZSK4T Desktop CNC Servo Terminal Crimping Machine

Power	2000W+400W
Voltage	AC 220V 50Hz
Equipment Weight	280 kg
Equipment Size	380360710mm
Crimping Capacity	4T
Crimping Cable Range	0.3-6mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Pressure Sensor（Optional）
Production Efficiency	500-1000pcs/h
Displayed	Industrial computer

HS-ZSK20T Desktop CNC Servo Terminal Crimping Machine

Power	2000W+400W
Voltage	AC 220V 50Hz
Equipment Weight	270kg
Equipment Size	700600980mm
Crimping Capacity	20T
Crimping Cable Range	6-120mm²
Crimping Stroke	60 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	720pcs/h
Displayed	Industrial computer

Product Name

Power

Voltage

Equipment Weight

Equipment Size

Crimping Capacity

Crimping Cable Range

Crimping Stroke

Pressure Monitoring

Production Efficiency

Displayed

HS-ZSK8T Desktop CNC Servo Terminal Crimping Machine	HS-ZSK4T Desktop CNC Servo Terminal Crimping Machine	HS-ZSK20T Desktop CNC Servo Terminal Crimping Machine
2000W+400W	2000W+400W	2000W+400W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
240kg	280 kg	270kg
420360845mm	380360710mm	700600980mm
8T	4T	20T
0.3-10mm²	0.3-6mm²	6-120mm²
30/40 mm(Switchable）	30/40 mm(Switchable）	60 mm
Walk-Mourked Pressure Sensor	Pressure Sensor（Optional）	Baseplate Pressure Monitoring
500-1000pcs/h	500-1000pcs/h	720pcs/h
Industrial computer	Industrial computer	Industrial computer
