Intelligent Servo Terminal Crimping Machine

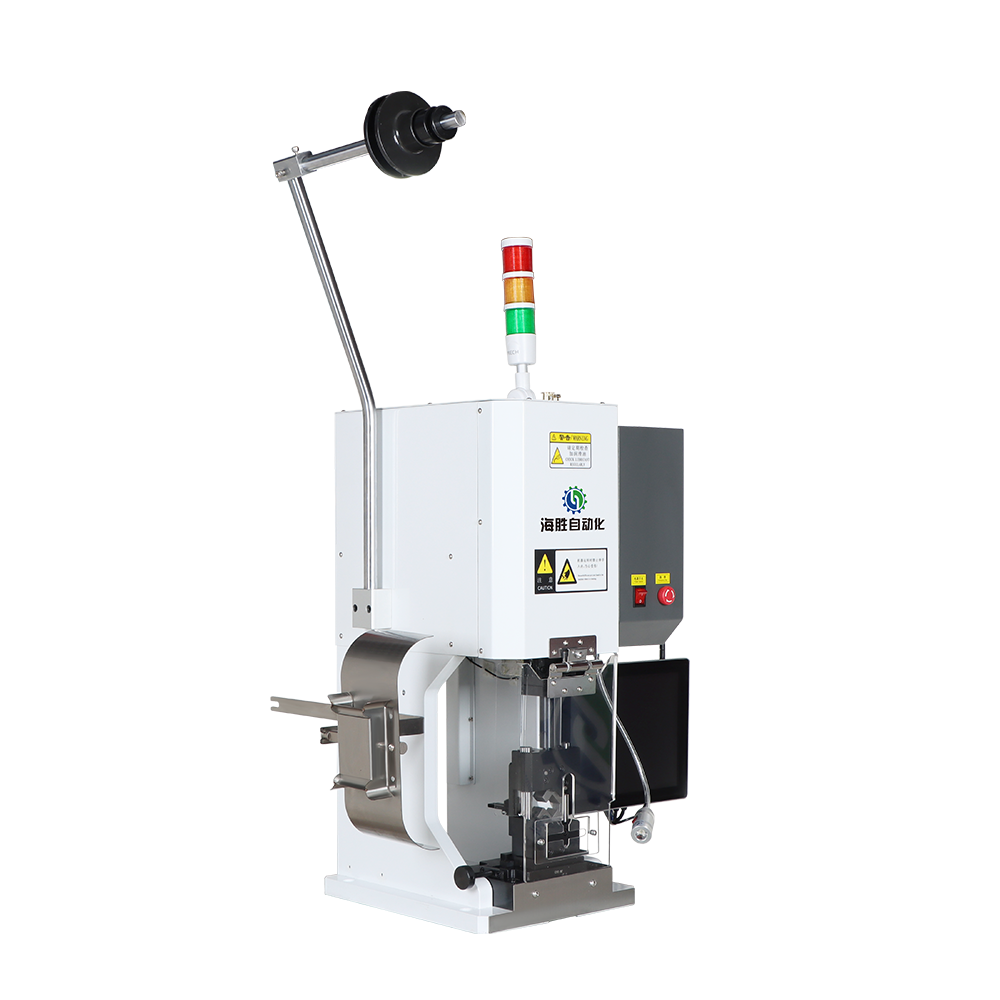

HS-ZSG4T Desktop Intelligent Servo Terminal Crimping Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Key Attributes

HS Code	8479819000	Power	2000W+400W
Voltage	AC 220V 50Hz	Equipment Weight	180kg
Equipment Size	400630760 mm	Displayed	Industrial computer
Production Efficiency	500-1000pcs/h	Crimping Capacity	4T
Crimping Cable Range	0.3-6mm²	Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Walk-Mourked Pressure Sensor

Application Scenarios

Widely applied to high-voltage harness processing of AC/DC charging guns, new energy vehicles, energy storage, photovoltaics and rail transit. The full traceable crimping quality meets strict automotive manufacturing standards.

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Product introduction

Compatible with large wires, featuring full-process pressure monitoring, MES traceability and QR code management. It provides precise hexagonal/four-point/quadrilateral crimping and targets new energy high-voltage harness assembly lines.

Simple operation

High crimping accuracy

Low maintenance cost

Support for pressure detection

Sample Display

Comparison of similar product features

HS-ZSG4T Desktop Intelligent Servo Terminal Crimping Machine

Power	2000W+400W
Voltage	AC 220V 50Hz
Equipment Weight	180kg
Equipment Size	400630760 mm
Crimping Capacity	4T
Crimping Cable Range	0.3-6mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Walk-Mourked Pressure Sensor
Production Efficiency	500-1000pcs/h
Displayed	Industrial computer

HS-ZSG8T Desktop Intelligent Servo Terminal Crimping Machine

Power	2000W+400W
Voltage	AC 220V 50Hz
Equipment Weight	240kg
Equipment Size	420670845mm
Crimping Capacity	8T
Crimping Cable Range	0.3-10mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Walk-Mourked Pressure Sensor
Production Efficiency	500-1000pcs/h
Displayed	Industrial computer

HS-ZSG20T Desktop Intelligent Servo Terminal Crimping Machine

Power	2200W
Voltage	AC 220V 50Hz
Equipment Weight	270kg
Equipment Size	700600980mm
Crimping Capacity	20T
Crimping Cable Range	6-120mm²
Crimping Stroke	60mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	720pcs/h
Displayed	Industrial computer

Product Name

Power

Voltage

Equipment Weight

Equipment Size

Crimping Capacity

Crimping Cable Range

Crimping Stroke

Pressure Monitoring

Production Efficiency

Displayed

HS-ZSG4T Desktop Intelligent Servo Terminal Crimping Machine	HS-ZSG8T Desktop Intelligent Servo Terminal Crimping Machine	HS-ZSG20T Desktop Intelligent Servo Terminal Crimping Machine
2000W+400W	2000W+400W	2200W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
180kg	240kg	270kg
400630760 mm	420670845mm	700600980mm
4T	8T	20T
0.3-6mm²	0.3-10mm²	6-120mm²
30/40 mm(Switchable）	30/40 mm(Switchable）	60mm
Walk-Mourked Pressure Sensor	Walk-Mourked Pressure Sensor	Baseplate Pressure Monitoring
500-1000pcs/h	500-1000pcs/h	720pcs/h
Industrial computer	Industrial computer	Industrial computer
