Shield Braid Cutting and Folding Back Machine

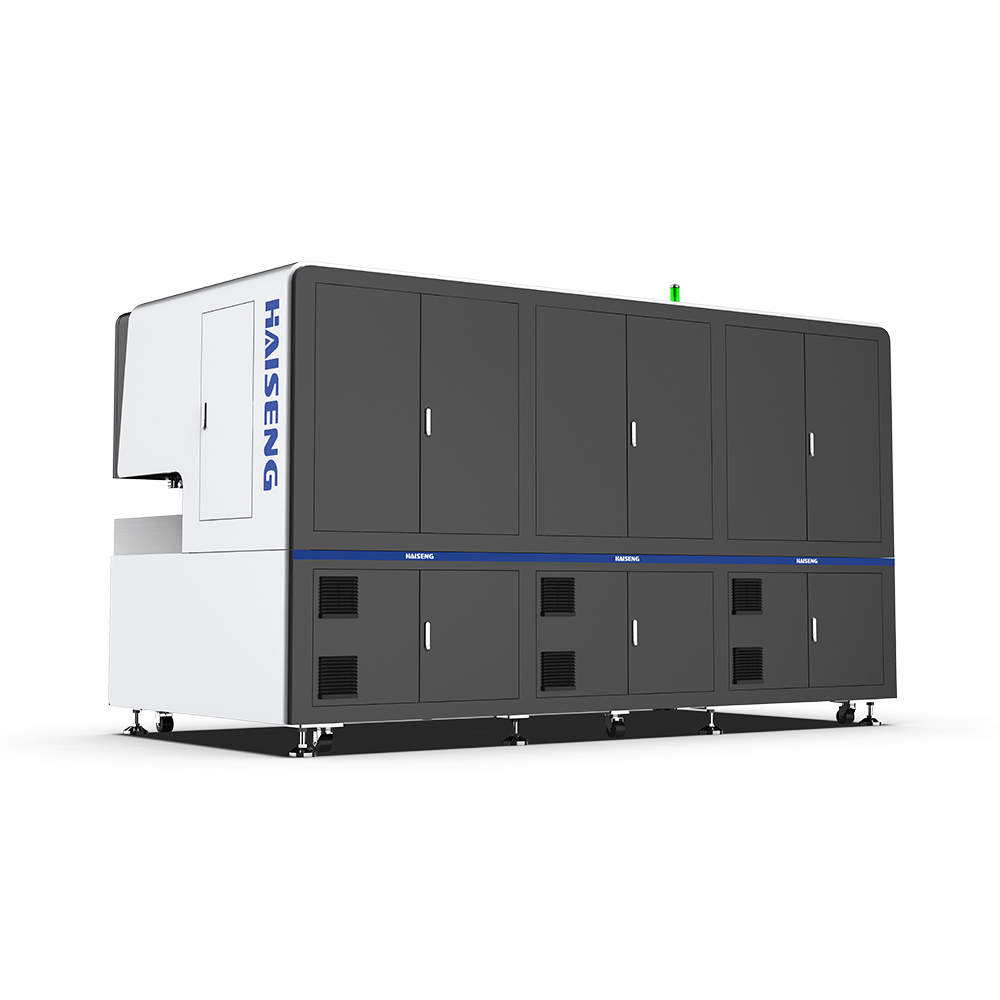

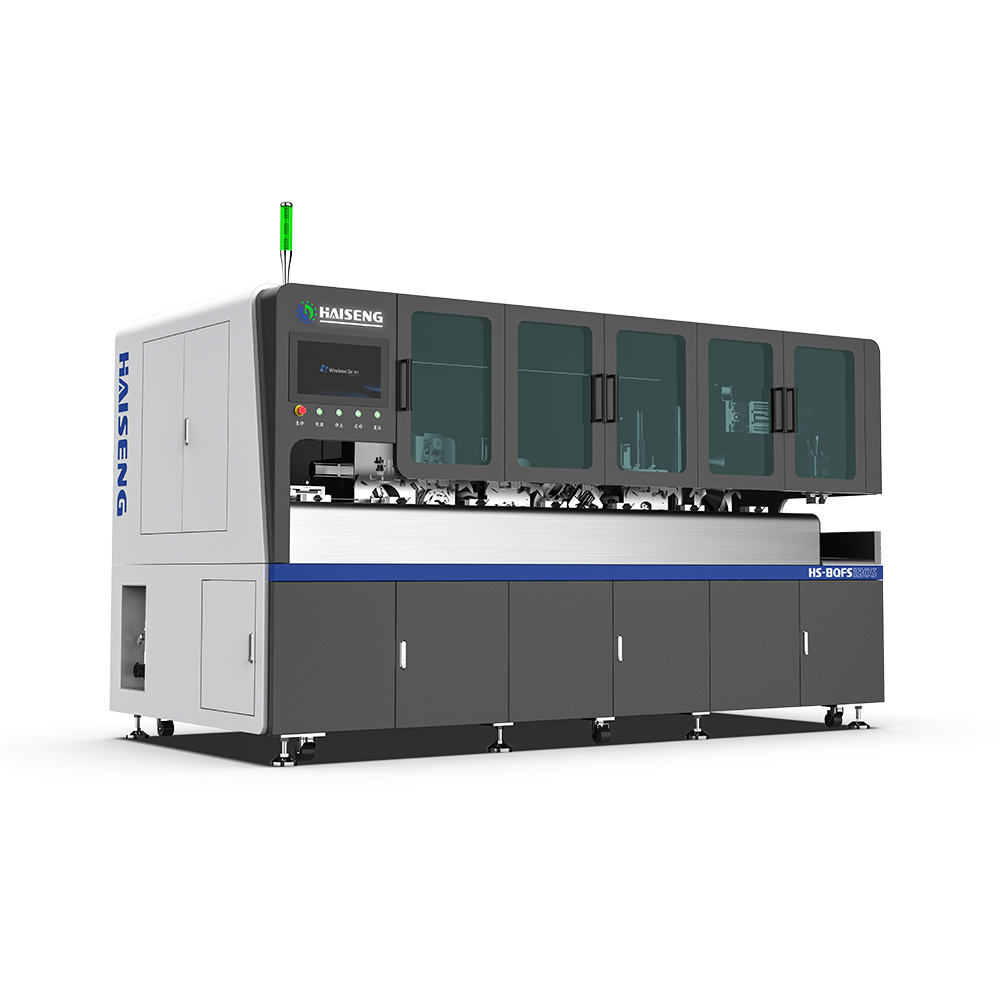

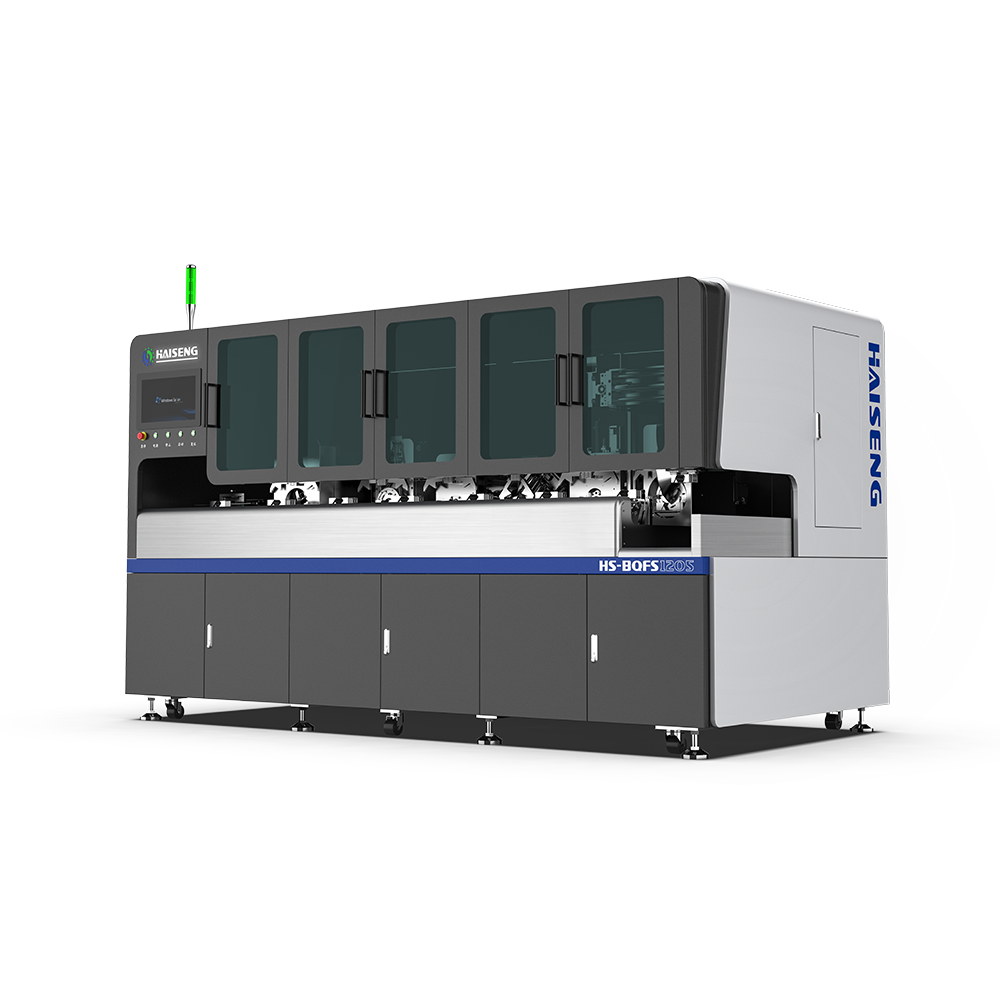

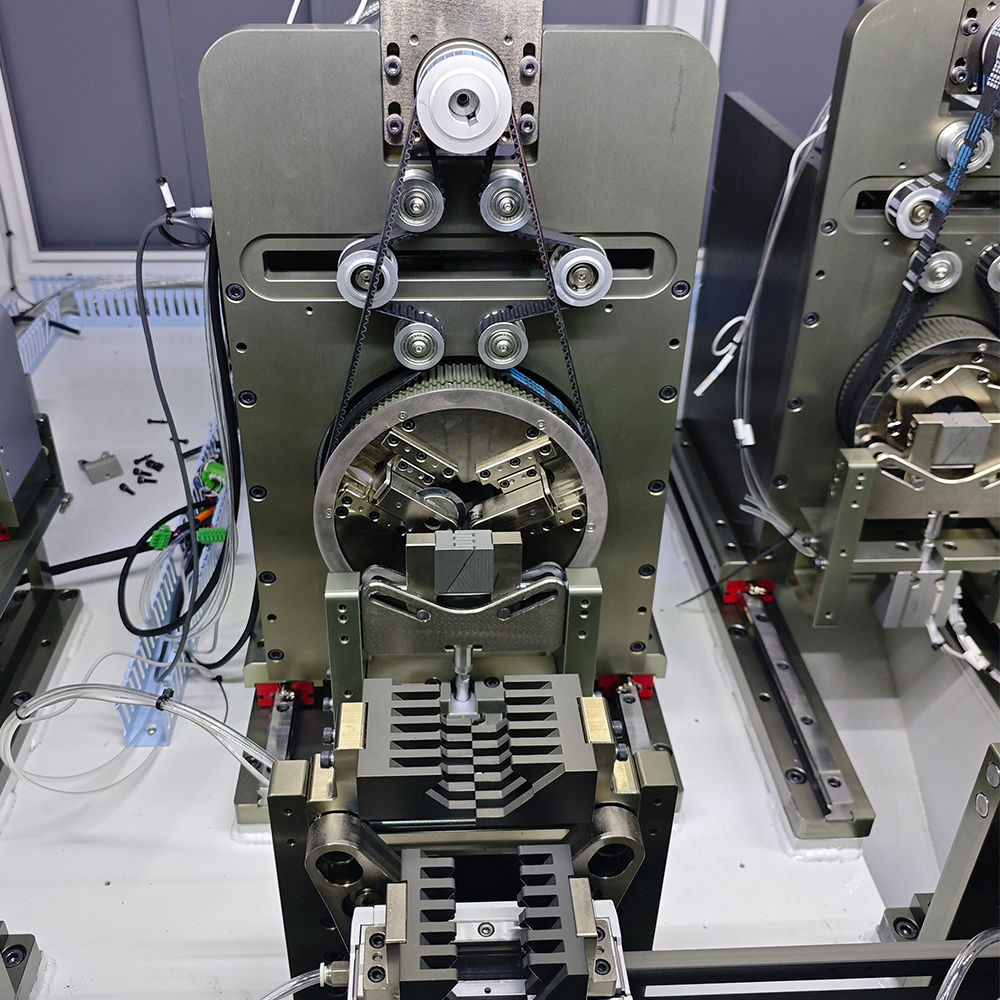

HS-BQFS120D Multi-Station Shielding Screen Processing Equipment

HS-BQFS120D Multi-Station Shielding Screen Processing Equipment

Service hotline

+8618938694287

Add to the wish list

Product consultation

Shield Braid Cutting & Folding Back Machine Cutting & Folding Back Machine Shielding Mesh Cutting & Flipping Machine shielding braid cutting & flipping

Key Attributes

HS Code	8479899990	Power	12500W
Voltage	AC 220V 50Hz 32A	Equipment Weight	1600kg
Equipment Size	3000mm1400mm1750mm	Displayed	15.6-inch industrial computer
Production Efficiency	25s/pc	Cutting & Stripping Processing Range	2.5-120mm²
Stripping Length	5-150mm	Shield Cutting Length	5-30mm
Equipment Functions	Outer insulation stripping, shield braid & foil removal, combing, folding back, inner insulation stripping

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Shield Braid Cutting & Folding Back Machine Cutting & Folding Back Machine Shielding Mesh Cutting & Flipping Machine shielding braid cutting & flipping

Product introduction

This is a six-in-one automatic processing equipment specially designed for new energy high-voltage wiring harnesses. It integrates six core processes: outer skin peeling, shielding mesh treatment (cutting, breaking and flaring) and inner insulation peeling. It features no damage to the inner insulation layer, high efficiency, high precision and easy operation, and supports independent operation of each process.

New energy cable dedicated

Reliable processing quality

Inner insulation zero damage

Independent process control

6-in-one integrated processing

High efficiency & precision

Easy operation

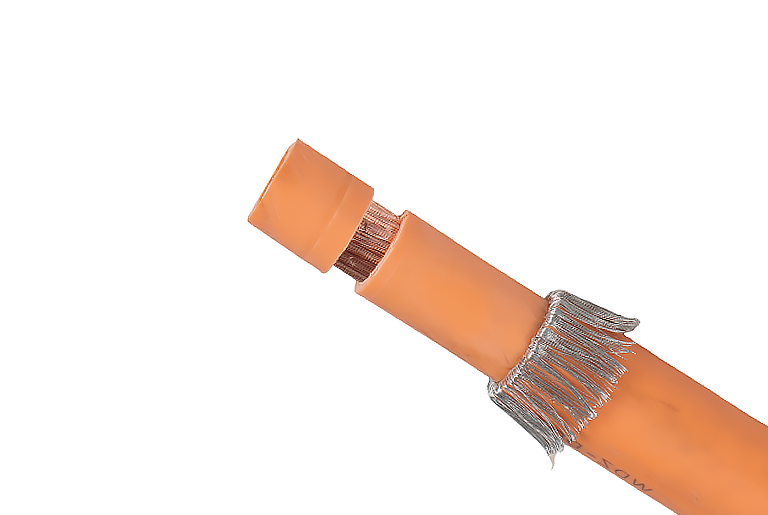

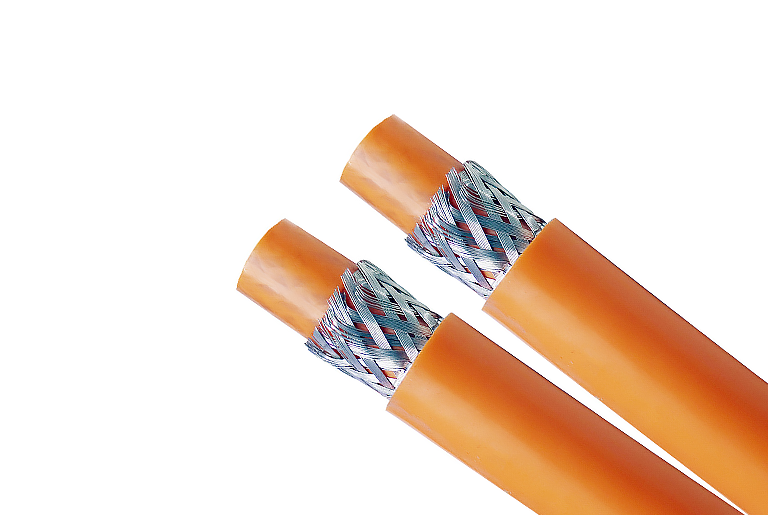

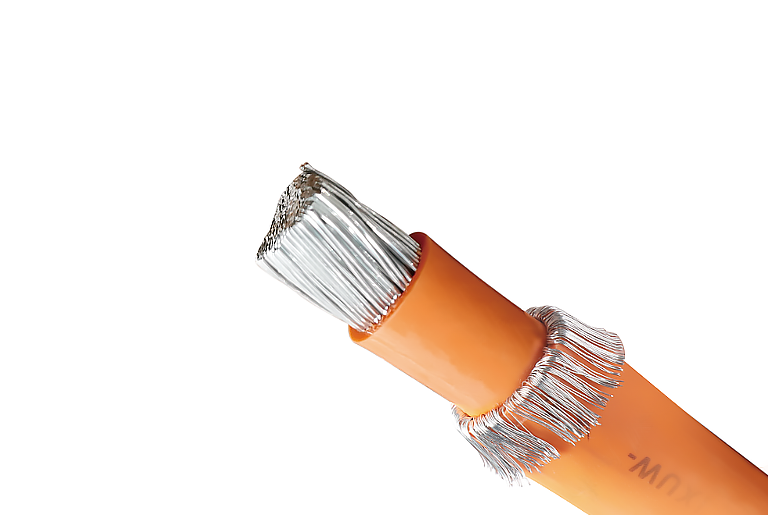

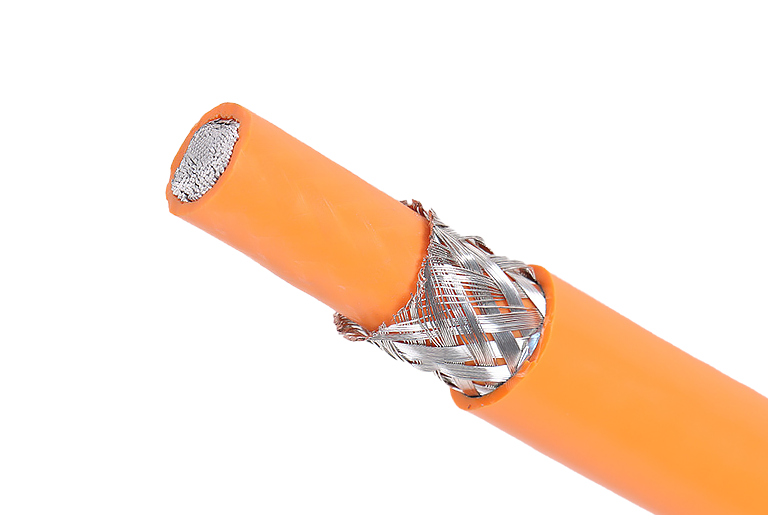

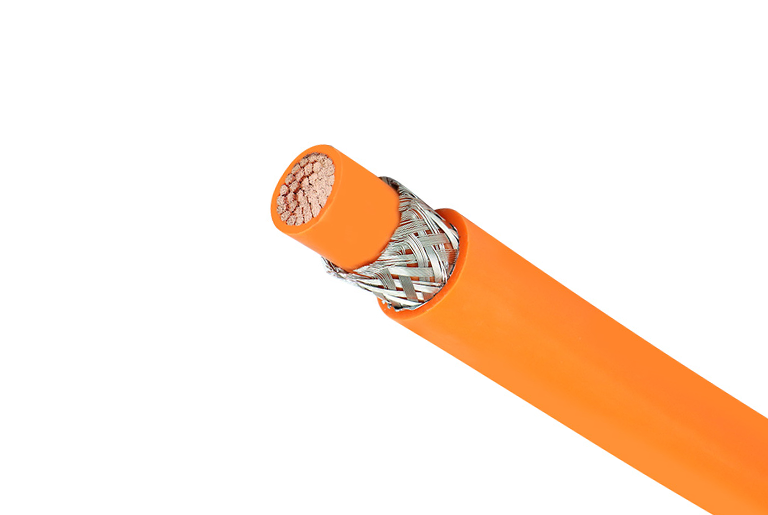

Sample Display

Comparison of similar product features

HS-BQFS120D Multi-Station Shielding Screen Processing Equipment

Voltage	AC 220V 50Hz 32A
Power	12500W
Equipment Weight	1600kg
Equipment Size	3000mm1400mm1750mm
Cutting & Stripping Processing Range	2.5-120mm²
Stripping Length	5-150mm
Displayed	15.6-inch industrial computer
Production Efficiency	25s/pc
Shield Cutting Length	5-30mm

HS-QF120 Automatic Stripping, Cutting, Flipping and Brushing Shield Mesh Machine

Voltage	AC 220V 50Hz
Power	1500W
Equipment Weight	Approx65KG
Equipment Size	39010001200 mm
Cutting & Stripping Processing Range	6-120mm²
Stripping Length
Displayed	7-inch touch screen
Production Efficiency	12 s/pc
Shield Cutting Length	5-20mm(Customizable)

HS-QFS150Y Automatic Stripping, Cutting, Flipping and Brushing Shield Mesh Machine

Voltage	AC 220V 50Hz 32A
Power	5500W
Equipment Weight	Approx 450KG
Equipment Size	14109001550 mm
Cutting & Stripping Processing Range	4-150mm²
Stripping Length
Displayed	15.6-inch industrial computer
Production Efficiency	30s/pc
Shield Cutting Length	5-30mm

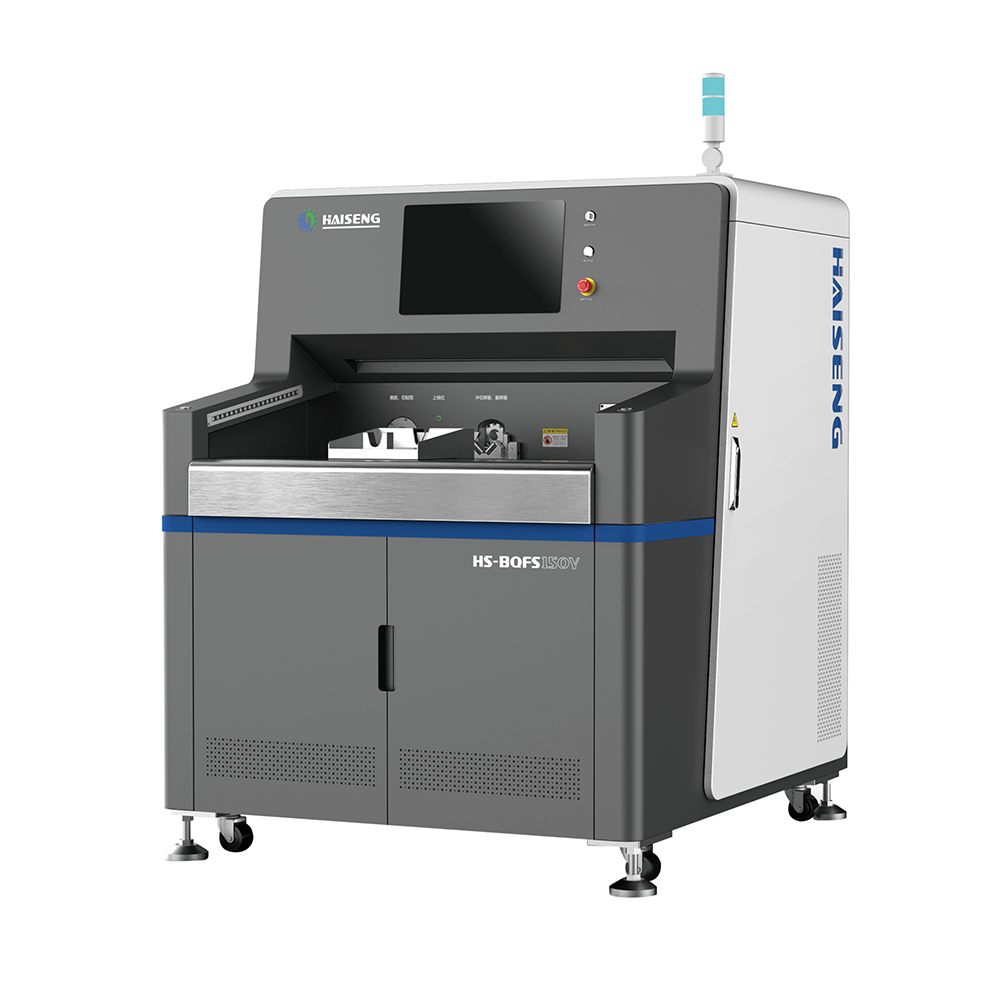

HS-BQF150Y Automatic Stripping, Cutting, Turning and Shielding Mesh Brushing Machine

Voltage	AC 220V 50Hz 32A
Power	7000W
Equipment Weight	Approx850kg
Equipment Size	130011801700mm
Cutting & Stripping Processing Range	4-150mm²
Stripping Length	5-200mm
Displayed	15.6-inch industrial computer
Production Efficiency	35s/pc
Shield Cutting Length	5-30mm

Product Name

Voltage

Power

Equipment Weight

Equipment Size

Cutting & Stripping Processing Range

Stripping Length

Displayed

Production Efficiency

Shield Cutting Length

HS-BQFS120D Multi-Station Shielding Screen Processing Equipment	HS-QF120 Automatic Stripping, Cutting, Flipping and Brushing Shield Mesh Machine	HS-QFS150Y Automatic Stripping, Cutting, Flipping and Brushing Shield Mesh Machine	HS-BQF150Y Automatic Stripping, Cutting, Turning and Shielding Mesh Brushing Machine
AC 220V 50Hz 32A	AC 220V 50Hz	AC 220V 50Hz 32A	AC 220V 50Hz 32A
12500W	1500W	5500W	7000W
1600kg	Approx65KG	Approx 450KG	Approx850kg
3000mm1400mm1750mm	39010001200 mm	14109001550 mm	130011801700mm
2.5-120mm²	6-120mm²	4-150mm²	4-150mm²
5-150mm			5-200mm
15.6-inch industrial computer	7-inch touch screen	15.6-inch industrial computer	15.6-inch industrial computer
25s/pc	12 s/pc	30s/pc	35s/pc
5-30mm	5-20mm(Customizable)	5-30mm	5-30mm
