Terminal Cross-section Analyzer

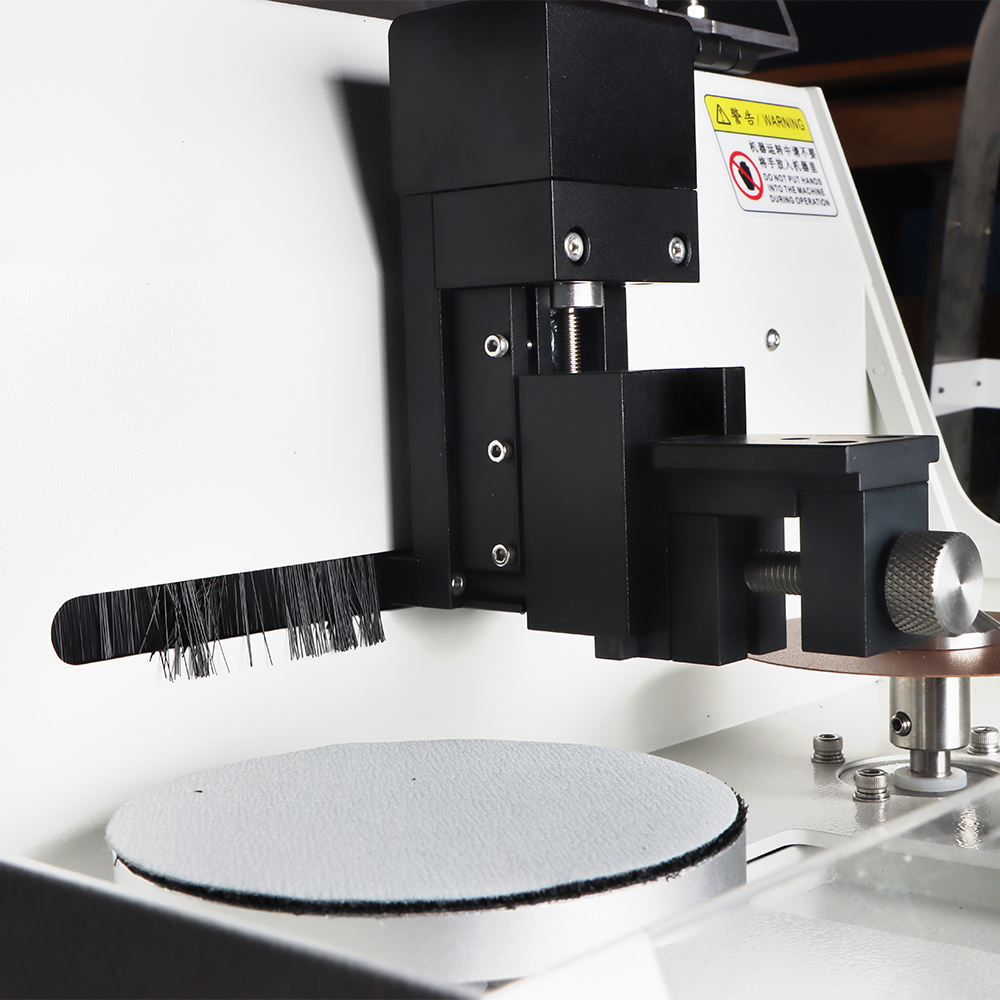

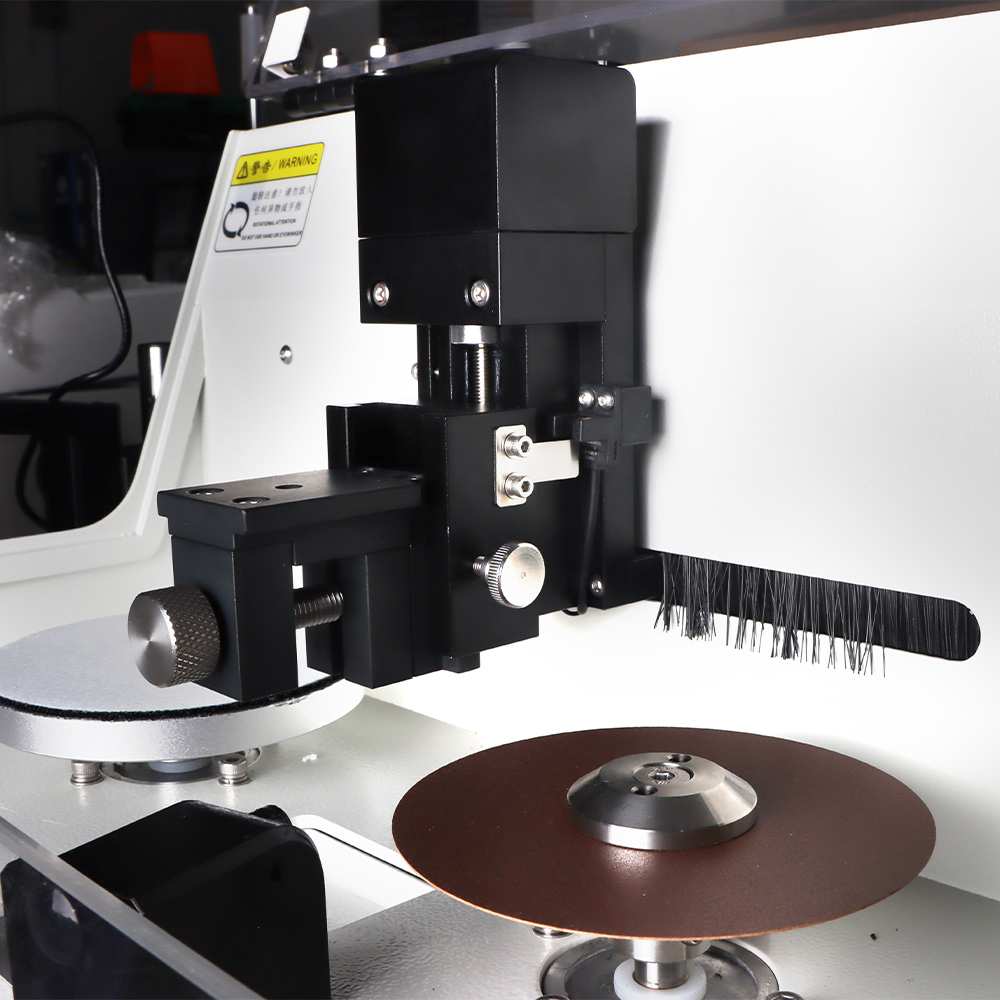

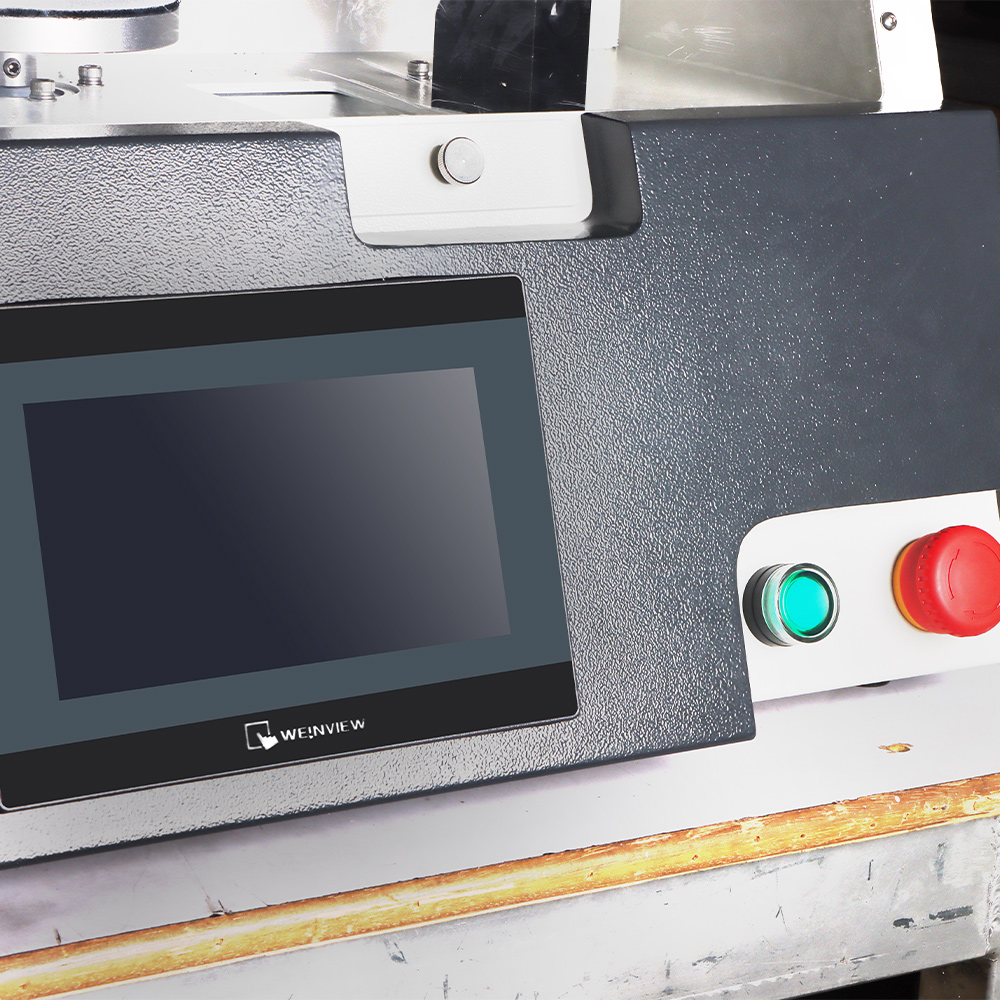

HS-Section4 Terminal Cross-section Analyzer

Service hotline

+8618938694287

Add to the wish list

Product consultation

Terminal Cross Section Analyzer Wire Harness Cross Section Tester

Key Attributes

HS Code	9024800000	Power	360W
Voltage	AC 220V 50Hz	Equipment Weight	24kg
Equipment Size	500350350mm	Scope of Application	0.01-70mm²
Measurement Accuracy	0.001mm

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Terminal Cross Section Analyzer Wire Harness Cross Section Tester

Product introduction

Easy operation, high-quality image acquisition system, accurate measurement analysis for the production escort

Easy operation

High-quality image acquisition system

Accurate measurement analysis

Escort production

Comparison of similar product features

HS-Section4 Terminal Cross-section Analyzer

Power	360W
Voltage	AC 220V 50Hz
Equipment Weight	24kg
Equipment Size	500350350mm
Measurement Accuracy	0.001mm
Scope of Application	0.01-70mm²

HS-Section Terminal Cross-section Analyzer

Power	360W
Voltage	AC 220V 50Hz
Equipment Weight	24kg
Equipment Size	520340330mm
Measurement Accuracy	0.001mm
Scope of Application	0.01 - 120mm²

HS-Section6 Terminal Cross-section Analyzer

Power	2500W
Voltage	AC 220V 50Hz
Equipment Weight	200kg
Equipment Size	1800750900mm
Measurement Accuracy	0.001mm
Scope of Application	0.01 - 200mm²

Product Name

Power

Voltage

Equipment Weight

Equipment Size

Measurement Accuracy

Scope of Application

HS-Section4 Terminal Cross-section Analyzer	HS-Section Terminal Cross-section Analyzer	HS-Section6 Terminal Cross-section Analyzer
360W	360W	2500W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
24kg	24kg	200kg
500350350mm	520340330mm	1800750900mm
0.001mm	0.001mm	0.001mm
0.01-70mm²	0.01 - 120mm²	0.01 - 200mm²
