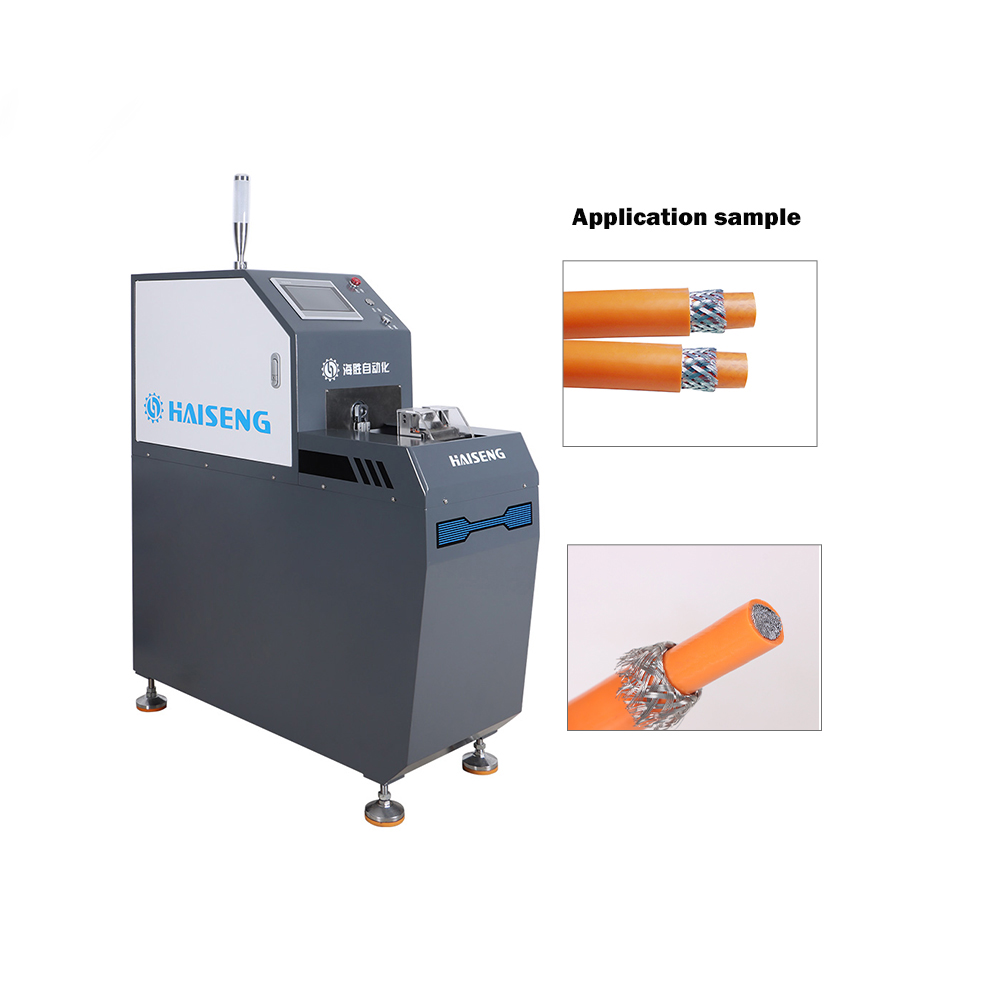

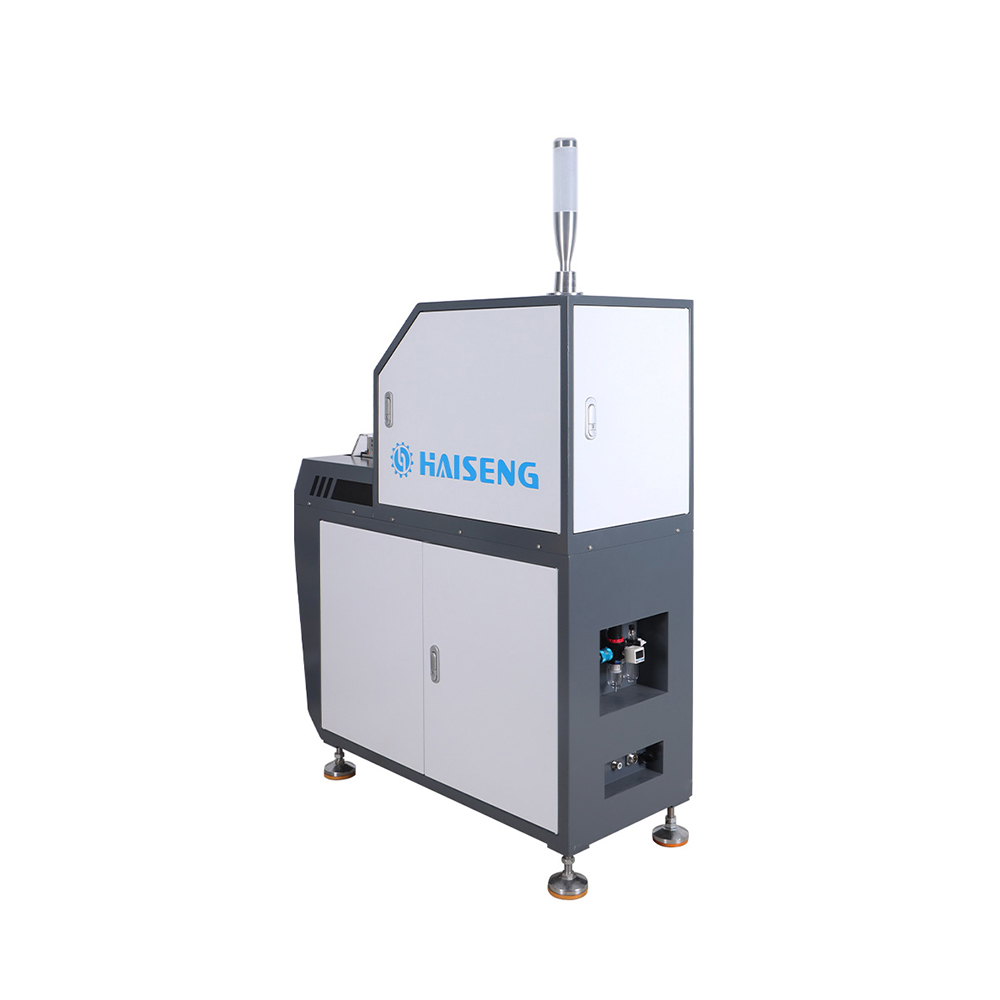

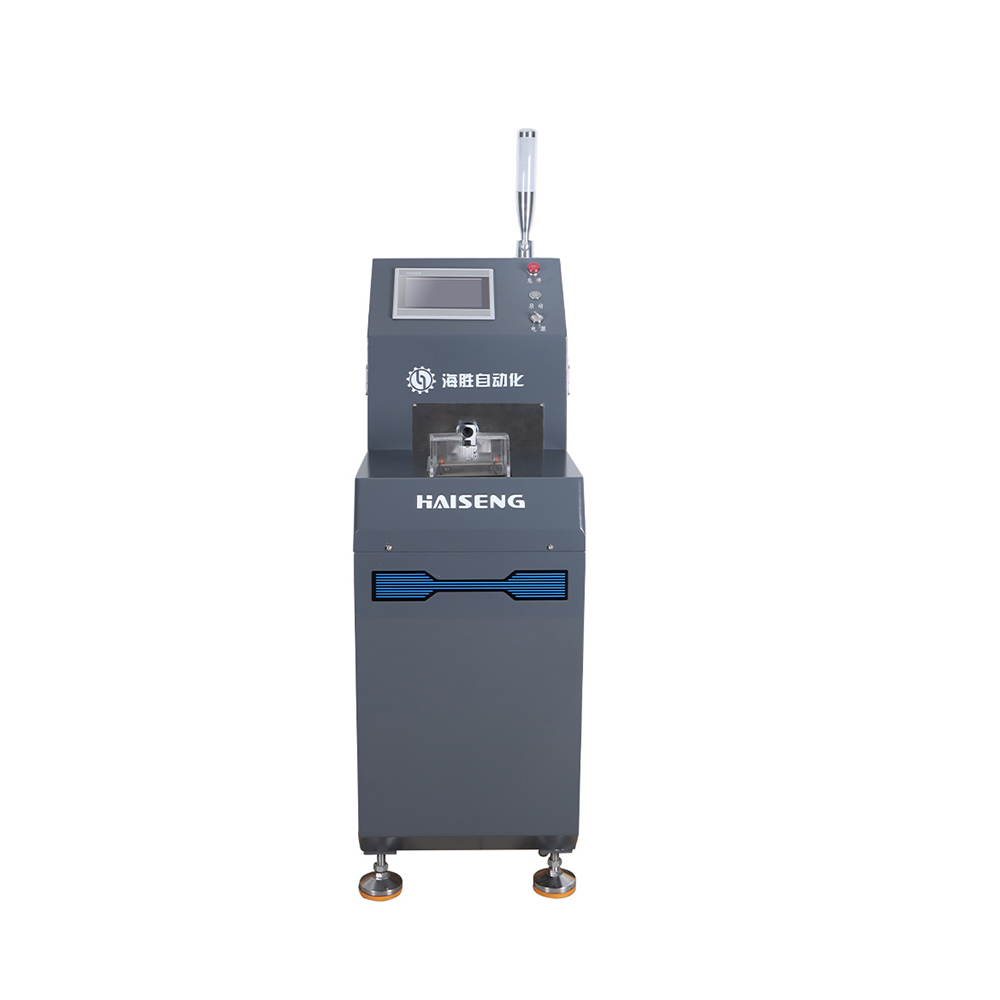

HS‑QF120 automatic shield mesh processing machine equipped with 7‑inch touch screen. Approx 65kg weight,cycle time 12 seconds per piece,processes 6‑120mm² wires,supports customizable 5‑20mm shield cutting length,realizes automatic shield cutting and folding for new‑energy wire harness.

HS‑BQFS120D multi‑station shielding screen processing equipment equipped with 15.6‑inch industrial computer. 1600kg heavy‑duty industrial design,cycle time 25 seconds per piece,handles 2.5‑120mm² cables. It completes full‑process operations including outer insulation stripping,shield braid & foil removal,combing,folding back and inner insulation stripping for new‑energy wire harness.

HS‑BQF150Y automatic shielding mesh brushing machine is equipped with 15.6‑inch industrial computer. Approx 850kg equipment weight,cycle time 35 seconds per piece,processes 4‑150mm² cables with stripping length 5‑200mm. It completes full‑process operations including outer insulation stripping,shield braid & foil removal,combing,folding back and inner insulation stripping for new‑energy wire harness.

HS‑BQF150Y automatic shielding mesh brushing machine adopts 15.6‑inch industrial computer. 850kg equipment weight,cycle time 35 seconds per piece,processes 4‑150mm² cables with stripping length 5‑200 mm. It performs outer sheath stripping,aluminum foil cutting,shield mesh cutting/folding and inner sheath stripping for new‑energy wire harness.
