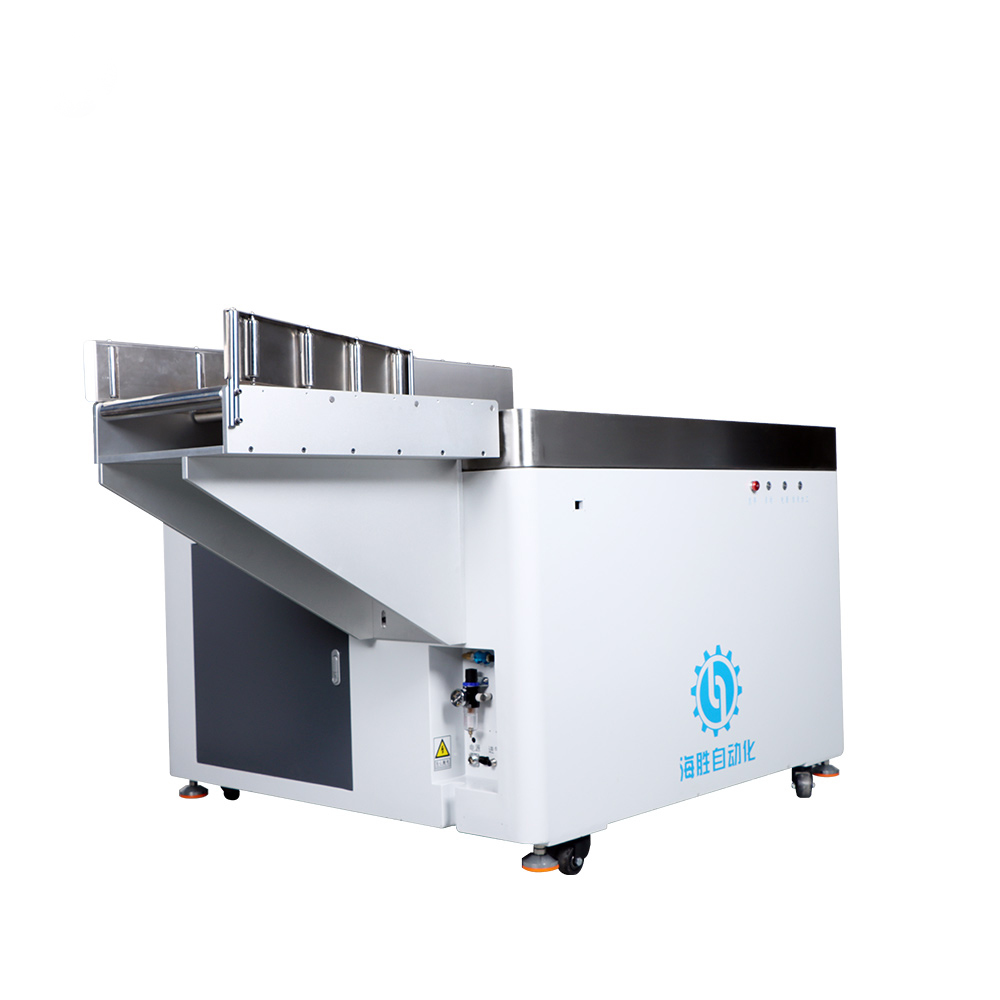

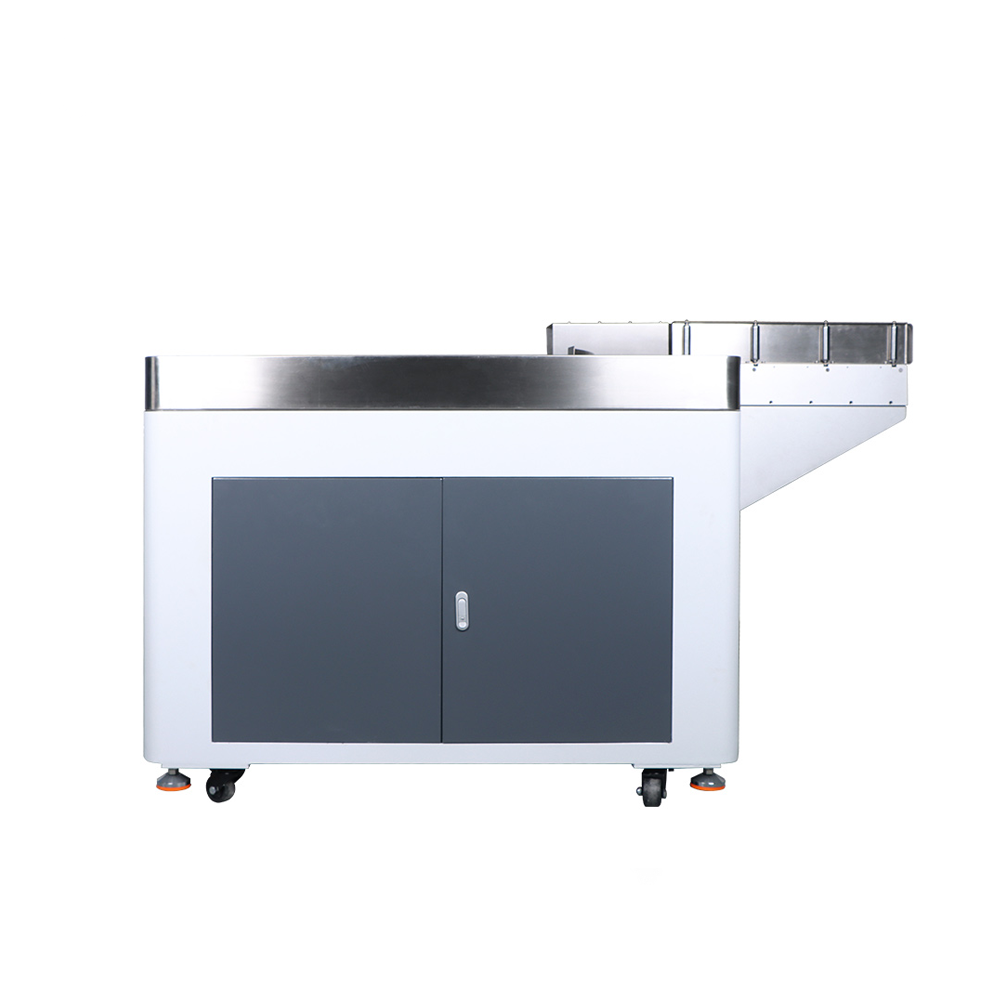

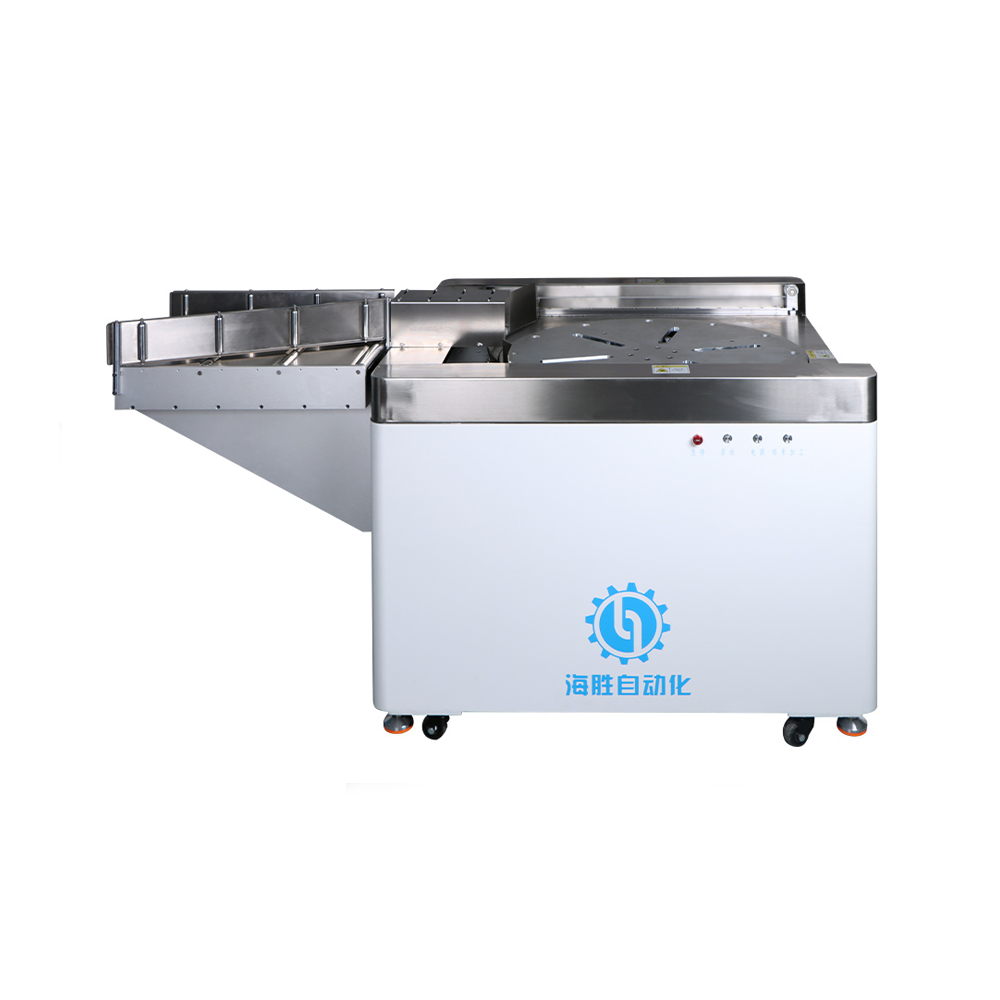

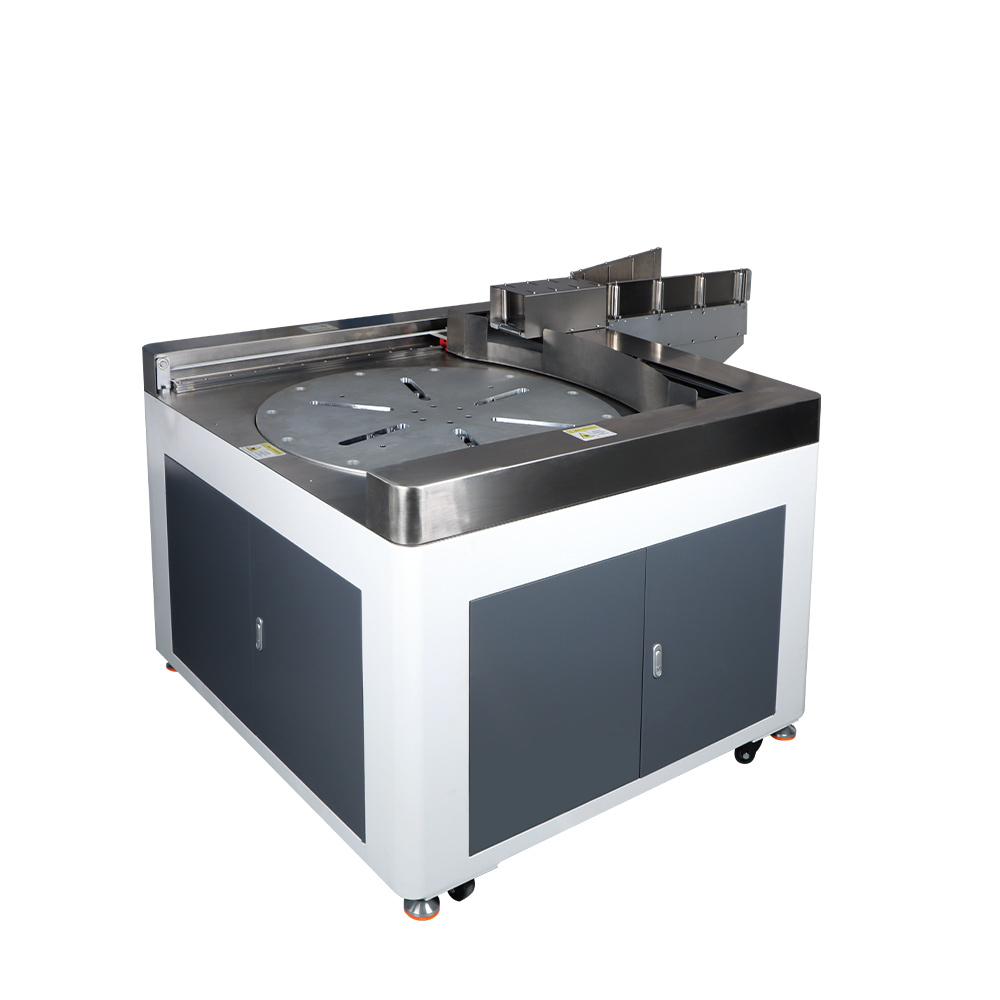

HS-1000T Wire Take-up Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Wire Take-up Machine Automatic Wire Take-up Machine Cable Take-up Machine

Key Attributes

HS Code	8479899990	Power	2000W
Voltage	AC 220V 50Hz	Equipment Weight	200kg
Equipment Size	138020951180mm	Applicable Wire Diameter	8-50mm
Shortest Winding Length	More than 3m	Longest Winding Length	Within 40m for 10 - 50mm² multi-strand flexible wire; within 20m for 70 - 120mm² multi-strand flexible wire
Pipe Diameter	52mm

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Wire Take-up Machine Automatic Wire Take-up Machine Cable Take-up Machine

Product introduction

Designed for new energy high-voltage wiring harnesses, this take-up machine offers broad adaptability, adjustable reels and flexible length options to accommodate various production requirements. It delivers stable low-noise operation, convenient maintenance and reliable cable insulation protection, enabling seamless connection with upstream harness processing equipment.

Wide compatibility

Adjustable take-up reel range

Stable operation & compact structure

Easy operation & simple maintenance

Cable insulation protection

Comparison of similar product features

HS-1000T Wire Take-up Machine

Power	2000W
Voltage	AC 220V 50Hz
Shortest Winding Length	More than 3m
Longest Winding Length	Within 40m for 10 - 50mm² multi-strand flexible wire; within 20m for 70 - 120mm² multi-strand flexible wire
Pipe Diameter	52mm
Inner Take-up Diameter
Maximum Outer Take-up Diameter
Applicable Wire Diameter	8-50mm

HS-1000 Wire Take-up Machine

Power	1000W
Voltage	AC 220V 50Hz
Shortest Winding Length	More than 3m
Longest Winding Length	Within 40m for 10 - 50mm² multi-strand flexible wire; within 20m for 70 - 120mm² multi-strand flexible wire
Pipe Diameter	47mm
Inner Take-up Diameter	220 - 470mm
Maximum Outer Take-up Diameter	900mm
Applicable Wire Diameter	10 - 45mm

HS-600 Wire Take-up Machine

Power	1000W
Voltage	AC 220V 50Hz
Shortest Winding Length	More than 1m
Longest Winding Length	10-120mm ² multiple flexible wire, within 20m
Pipe Diameter	28mm
Inner Take-up Diameter	110-270mm
Maximum Outer Take-up Diameter	550mm
Applicable Wire Diameter	6-25mm

Product Name

Power

Voltage

Shortest Winding Length

Longest Winding Length

Pipe Diameter

Inner Take-up Diameter

Maximum Outer Take-up Diameter

Applicable Wire Diameter

HS-1000T Wire Take-up Machine	HS-1000 Wire Take-up Machine	HS-600 Wire Take-up Machine
2000W	1000W	1000W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
More than 3m	More than 3m	More than 1m
Within 40m for 10 - 50mm² multi-strand flexible wire; within 20m for 70 - 120mm² multi-strand flexible wire	Within 40m for 10 - 50mm² multi-strand flexible wire; within 20m for 70 - 120mm² multi-strand flexible wire	10-120mm ² multiple flexible wire, within 20m
52mm	47mm	28mm
	220 - 470mm	110-270mm
	900mm	550mm
8-50mm	10 - 45mm	6-25mm
