Terminal Cross-section Analyzer

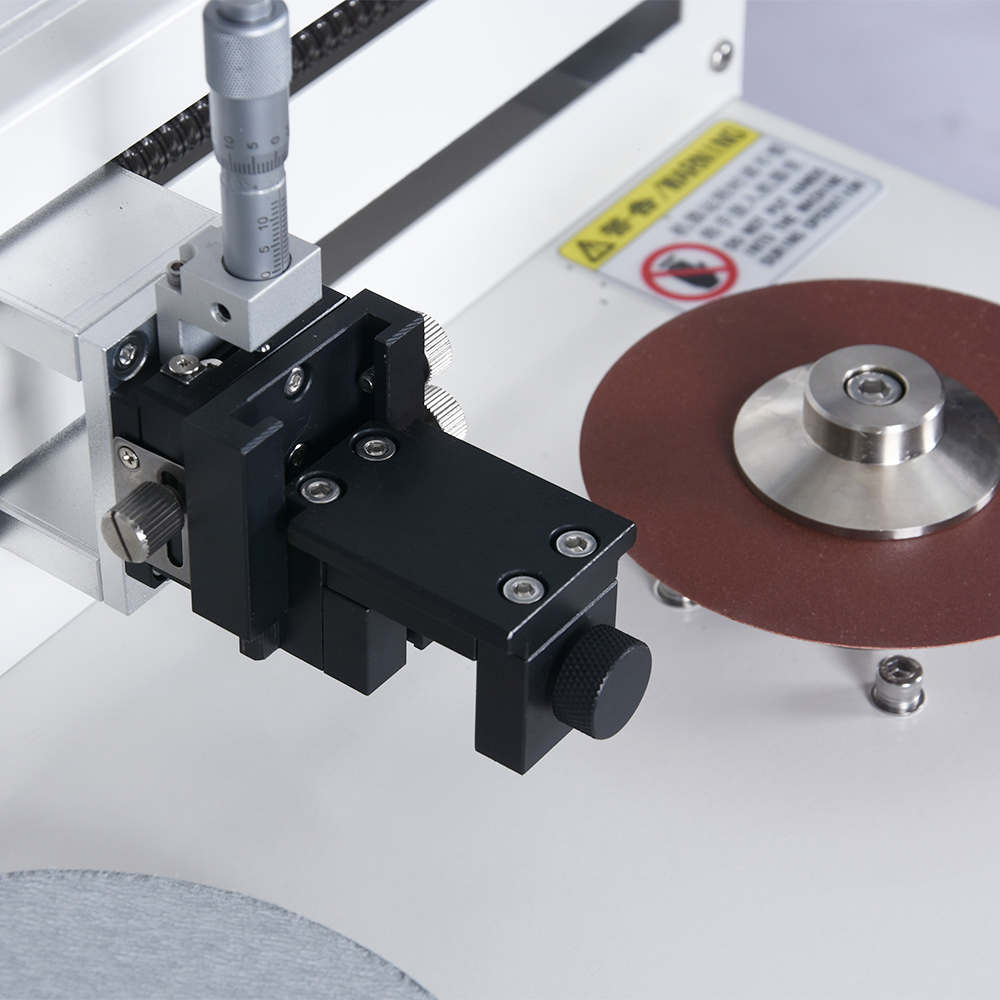

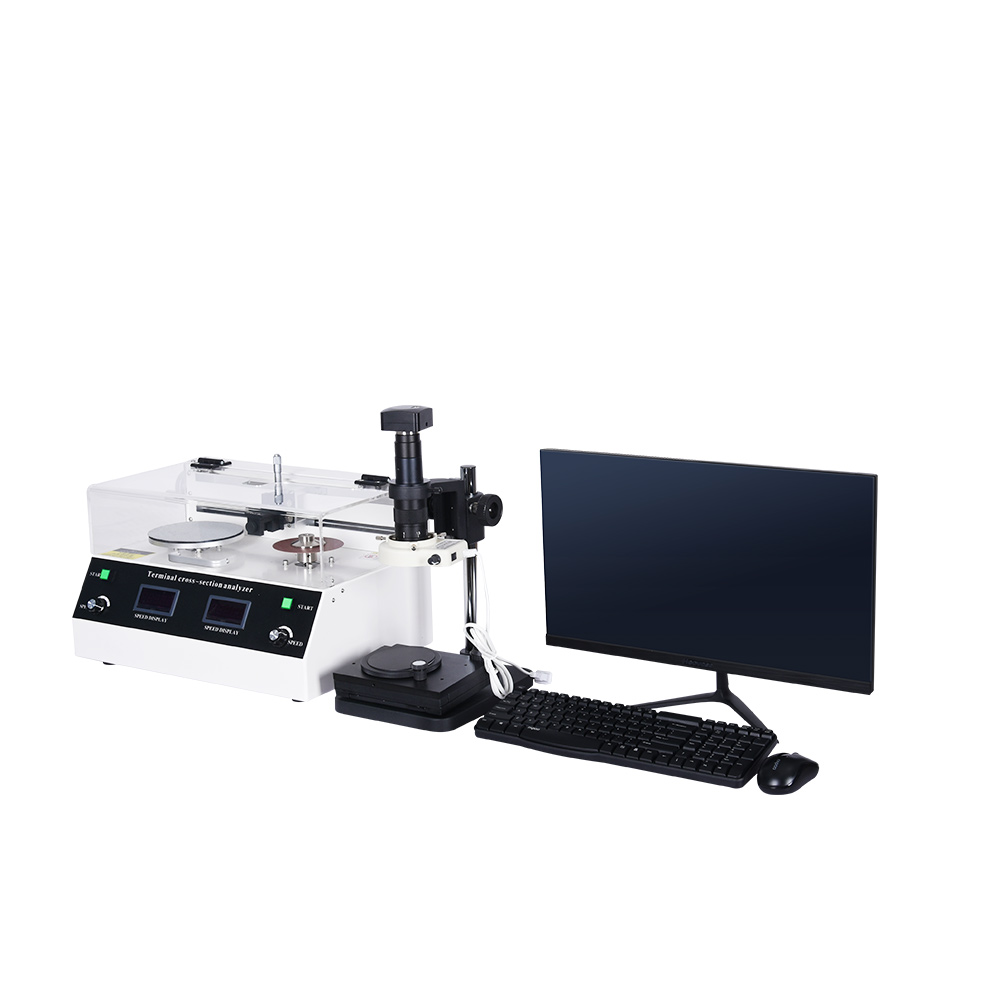

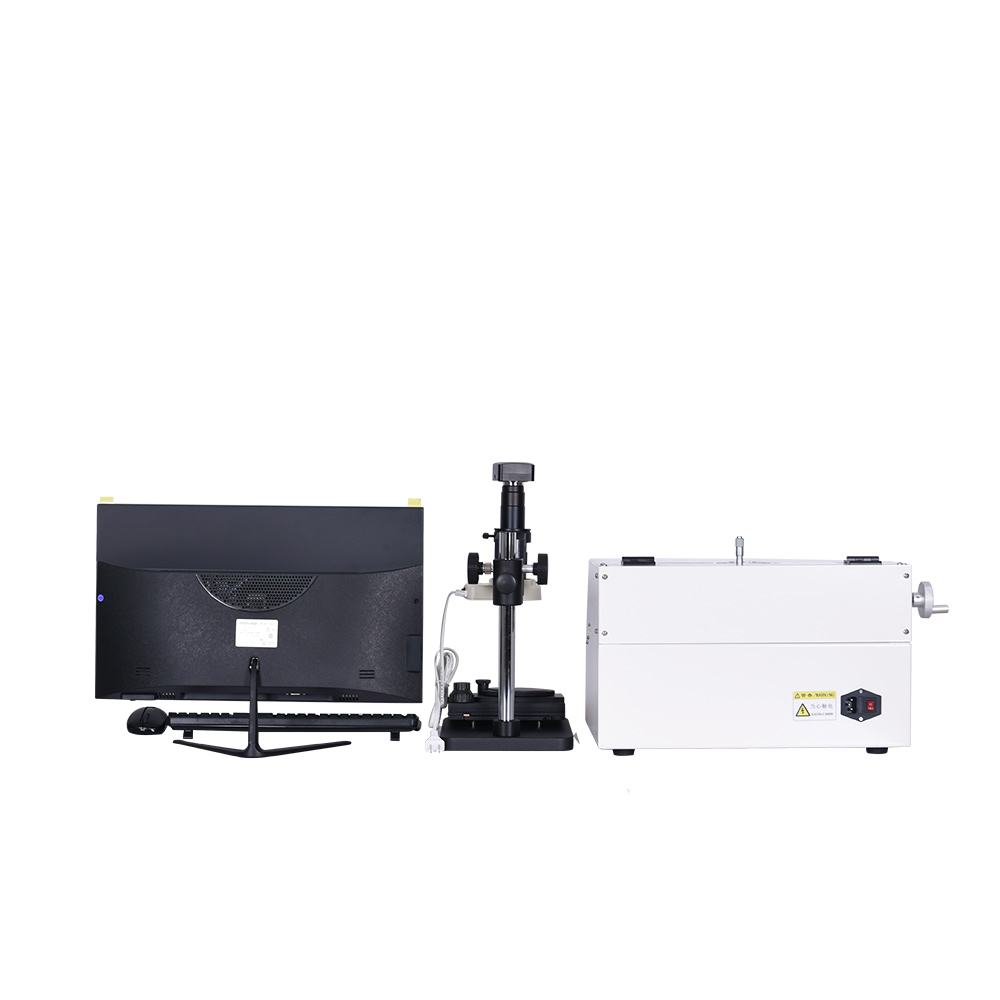

HS-Section Terminal Cross-section Analyzer

Service hotline

+8618938694287

Add to the wish list

Product consultation

Terminal Cross Section Analyzer Wire Harness Cross Section Tester

Key Attributes

HS Code	9024800000	Power	360W
Voltage	AC 220V 50Hz	Equipment Weight	24kg
Equipment Size	520340330mm	Scope of Application	0.01 - 120mm²
Measurement Accuracy	0.001mm	Movement Length	250mm
Microscope	0.7X~4.5X	Cutting Blade	Outer diameter: 150mm, thickness: 0.5mm
Cutting and Polishing Speed	0- 4000rpm

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Terminal Cross Section Analyzer Wire Harness Cross Section Tester

Product introduction

Easy operation, high-quality image acquisition system, accurate
measurement analysis for the production escort

Easy operation

High-quality image acquisition system

Accurate measurement analysis

Escort production

Comparison of similar product features

HS-Section Terminal Cross-section Analyzer

Voltage	AC 220V 50Hz
Power	360W
Equipment Weight	24kg
Equipment Size	520340330mm
Measurement Accuracy	0.001mm
Scope of Application	0.01 - 120mm²
Microscope	0.7X~4.5X
Cutting Blade	Outer diameter: 150mm, thickness: 0.5mm
Cutting and Polishing Speed	0- 4000rpm

HS-Section6 Terminal Cross-section Analyzer

Voltage	AC 220V 50Hz
Power	2500W
Equipment Weight	200kg
Equipment Size	1800750900mm
Measurement Accuracy	0.001mm
Scope of Application	0.01 - 200mm²
Microscope	0.7X~4.5X
Cutting Blade	Inner diameter: 32 mm, outer diameter: 150 mm, thickness: 0.5 mm
Cutting and Polishing Speed	0- 2800 rpm

Product Name

Voltage

Power

Equipment Weight

Equipment Size

Measurement Accuracy

Scope of Application

Microscope

Cutting Blade

Cutting and Polishing Speed

HS-Section Terminal Cross-section Analyzer	HS-Section6 Terminal Cross-section Analyzer
AC 220V 50Hz	AC 220V 50Hz
360W	2500W
24kg	200kg
520340330mm	1800750900mm
0.001mm	0.001mm
0.01 - 120mm²	0.01 - 200mm²
0.7X~4.5X	0.7X~4.5X
Outer diameter: 150mm, thickness: 0.5mm	Inner diameter: 32 mm, outer diameter: 150 mm, thickness: 0.5 mm
0- 4000rpm	0- 2800 rpm
