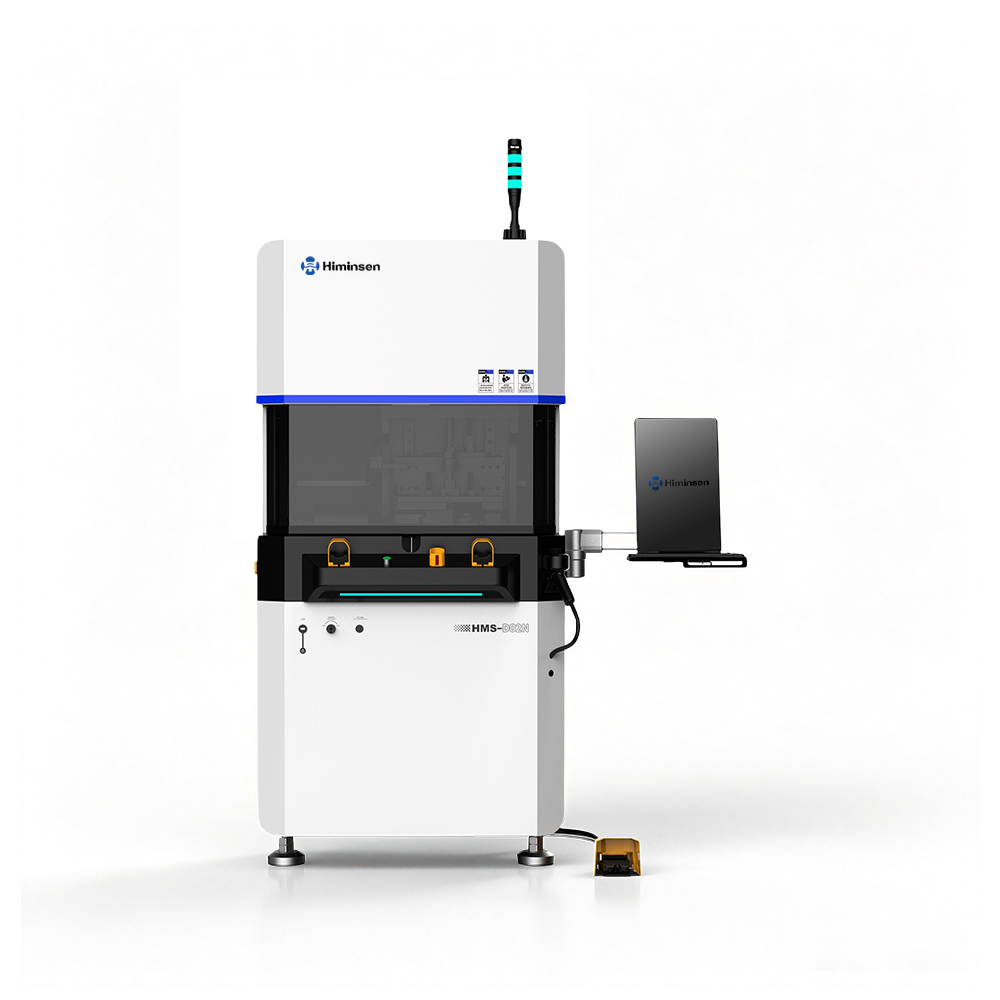

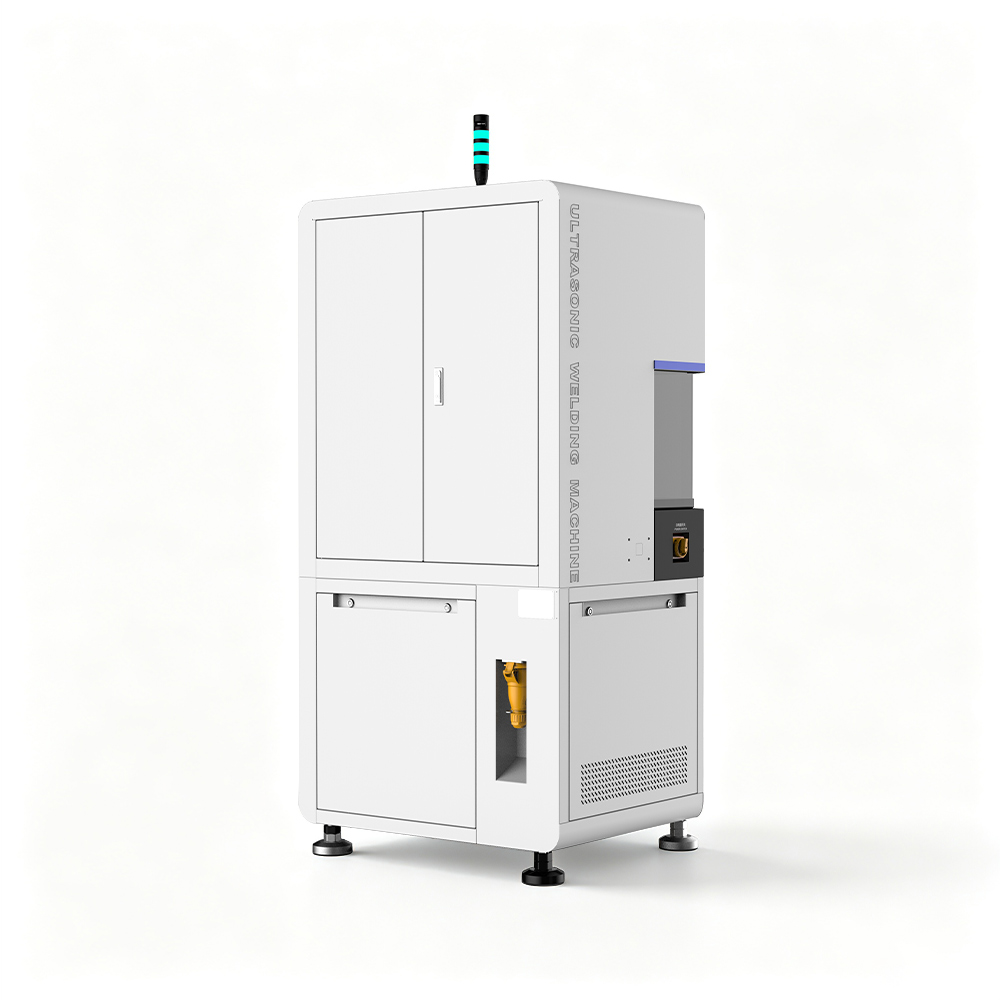

HMS-D02N Ultrasonic Torsional Welding Machine
HMS-D02N Ultrasonic Torsional Welding Machine
HMS-D02N Ultrasonic Torsional Welding Machine

HMS-D02N Ultrasonic Torsional Welding Machine

Service hotline

+8618938694287

Add to the wish list
Product consultation
HMS-D02N Ultrasonic Torsional Welding Machine
HMS-D02N Ultrasonic Torsional Welding Machine
HMS-D02N Ultrasonic Torsional Welding Machine
Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Key Attributes

HS Code 8515809090 Power 13000W
Voltage AC 380V 50Hz Equipment Weight 874.5kg
Equipment Size 1990*1100*940 mm Production Efficiency 120-150pcs/h
Wire Harness Welding Range Coppe<6 mm;Aluminium<8mm Operating Frequency 20KHz
Air Pressure >0.5 MPa

Application Scenarios

Ideal for new energy vehicle wiring harness, automotive cables, power connection cables and other metal wire splicing.New energy vehicle complete wiring harnesses, power battery PACK harnesses, energy storage inverter connecting cables, photovoltaic module bus cables, EV charging gun wires, construction machinery wiring, rail transit high-voltage harnesses, medical precision equipment conductors and other wire harness production lines.
Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Product introduction

HMS-D02N & HMS-D02GN ultrasonic wire welder for copper & aluminum harness mass production with yield above 99.9%. Two models cover wide wire cross-section range. Equipped with intelligent control system, MES connection, recipe storage and welding error prevention, perfectly meeting high-standard automatic production for automotive & new energy harness.

Advanced ultrasonic welding technology

Advanced ultrasonic welding technology

Easy operation

Easy operation

Compatible with MES systems

Compatible with MES systems

Password protection and parameter storage

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

Prevents misaligned welds, missing welds and incomplete fusion

Related accessories

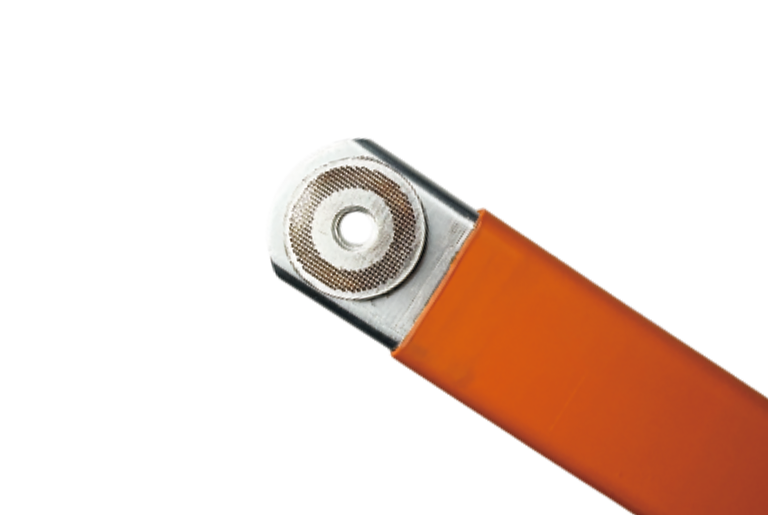

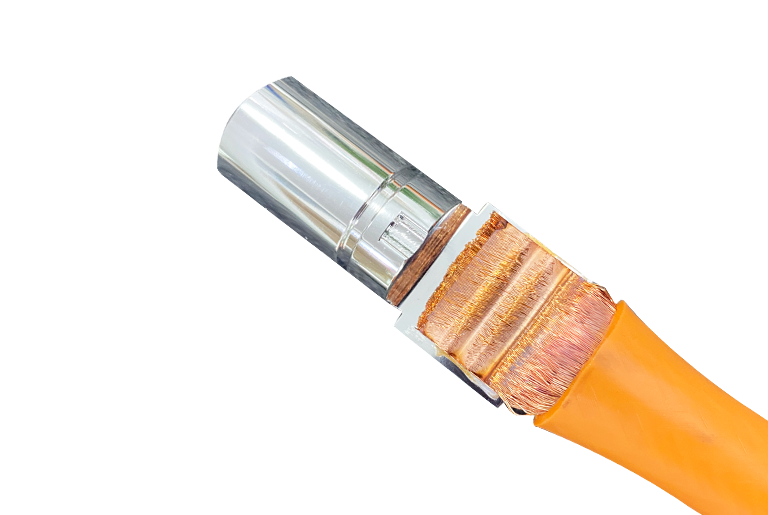

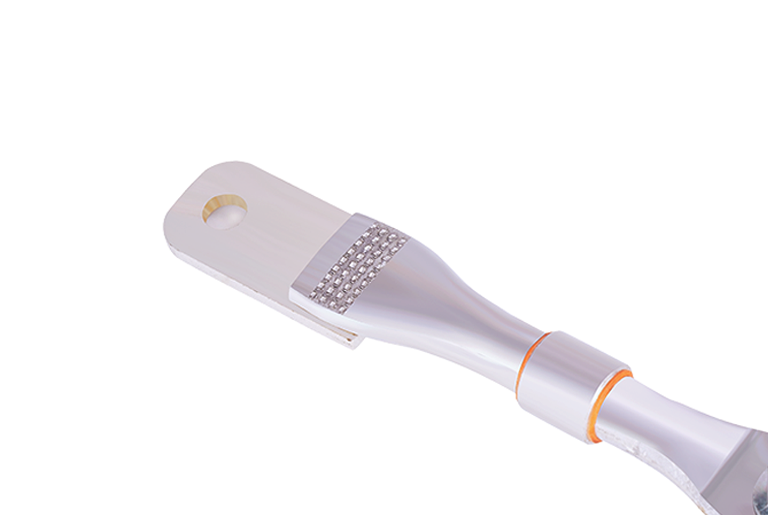

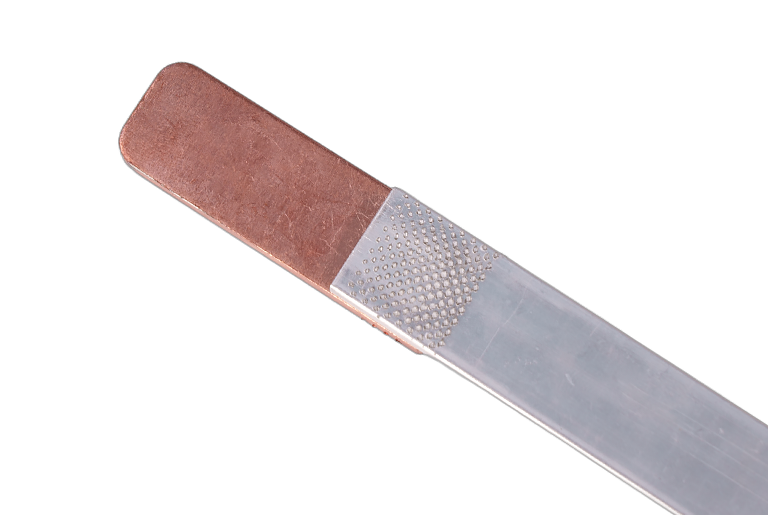

Sample Display

Sample Display
Sample Display
Sample Display
Sample Display

Comparison of similar product features

HMS-D02N Ultrasonic Torsional Welding Machine

Wire Harness Welding Range Coppe<6 mm;Aluminium<8mm
Operating Frequency 20KHz
Voltage AC 380V 50Hz
Equipment Weight 874.5kg
Equipment Size 1990*1100*940 mm
Power 13000W
Production Efficiency 120-150pcs/h
Air Pressure >0.5 MPa
Product Name
Wire Harness Welding Range
Operating Frequency
Voltage
Equipment Weight
Equipment Size
Power
Production Efficiency
Air Pressure
HMS-D02N Ultrasonic Torsional Welding Machine
Coppe<6 mm;Aluminium<8mm
20KHz
AC 380V 50Hz
874.5kg
1990*1100*940 mm
13000W
120-150pcs/h
>0.5 MPa
