Ultrasonic Wire Harness Welding Machine

HMS-X01 Ultrasonic Wire Harness Welding Machine

Name: HMS-X01 Ultrasonic Wire Harness Welding Machine
SKU: HMS-X01

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Exhibition CPSE Ultrasonic Welding Machine HMS-X01

Key Attributes

HS Code	8468800000	Power	3000W
Voltage	AC 220V 50Hz	Equipment Weight	53.5kg
Equipment Size	640425330mm	Displayed	Touch screen
Production Efficiency	200-400pcs/h	Operating Frequency	20KHz
Air Pressure	>0.5MPa	Welding Wire Harness Copper Cross-section	0.35–20mm² (Bare Cu)

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Product News Exhibition CPSE Ultrasonic Welding Machine HMS-X01

Product introduction

HMS-X01 compact ultrasonic wire harness welder runs at 20kHz, welding wire harness range 0.35-20mm² bare copper wire . It adopts lightweight compact design with only 53.5kg weight, powered by standard AC 220V 50Hz. Supporting MES system connection and storage of 100,000 welding data sets, it realizes full production traceability. Equipped with multi-level authority and multi-language functions, it prevents cold weld, missing weld and mis-welding to guarantee stable welding quality.

Advanced ultrasonic welding technology

Easy operation

Automated welding controlled by industrial computer

Password protection and parameter storage

Low maintenance cost

Prevents air-pressure welding errors

Related accessories

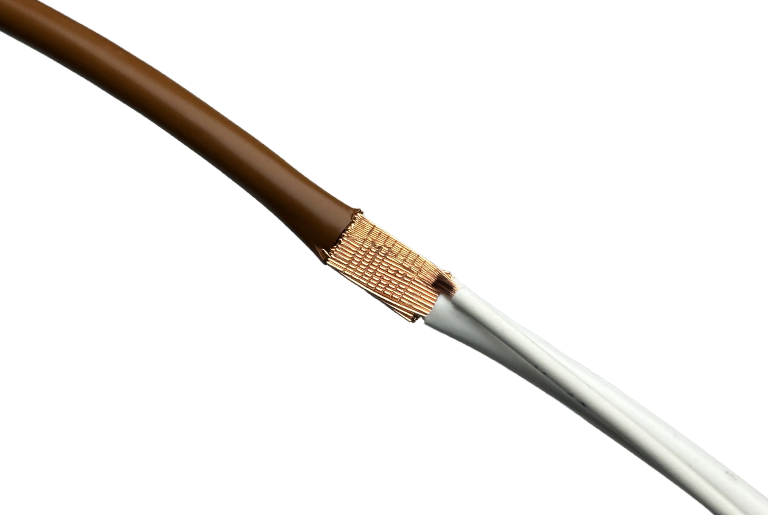

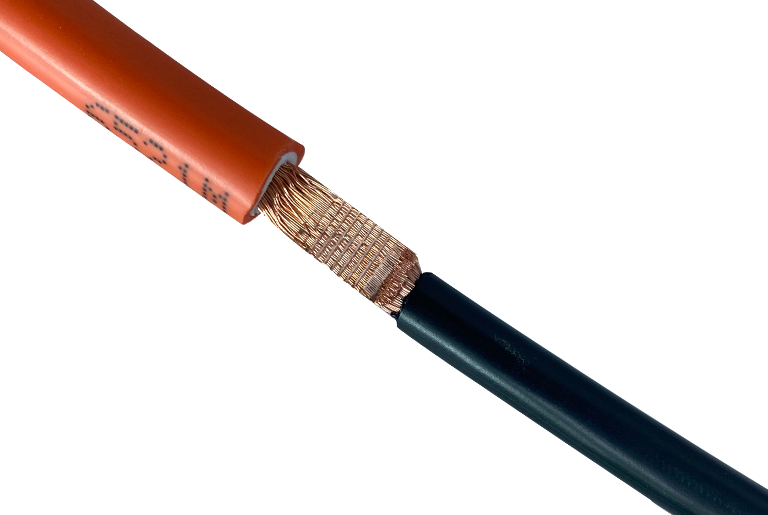

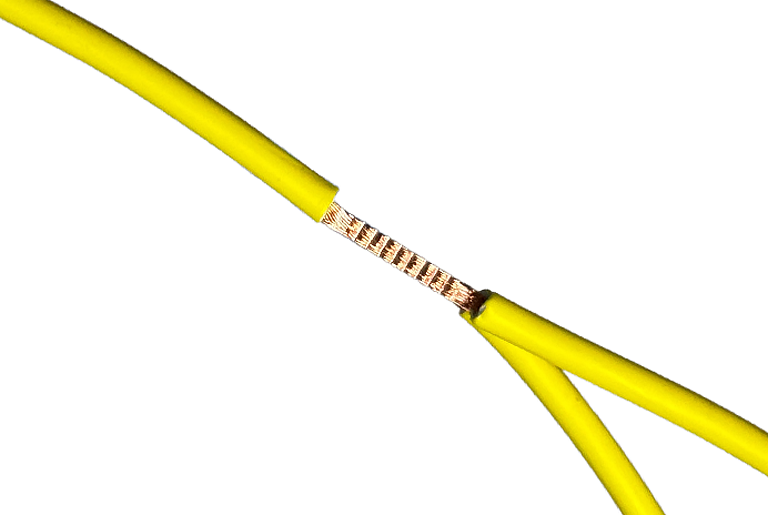

Sample Display

Comparison of similar product features

HMS-X01 Ultrasonic Wire Harness Welding Machine

Equipment Size	640425330mm
Equipment Weight	53.5kg
Power	3000W
Production Efficiency	200-400pcs/h
Air Pressure	>0.5MPa
Welding Wire Harness Copper Cross-section	0.35–20mm² (Bare Cu)

HMS-X02 Ultrasonic Wire Harness Welding Machine

Equipment Size	12007101100 mm
Equipment Weight	167kg
Power	6000W
Production Efficiency	200-400pcs/h
Air Pressure	>0.5MPa
Welding Wire Harness Copper Cross-section	0.5–50mm² (Bare Cu)

HMS-X02M Ultrasonic Wire Harness Welding Machine

Equipment Size	500190227mm
Equipment Weight	38kg
Power	2000W
Production Efficiency	200-400pcs/h
Air Pressure	>0.5MPa
Welding Wire Harness Copper Cross-section	0.2–20mm²

Product Name

Equipment Size

Equipment Weight

Power

Production Efficiency

Air Pressure

Welding Wire Harness Copper Cross-section

HMS-X01 Ultrasonic Wire Harness Welding Machine	HMS-X02 Ultrasonic Wire Harness Welding Machine	HMS-X02M Ultrasonic Wire Harness Welding Machine
640425330mm	12007101100 mm	500190227mm
53.5kg	167kg	38kg
3000W	6000W	2000W
200-400pcs/h	200-400pcs/h	200-400pcs/h
>0.5MPa	>0.5MPa	>0.5MPa
0.35–20mm² (Bare Cu)	0.5–50mm² (Bare Cu)	0.2–20mm²
