Ultrasonic Terminal Welding Machine

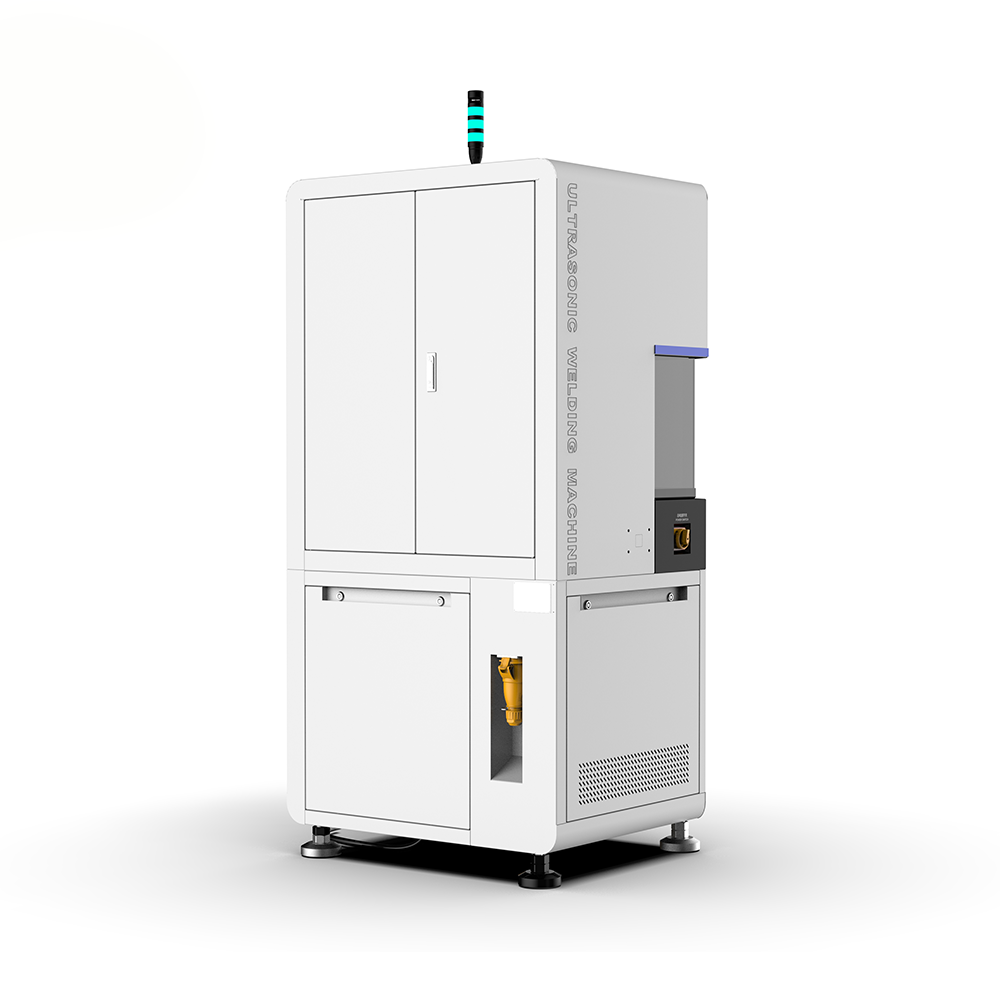

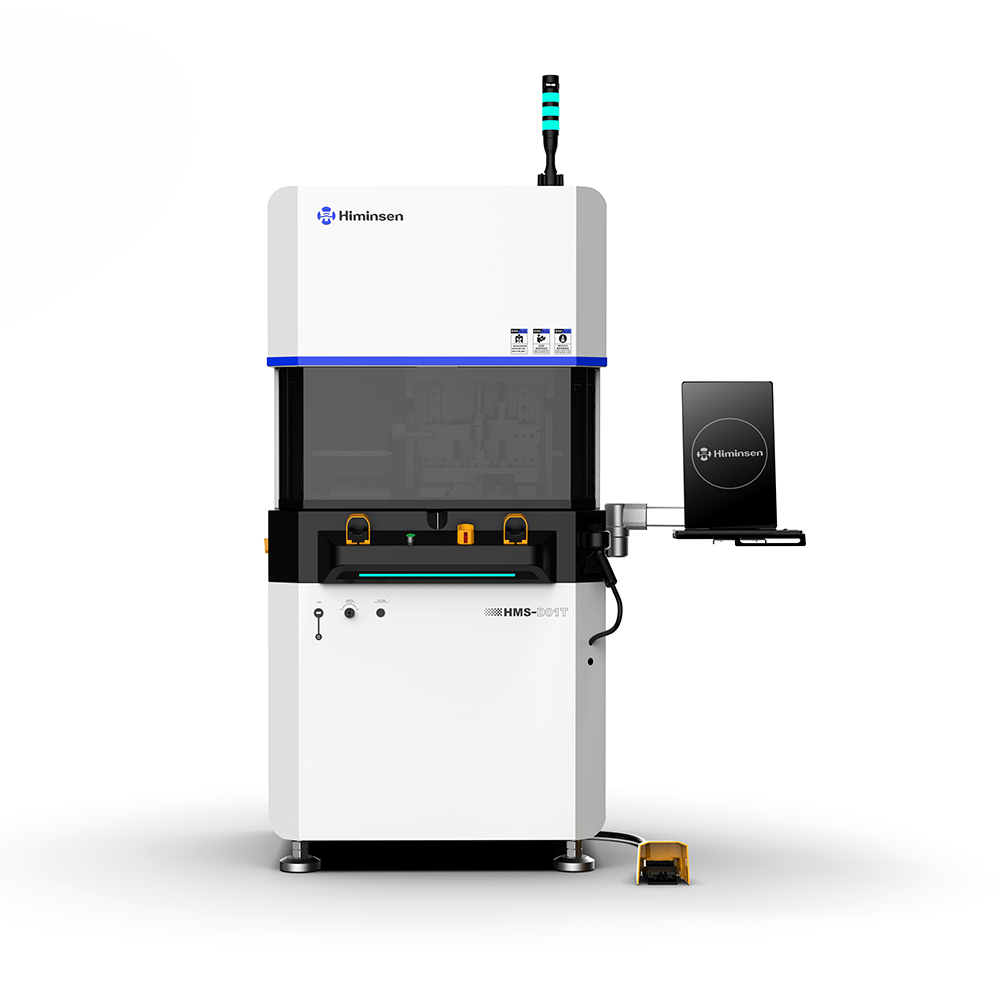

HMS-D02T Ultrasonic Terminal Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Source Factory Hot Sale

Key Attributes

HS Code	8515809090	Power	15000W
Voltage	AC 380V 50Hz	Equipment Weight	944kg
Equipment Size	206016501300mm	Production Efficiency	120-150pcs/h
Wire Harness Welding Range	Copper wire 16-150mm²;Aluminum wire 16-185mm²	Operating Frequency	20KHz
Air Pressure	>0.5 MPa

Application Scenarios

New energy vehicle complete wiring harnesses, power battery PACK harnesses, energy storage inverter connecting cables, photovoltaic module bus cables, EV charging gun wires, construction machinery wiring, rail transit high-voltage harnesses, medical precision equipment conductors and other wire harness production lines.

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Source Factory Hot Sale

Product introduction

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

Related accessories

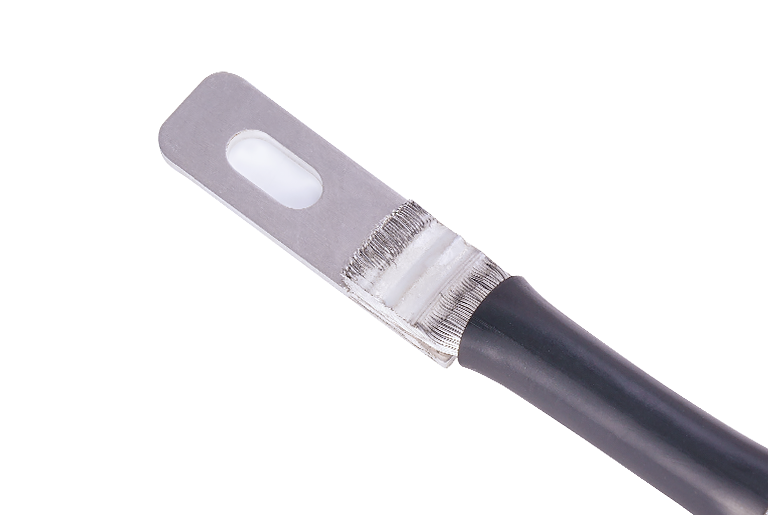

Sample Display

Comparison of similar product features

HMS-D02T Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16-150mm²;Aluminum wire 16-185mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	944kg
Equipment Size	206016501300mm
Power	15000W
Air Pressure	>0.5 MPa
Production Efficiency	120-150pcs/h

HMS-D01T Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16-120mm²;Aluminum wire 16-150mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	569kg
Equipment Size	15009201950mm
Power	11000W
Air Pressure	>0.5 MPa
Production Efficiency	120-150pcs/h

HMS-D01G Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 6-95mm²;Aluminum wire 6-95mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	530kg
Equipment Size	15009201950mm
Power	9000W
Air Pressure	>0.5 MPa
Production Efficiency	120-150pcs/h

Product Name

Wire Harness Welding Range

Operating Frequency

Voltage

Equipment Weight

Equipment Size

Power

Air Pressure

Production Efficiency

HMS-D02T Ultrasonic Terminal Welding Machine	HMS-D01T Ultrasonic Terminal Welding Machine	HMS-D01G Ultrasonic Terminal Welding Machine
Copper wire 16-150mm²;Aluminum wire 16-185mm²	Copper wire 16-120mm²;Aluminum wire 16-150mm²	Copper wire 6-95mm²;Aluminum wire 6-95mm²
20KHz	20KHz	20KHz
AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz
944kg	569kg	530kg
206016501300mm	15009201950mm	15009201950mm
15000W	11000W	9000W
>0.5 MPa	>0.5 MPa	>0.5 MPa
120-150pcs/h	120-150pcs/h	120-150pcs/h
