Ultrasonic Terminal Welding Machine

HMS-D02DB Ultrasonic Terminal Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Exhibition CPSE Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Key Attributes

HS Code	8515809090	Power	13000W*2
Voltage	AC 380V 50Hz	Equipment Weight	992kg
Equipment Size	230016501300mm	Production Efficiency	60-90pcs/h
Wire Harness Welding Range	Copper wire, single‑sided 40‑200 mm²; Aluminum wire, double‑sided 20‑100 mm²	Operating Frequency	20KHz
Air Pressure	>0.5 MPa

Application Scenarios

New energy vehicle complete wiring harnesses, power battery PACK harnesses, energy storage inverter connecting cables, photovoltaic module bus cables, EV charging gun wires, construction machinery wiring, rail transit high-voltage harnesses, medical precision equipment conductors and other wire harness production lines.

Product News Exhibition CPSE Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Product introduction

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

Related accessories

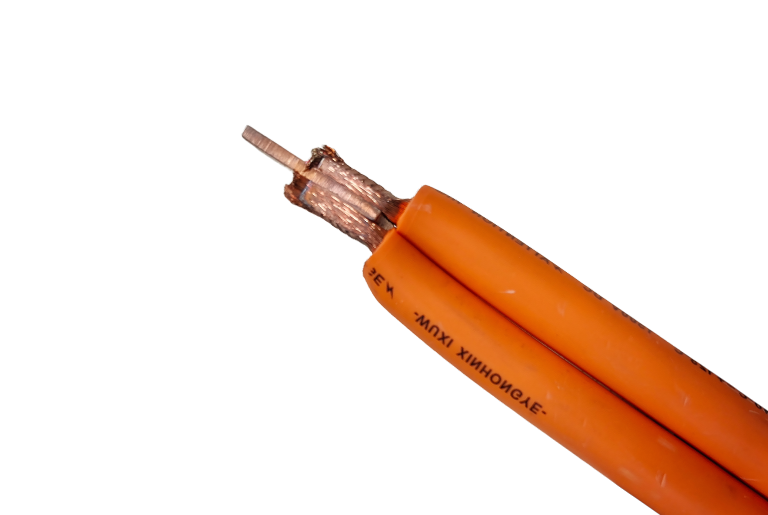

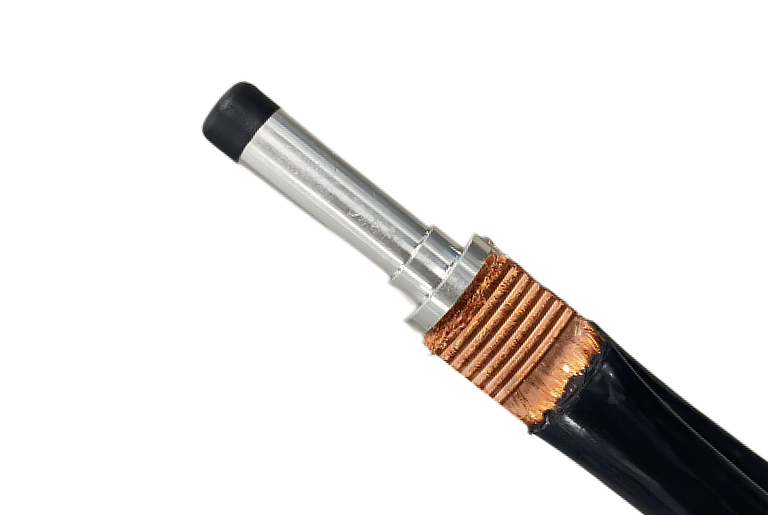

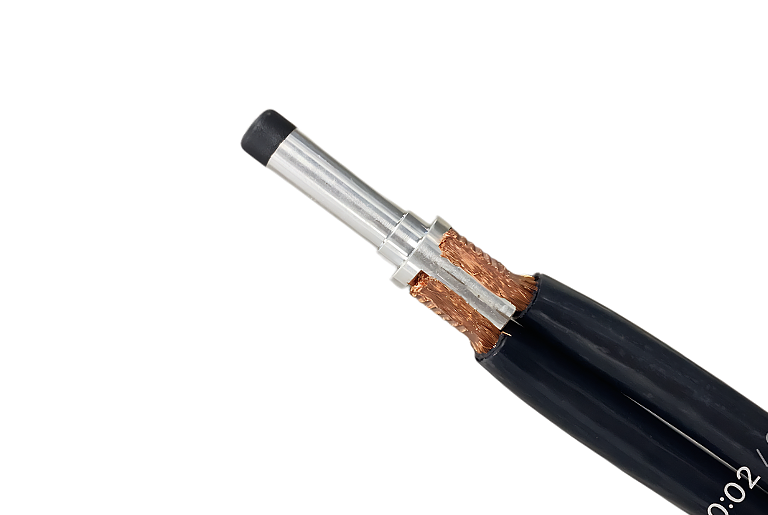

Sample Display

Comparison of similar product features

HMS-D02DB Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire, single‑sided 40‑200 mm²; Aluminum wire, double‑sided 20‑100 mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	992kg
Equipment Size	230016501300mm
Power	13000W*2
Production Efficiency	60-90pcs/h
Air Pressure	>0.5 MPa

HMS-D02 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16mm² -70mm²;Aluminum wire 16mm² -85mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	874.5kg
Equipment Size	206016501300mm
Power	6200W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5 MPa

HMS-D02G Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	944kg
Equipment Size	206016501300mm
Power	13000W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5 MPa

HMS-D03 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	944kg
Equipment Size	206016501300mm
Power	12000W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5 MPa

Product Name

Wire Harness Welding Range

Operating Frequency

Voltage

Equipment Weight

Equipment Size

Power

Production Efficiency

Air Pressure

HMS-D02DB Ultrasonic Terminal Welding Machine	HMS-D02 Ultrasonic Terminal Welding Machine	HMS-D02G Ultrasonic Terminal Welding Machine	HMS-D03 Ultrasonic Terminal Welding Machine
Copper wire, single‑sided 40‑200 mm²; Aluminum wire, double‑sided 20‑100 mm²	Copper wire 16mm² -70mm²;Aluminum wire 16mm² -85mm²	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
20KHz	20KHz	20KHz	20KHz
AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz
992kg	874.5kg	944kg	944kg
230016501300mm	206016501300mm	206016501300mm	206016501300mm
13000W*2	6200W	13000W	12000W
60-90pcs/h	120-150pcs/h	120-150pcs/h	120-150pcs/h
>0.5 MPa	>0.5 MPa	>0.5 MPa	>0.5 MPa
