Ultrasonic Terminal Welding Machine

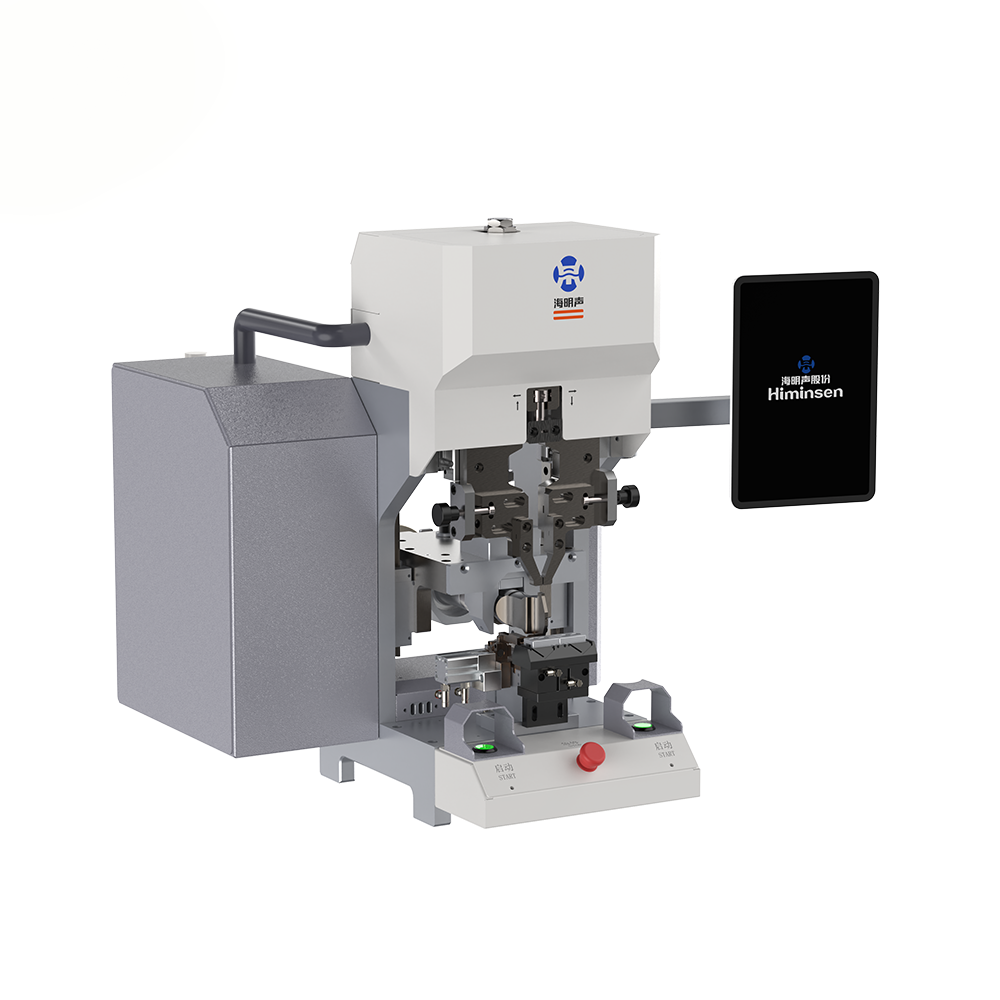

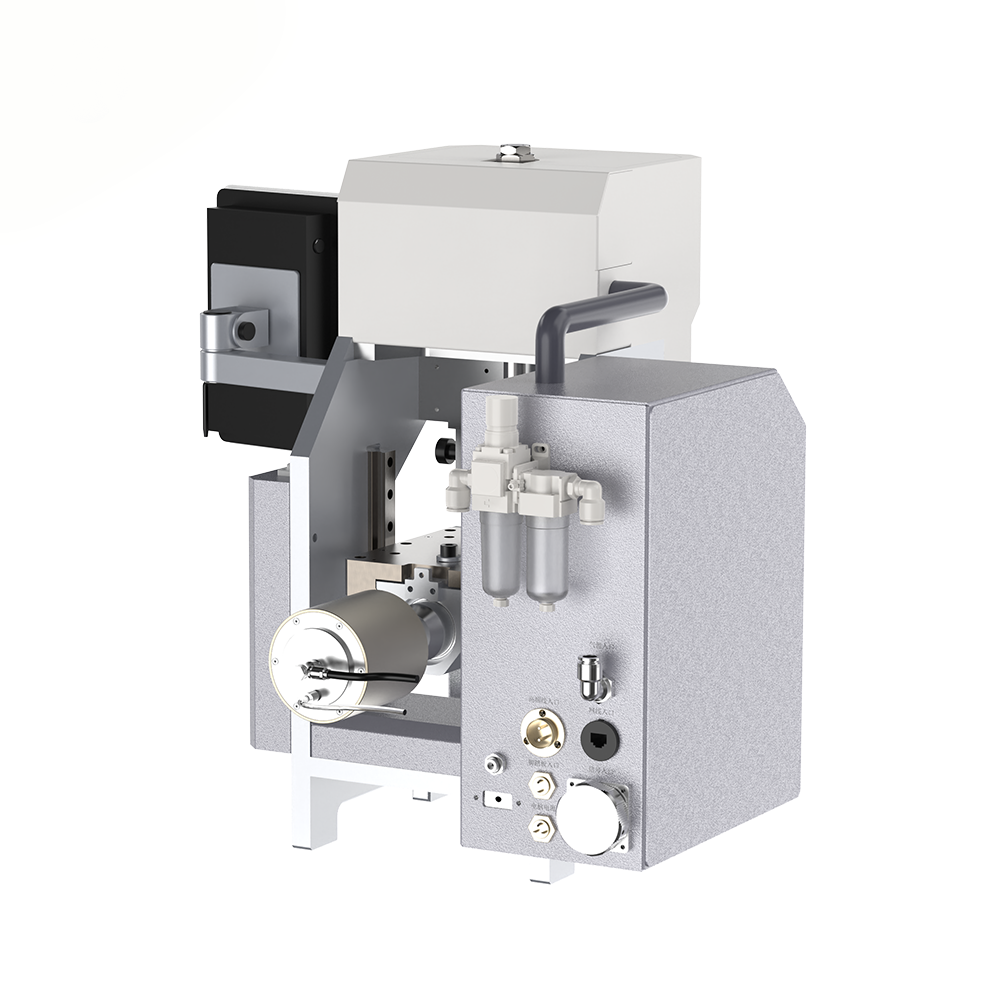

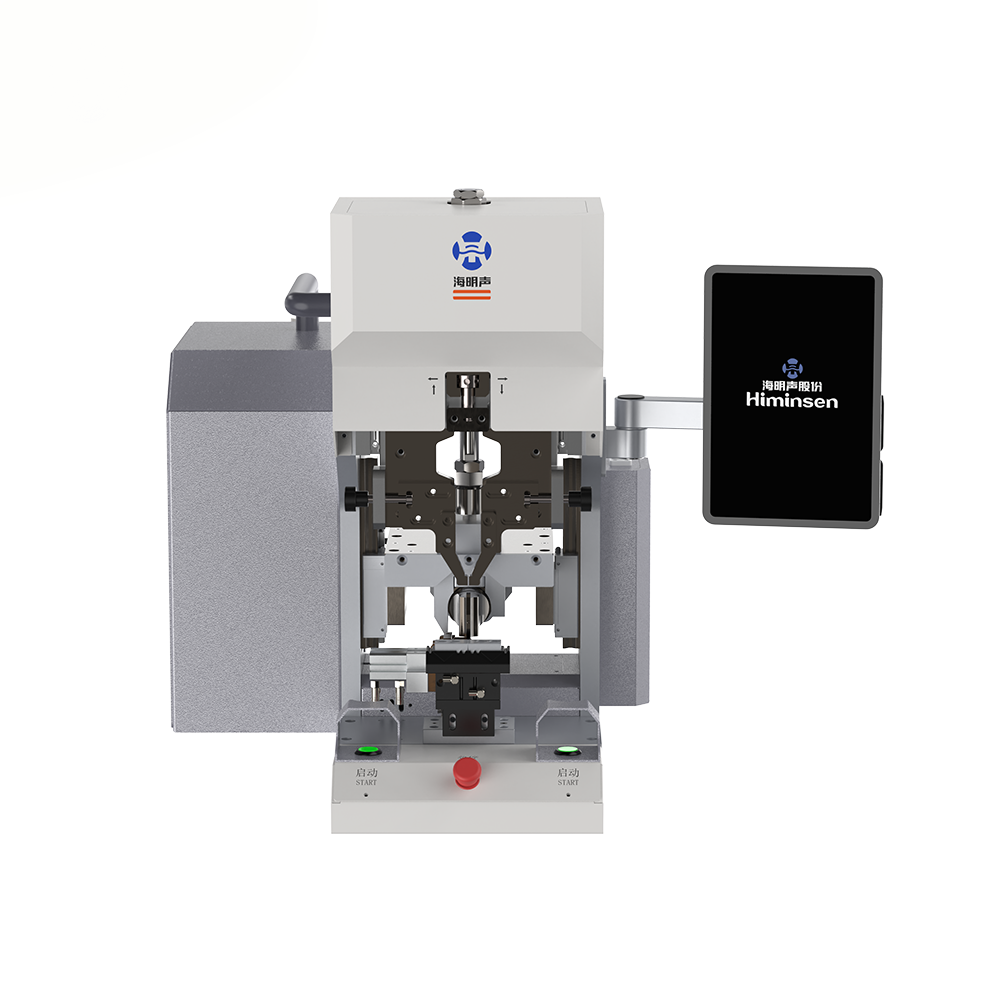

HMS-D00M Ultrasonic Terminal Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Factory Direct Sales

Key Attributes

HS Code	8515809090	Power	2000W
Voltage	AC 220V 50Hz	Equipment Weight	75kg
Equipment Size	645680762 mm	Production Efficiency	120-180pcs/h
Wire Harness Welding Range	Copper wire 1.5-12mm²;Aluminum wire 1.5-16mm²	Operating Frequency	20KHz
Air Pressure	>0.5 MPa

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Factory Direct Sales

Product introduction

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

Sample Display

Comparison of similar product features

HMS-D00M Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 1.5-12mm²;Aluminum wire 1.5-16mm²
Operating Frequency	20KHz
Voltage	AC 220V 50Hz
Equipment Weight	75kg
Equipment Size	645680762 mm
Power	2000W
Air Pressure	>0.5 MPa
Production Efficiency	120-180pcs/h

HMS-D00 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²
Operating Frequency	20KHz
Voltage	AC 220V 50Hz
Equipment Weight	220kg
Equipment Size	615760900 mm
Power	4000W
Air Pressure	>0.5MPa
Production Efficiency	120-150pcs/h

HMS-D01 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 6-70mm²;Aluminum wire 6-85mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	530kg
Equipment Size	15009201950mm
Power	6200W
Air Pressure	>0.5 MPa
Production Efficiency	120-150pcs/h

HMS-D01G Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 6-95mm²;Aluminum wire 6-95mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	530kg
Equipment Size	15009201950mm
Power	9000W
Air Pressure	>0.5 MPa
Production Efficiency	120-150pcs/h

Product Name

Wire Harness Welding Range

Operating Frequency

Voltage

Equipment Weight

Equipment Size

Power

Air Pressure

Production Efficiency

HMS-D00M Ultrasonic Terminal Welding Machine	HMS-D00 Ultrasonic Terminal Welding Machine	HMS-D01 Ultrasonic Terminal Welding Machine	HMS-D01G Ultrasonic Terminal Welding Machine
Copper wire 1.5-12mm²;Aluminum wire 1.5-16mm²	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²	Copper wire 6-70mm²;Aluminum wire 6-85mm²	Copper wire 6-95mm²;Aluminum wire 6-95mm²
20KHz	20KHz	20KHz	20KHz
AC 220V 50Hz	AC 220V 50Hz	AC 380V 50Hz	AC 380V 50Hz
75kg	220kg	530kg	530kg
645680762 mm	615760900 mm	15009201950mm	15009201950mm
2000W	4000W	6200W	9000W
>0.5 MPa	>0.5MPa	>0.5 MPa	>0.5 MPa
120-180pcs/h	120-150pcs/h	120-150pcs/h	120-150pcs/h
