HS-501M Charging Gun Cable Stripping Machine

HS-501M Charging Gun Cable Stripping Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Coaxial cable processing Cable rotary stripping equipment Computer wire stripping machine

Key Attributes

HS Code	8479899990	Power	3000W
Voltage	AC 220V 50/60Hz	Equipment Weight	380kg
Equipment Size	16806801300mm	Displayed	Touch screen
Production Efficiency	200-400pcs/h	Cutting & Stripping Processing Range	10-45mm
Stripping Length	1-1000mm	Number of Stripping Layers	2 layers

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Coaxial cable processing Cable rotary stripping equipment Computer wire stripping machine

Product introduction

This equipment is primarily used for processing charging gun cables, coaxial cables and special single-core wires. It utilizes an advanced rotating cutter head, which enhances both precision and speed. The dedicated core-centering positioning device and rotary cutting method improve processing capabilities. It handles various sizes and types of outer sheath wires without the need for blade changes.

Charging gun cable processing

Coaxial cable processing

Dedicated core positioning

Touch screen operation

Rotary cutting technology

High precision stripping

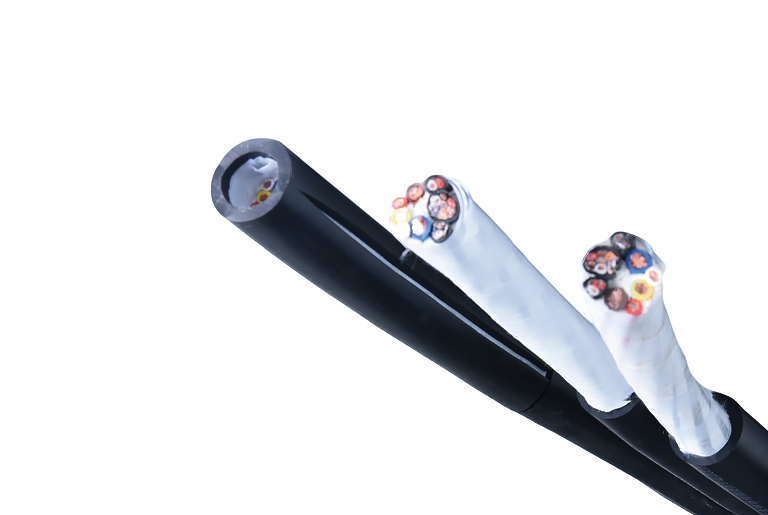

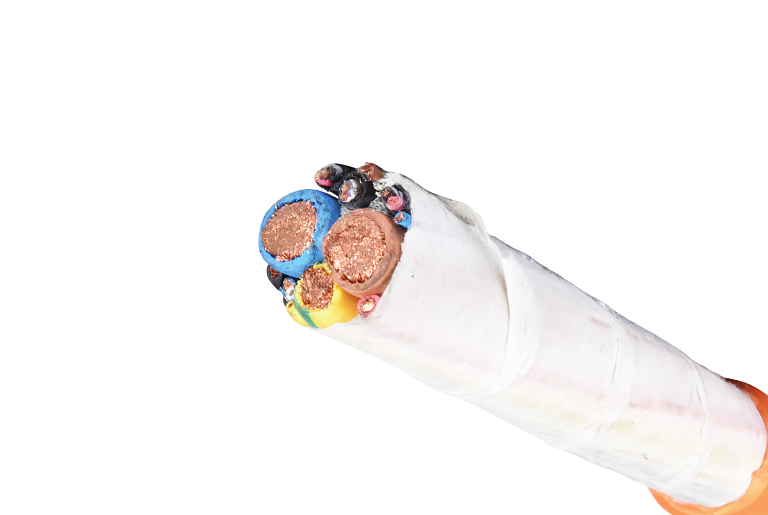

Sample Display

Comparison of similar product features

HS-501M Charging Gun Cable Stripping Machine

Voltage	AC 220V 50/60Hz
Power	3000W
Equipment Weight	380kg
Equipment Size	16806801300mm
Cutting & Stripping Processing Range	10-45mm
Stripping Length	1-1000mm
Number of Stripping Layers	2 layers
Storage Capacity
Displayed	Touch screen
Production Efficiency	200-400pcs/h

HS-6509 Coaxial Cable Stripping Machine

Voltage	AC 220V 50Hz
Power	400W
Equipment Weight	25kg
Equipment Size	600190290 mm
Cutting & Stripping Processing Range	1.5-9.5mm
Stripping Length	0-65mm
Number of Stripping Layers	9 layers
Storage Capacity	100 items
Displayed	Touch screen
Production Efficiency	500-700pcs/h

HS-9018 Coaxial Cable Stripping Machine

Voltage	AC 220V 50Hz
Power	600W
Equipment Weight	40kg
Equipment Size	720230340mm
Cutting & Stripping Processing Range	1.5-18mm
Stripping Length	0-90mm
Number of Stripping Layers	9 layers
Storage Capacity	100 items
Displayed	Touch screen
Production Efficiency	400-500pcs/h

HS-20025 Coaxial Cable Stripping Machine

Voltage
Power	800W
Equipment Weight	50kg
Equipment Size	1000225400mm
Cutting & Stripping Processing Range	2-23mm
Stripping Length	1-200mm
Number of Stripping Layers	9 layers
Storage Capacity	100 items
Displayed	Touch screen
Production Efficiency	300-400pcs/h

Product Name

Voltage

Power

Equipment Weight

Equipment Size

Cutting & Stripping Processing Range

Stripping Length

Number of Stripping Layers

Storage Capacity

Displayed

Production Efficiency

HS-501M Charging Gun Cable Stripping Machine	HS-6509 Coaxial Cable Stripping Machine	HS-9018 Coaxial Cable Stripping Machine	HS-20025 Coaxial Cable Stripping Machine
AC 220V 50/60Hz	AC 220V 50Hz	AC 220V 50Hz
3000W	400W	600W	800W
380kg	25kg	40kg	50kg
16806801300mm	600190290 mm	720230340mm	1000225400mm
10-45mm	1.5-9.5mm	1.5-18mm	2-23mm
1-1000mm	0-65mm	0-90mm	1-200mm
2 layers	9 layers	9 layers	9 layers
	100 items	100 items	100 items
Touch screen	Touch screen	Touch screen	Touch screen
200-400pcs/h	500-700pcs/h	400-500pcs/h	300-400pcs/h
