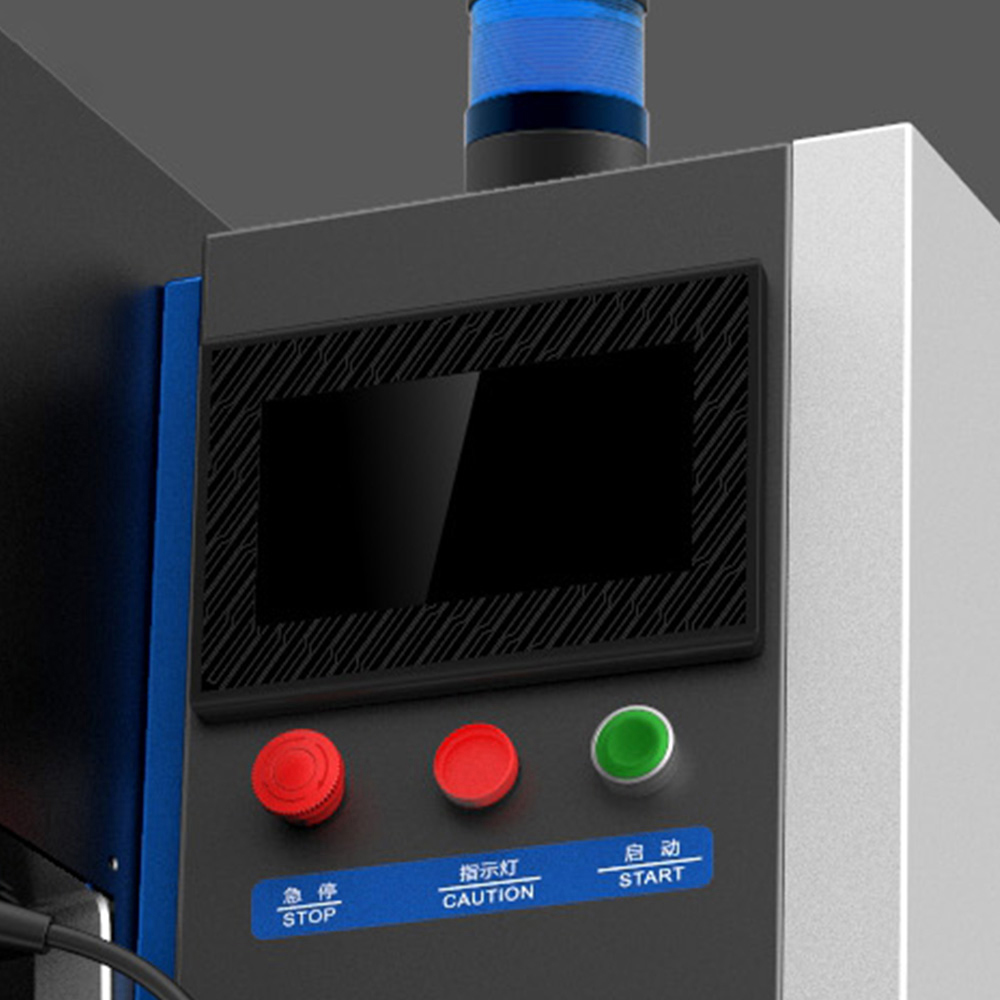

HS‑SK4T CNC servo terminal crimping machine is a vertical CNC‑driven crimping unit with 4‑ton servo crimping capacity for wires from 0.5‑16mm². Operated via touch‑screen interface, it features switchable 30/40 mm crimping stroke with optional pressure‑monitoring function. It delivers throughput up to 1200 pcs/h.

10‑ton CNC servo crimping force accommodates medium‑to‑large cables ranging from 6‑50mm². Switchable 30/40 mm crimping strokes are compatible with various medium‑size terminals and cable lugs, providing sufficient and uniform crimping force to meet process specifications for medium‑high‑power wire harnesses.

40‑ton heavy‑duty CNC servo crimping force for ultra‑large 16‑300mm² cables. 75 mm extended crimping stroke fits heavy‑duty high‑voltage terminals and large‑size cable lugs, delivering ample and uniform crimping force to meet strict high‑power high‑voltage harness crimping standards.

60‑ton ultra‑heavy‑duty CNC servo crimping force for 35‑400mm² extra‑large cables. 75 mm extended crimping stroke fits oversized cable lugs and heavy‑duty high‑voltage terminals, providing sufficient and uniform crimping force to satisfy strict crimping standards for extra‑high‑power high‑voltage wire harnesses.

HS‑ZSK4T desktop CNC servo terminal crimping machine is a compact bench‑top servo crimping unit with 4‑ton crimping capacity for fine wires of 0.3‑6mm². Featuring switchable 30/40 mm crimping stroke and industrial computer control, with pressure sensor as optional accessory, it achieves production output of 500‑1000 pcs/h.

HS‑ZSK8T desktop CNC servo terminal crimping machine is a compact bench‑top servo crimping unit with 8‑ton crimping capacity for wires of 0.3‑10mm². Equipped with Walk‑Mourked pressure sensor, switchable 30/40 mm crimping stroke and industrial‑computer control, power 2000W+400W.

HS‑ZSK20T desktop CNC servo terminal crimping machine is a high‑force bench‑top servo crimping unit with 20‑ton crimping capacity for medium‑heavy wires of 6‑120mm². Equipped with 60 mm crimping stroke, baseplate pressure monitoring system and industrial‑computer control, power 2000W+400W, production efficiency reaches 720 pcs/h.
