Ultrasonic Terminal Welding Machine

HMS-D00 Ultrasonic Terminal Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Exhibition CPSE Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Key Attributes

HS code	8515809090	Equipment size	615760900 mm
Equipment weight	220kg	Voltage	AC 220V 50Hz
Power	4000W	Operating frequency	20KHz
Core Parts	Generator, Transducer, Amplifier（ultrasonic booster）, Welding Horn	Welding Wire Harness Range	2.5-25mm² Copper wire ;2.5-35mm²Aluminum wire
Production Efficiency	120-150pcs/H	Air Pressure	>0.5 MPa

Application Scenarios

New energy vehicle complete wiring harnesses, power battery PACK harnesses, energy storage inverter connecting cables, photovoltaic module bus cables, EV charging gun wires, construction machinery wiring, rail transit high-voltage harnesses, medical precision equipment conductors and other wire harness production lines.

Product News Exhibition CPSE Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Product introduction

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

Related accessories

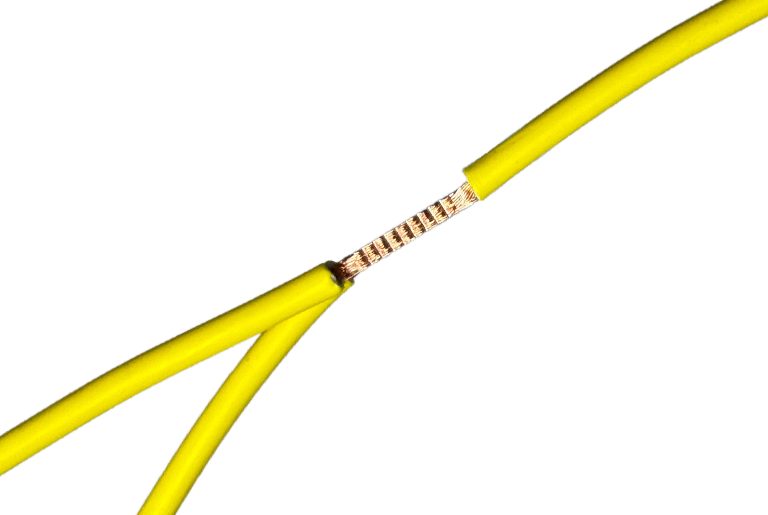

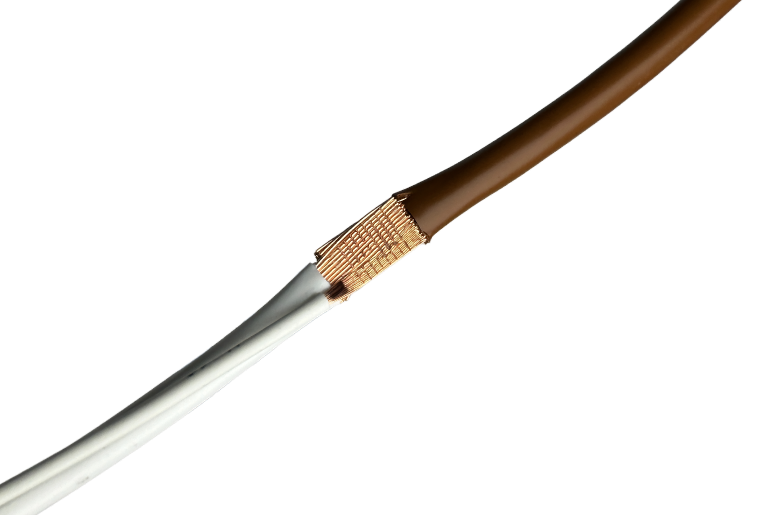

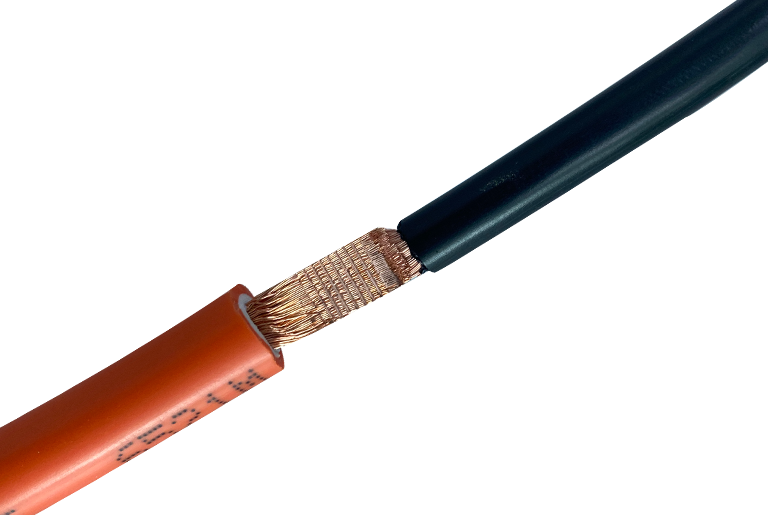

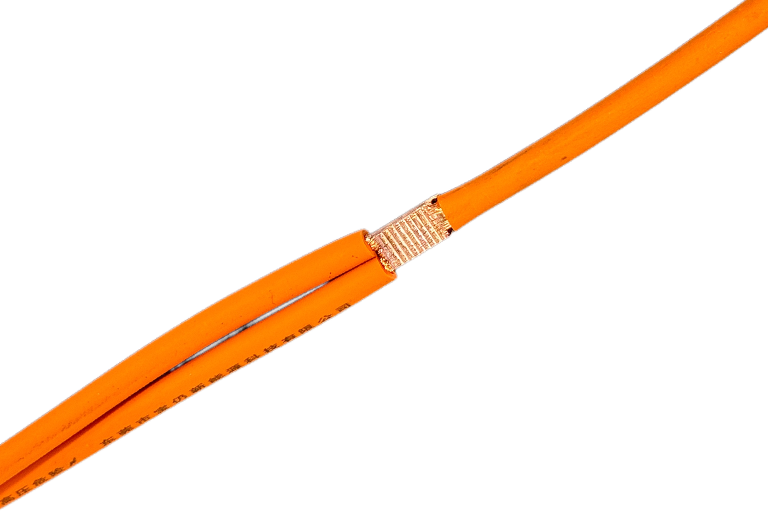

Sample Display

Comparison of similar product features

HMS-D00 Ultrasonic Terminal Welding Machine

Welding Wire Harness Range	2.5-25mm² Copper wire ;2.5-35mm²Aluminum wire
Operating frequency	20KHz
Voltage	AC 220V 50Hz
Equipment weight	220kg
Equipment size	615760900 mm
Power	4000W

HMS-D02 Ultrasonic Terminal Welding Machine

Welding Wire Harness Range	Copper wire 16mm² -70mm²;Aluminum wire 16mm² -85mm²
Operating frequency	20KHz
Voltage	AC 380V 50Hz
Equipment weight	874.5kg
Equipment size	206016501300mm
Power	6200W

HMS-D02G Ultrasonic Terminal Welding Machine

Welding Wire Harness Range	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
Operating frequency	20KHz
Voltage	AC 380V 50Hz
Equipment weight	944kg
Equipment size	206016501300mm
Power	13000W

Product Name

Welding Wire Harness Range

Operating frequency

Voltage

Equipment weight

Equipment size

Power

HMS-D00 Ultrasonic Terminal Welding Machine	HMS-D02 Ultrasonic Terminal Welding Machine	HMS-D02G Ultrasonic Terminal Welding Machine
2.5-25mm² Copper wire ;2.5-35mm²Aluminum wire	Copper wire 16mm² -70mm²;Aluminum wire 16mm² -85mm²	Copper wire 16mm² -120mm²;Aluminum wire 16mm² -150mm²
20KHz	20KHz	20KHz
AC 220V 50Hz	AC 380V 50Hz	AC 380V 50Hz
220kg	874.5kg	944kg
615760900 mm	206016501300mm	206016501300mm
4000W	6200W	13000W
