Ultrasonic Terminal Welding Machine

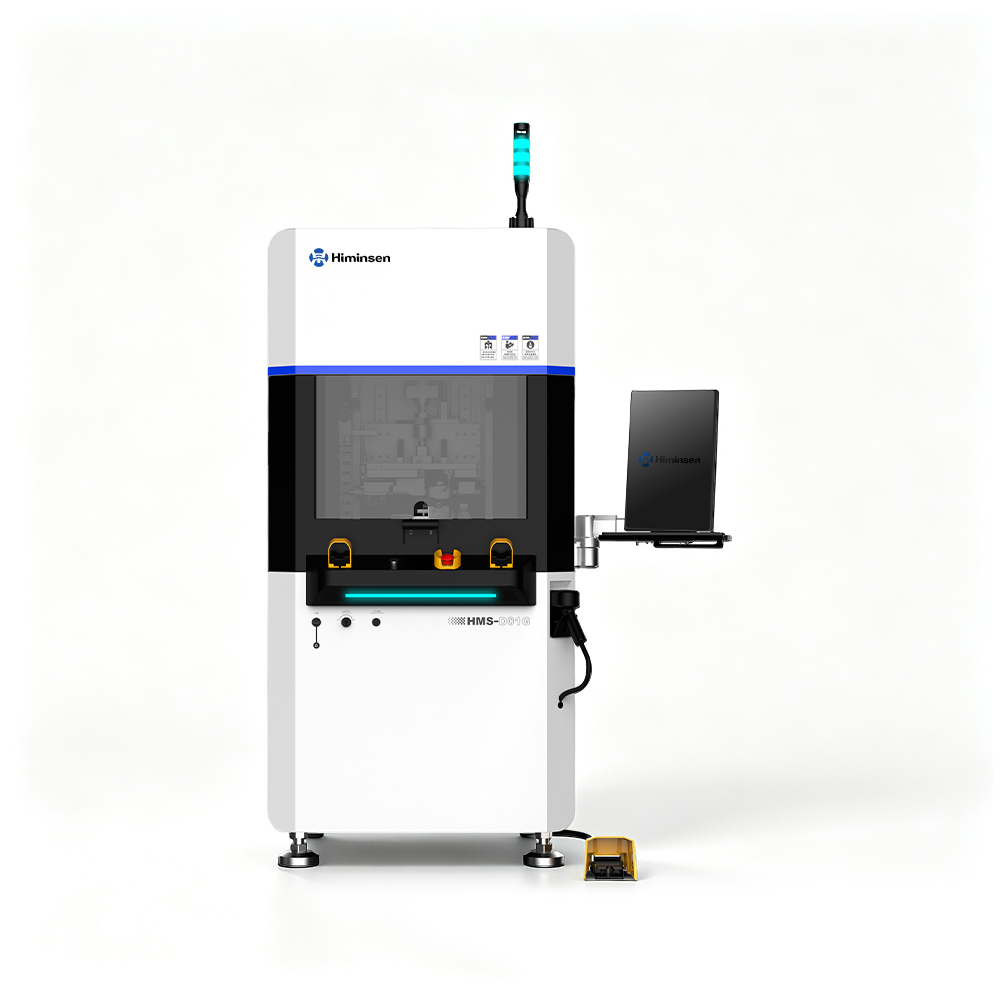

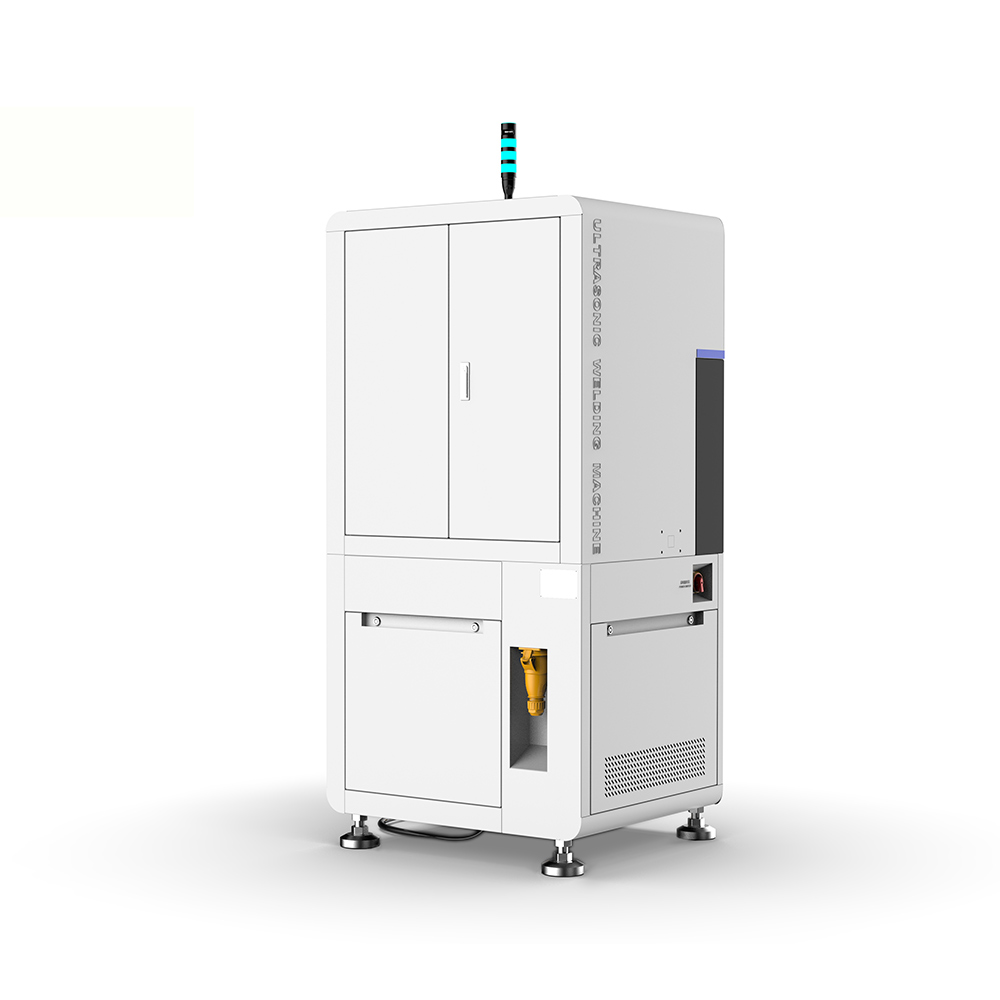

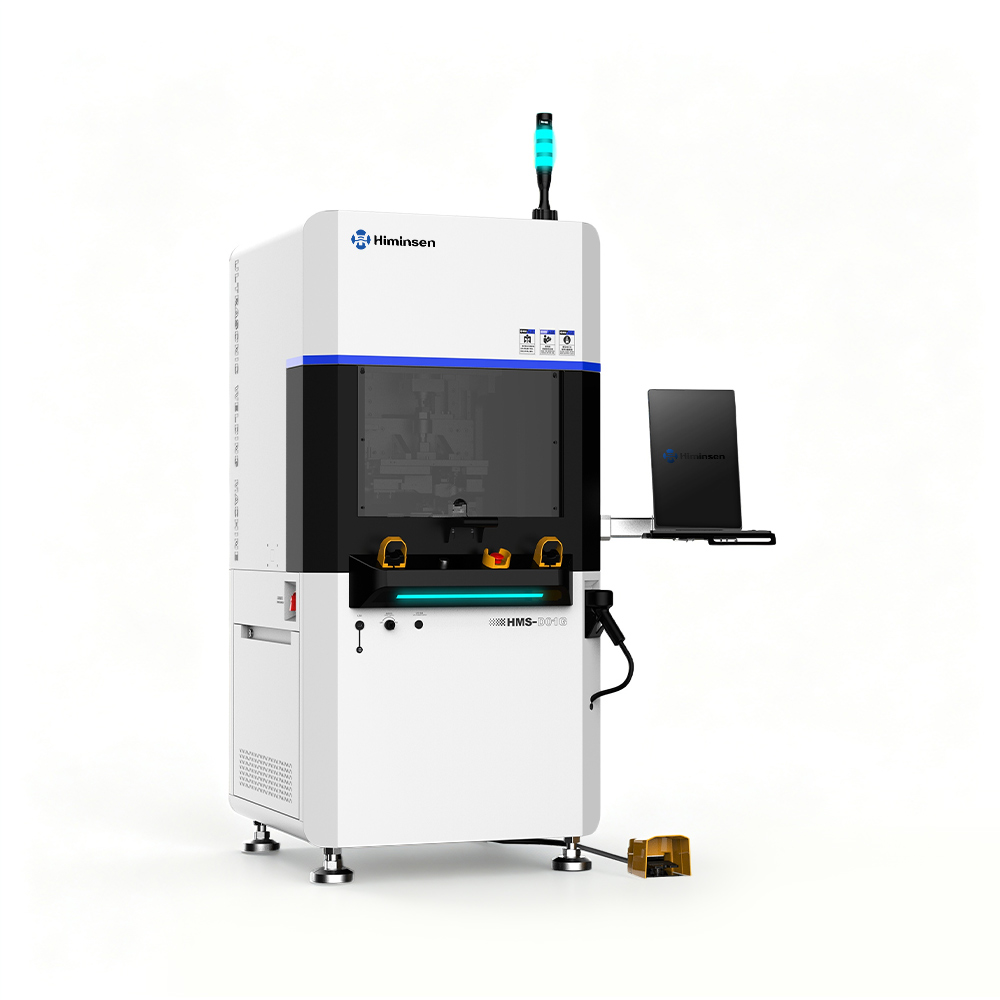

HMS-D01G Ultrasonic Terminal Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Source Factory Hot Sale

Key Attributes

HS Code	8479899990	Power	9000W
Voltage	AC 380V 50Hz	Equipment Weight	530kg
Equipment Size	15009201950mm	Production Efficiency	120-150pcs/h
Wire Harness Welding Range	Copper wire 6-95mm²;Aluminum wire 6-95mm²	Operating Frequency	20KHz
Air Pressure	>0.5 MPa

Application Scenarios

New energy vehicle complete wiring harnesses, power battery PACK harnesses, energy storage inverter connecting cables, photovoltaic module bus cables, EV charging gun wires, construction machinery wiring, rail transit high-voltage harnesses, medical precision equipment conductors and other wire harness production lines.

Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine Product News Source Factory Hot Sale

Product introduction

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

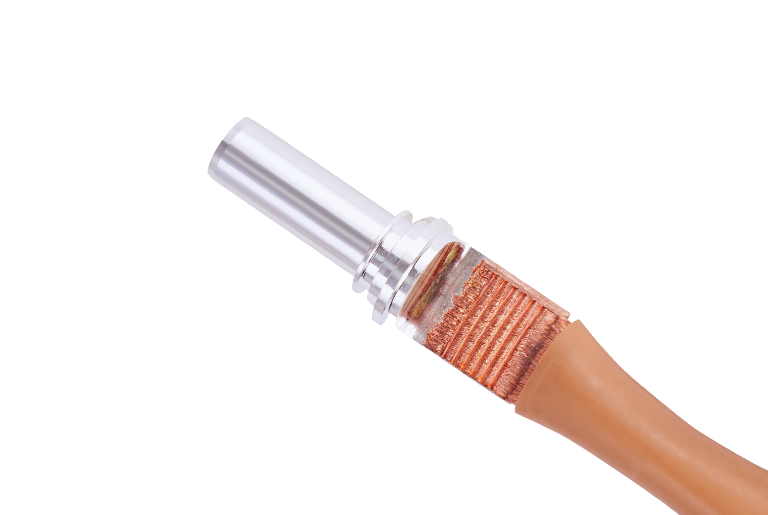

Sample Display

Comparison of similar product features

HMS-D01G Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 6-95mm²;Aluminum wire 6-95mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	530kg
Equipment Size	15009201950mm
Power	9000W

HMS-D01 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 6-70mm²;Aluminum wire 6-85mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	530kg
Equipment Size	15009201950mm
Power	6200W

HMS-D02DB Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire, single‑sided 40‑200 mm²; Aluminum wire, double‑sided 20‑100 mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	992kg
Equipment Size	230016501300mm
Power	13000W*2

Product Name

Wire Harness Welding Range

Operating Frequency

Voltage

Equipment Weight

Equipment Size

Power

HMS-D01G Ultrasonic Terminal Welding Machine	HMS-D01 Ultrasonic Terminal Welding Machine	HMS-D02DB Ultrasonic Terminal Welding Machine
Copper wire 6-95mm²;Aluminum wire 6-95mm²	Copper wire 6-70mm²;Aluminum wire 6-85mm²	Copper wire, single‑sided 40‑200 mm²; Aluminum wire, double‑sided 20‑100 mm²
20KHz	20KHz	20KHz
AC 380V 50Hz	AC 380V 50Hz	AC 380V 50Hz
530kg	530kg	992kg
15009201950mm	15009201950mm	230016501300mm
9000W	6200W	13000W*2
