Ultrasonic Terminal Welding Machine

HMS-D00L Ultrasonic Terminal Welding Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Exhibition CPSE Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Key Attributes

HS Code	8515809090	Power	4000W
Voltage	AC 220V 50Hz	Equipment Weight	220kg
Equipment Size	710750830mm	Production Efficiency	120-150pcs/h
Wire Harness Welding Range	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²	Operating Frequency	20KHz
Air Pressure	>0.5MPa

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Product News Exhibition CPSE Ultrasonic Welding Machine Ultrasonic Terminal Welding Machine

Product introduction

Advanced ultrasonic welding technology

Easy operation

Compatible with MES systems

Password protection and parameter storage

Supports storage of 100,000 sets of welding data

Prevents misaligned welds, missing welds and incomplete fusion

Related accessories

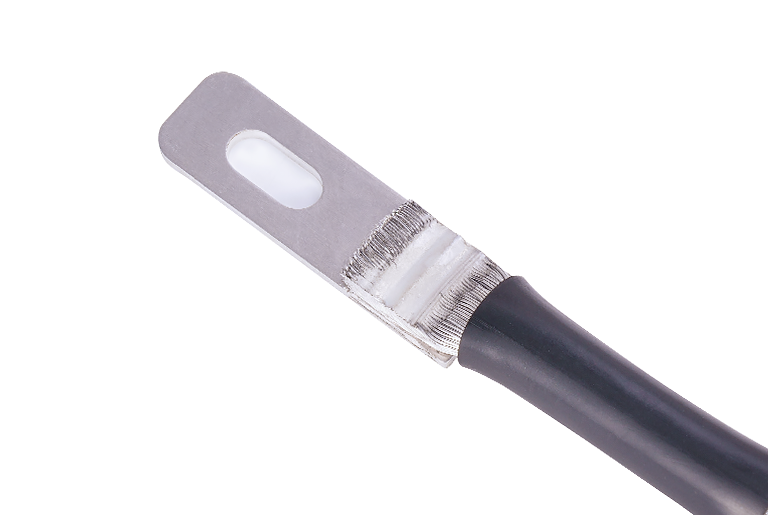

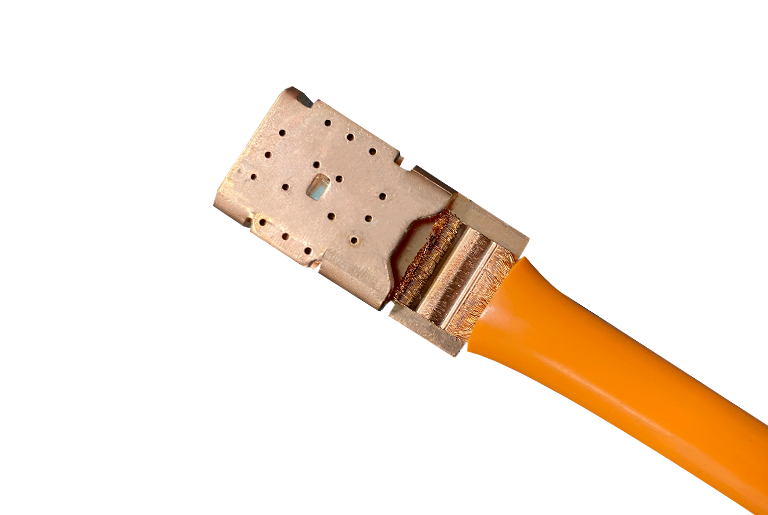

Sample Display

Comparison of similar product features

HMS-D00L Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²
Operating Frequency	20KHz
Voltage	AC 220V 50Hz
Equipment Weight	220kg
Equipment Size	710750830mm
Power	4000W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5MPa

HMS-D00 Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²
Operating Frequency	20KHz
Voltage	AC 220V 50Hz
Equipment Weight	220kg
Equipment Size	615760900 mm
Power	4000W
Production Efficiency	120-150pcs/h
Air Pressure	>0.5MPa

HMS-D00M Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire 1.5-12mm²;Aluminum wire 1.5-16mm²
Operating Frequency	20KHz
Voltage	AC 220V 50Hz
Equipment Weight	75kg
Equipment Size	645680762 mm
Power	2000W
Production Efficiency	120-180pcs/h
Air Pressure	>0.5 MPa

HMS-D02DB Ultrasonic Terminal Welding Machine

Wire Harness Welding Range	Copper wire, single‑sided 40‑200 mm²; Aluminum wire, double‑sided 20‑100 mm²
Operating Frequency	20KHz
Voltage	AC 380V 50Hz
Equipment Weight	992kg
Equipment Size	230016501300mm
Power	13000W*2
Production Efficiency	60-90pcs/h
Air Pressure	>0.5 MPa

Product Name

Wire Harness Welding Range

Operating Frequency

Voltage

Equipment Weight

Equipment Size

Power

Production Efficiency

Air Pressure

HMS-D00L Ultrasonic Terminal Welding Machine	HMS-D00 Ultrasonic Terminal Welding Machine	HMS-D00M Ultrasonic Terminal Welding Machine	HMS-D02DB Ultrasonic Terminal Welding Machine
Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²	Copper wire 2.5-25mm²;Aluminum wire 2.5-35mm²	Copper wire 1.5-12mm²;Aluminum wire 1.5-16mm²	Copper wire, single‑sided 40‑200 mm²; Aluminum wire, double‑sided 20‑100 mm²
20KHz	20KHz	20KHz	20KHz
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 380V 50Hz
220kg	220kg	75kg	992kg
710750830mm	615760900 mm	645680762 mm	230016501300mm
4000W	4000W	2000W	13000W*2
120-150pcs/h	120-150pcs/h	120-180pcs/h	60-90pcs/h
>0.5MPa	>0.5MPa	>0.5 MPa	>0.5 MPa
