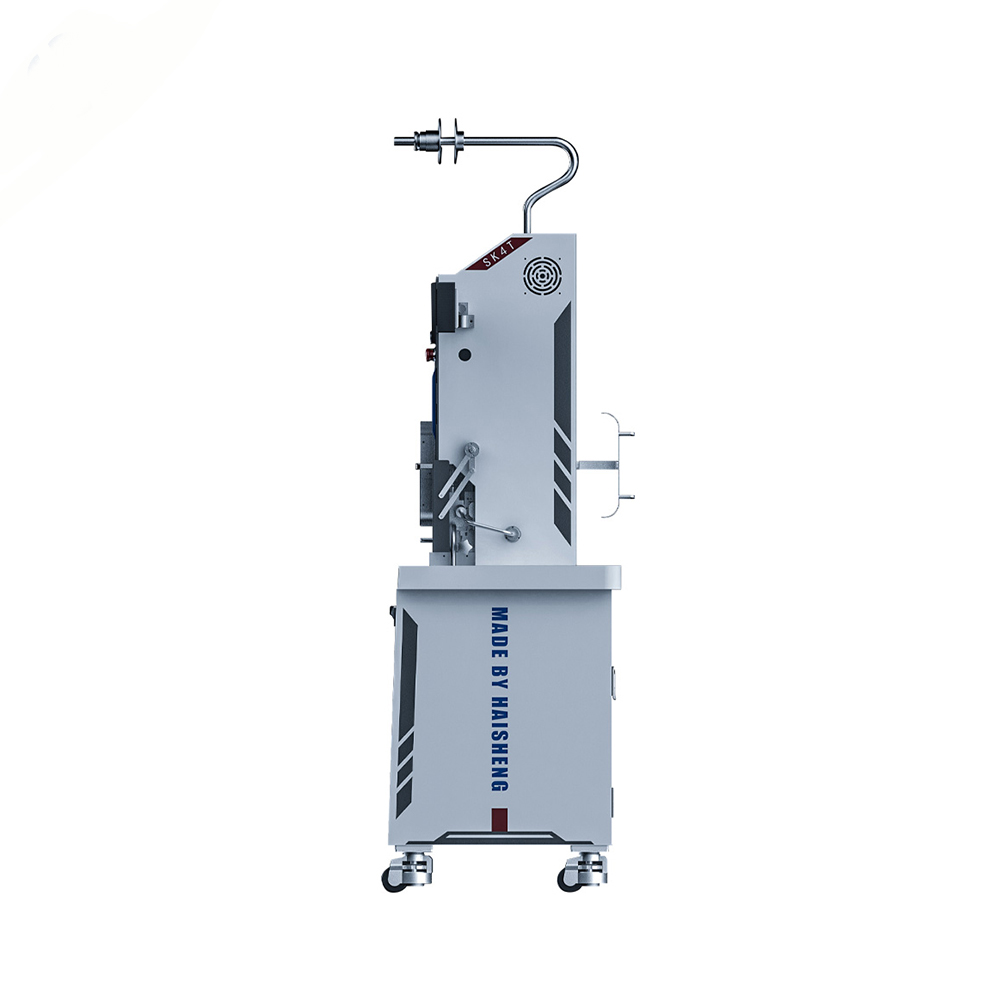

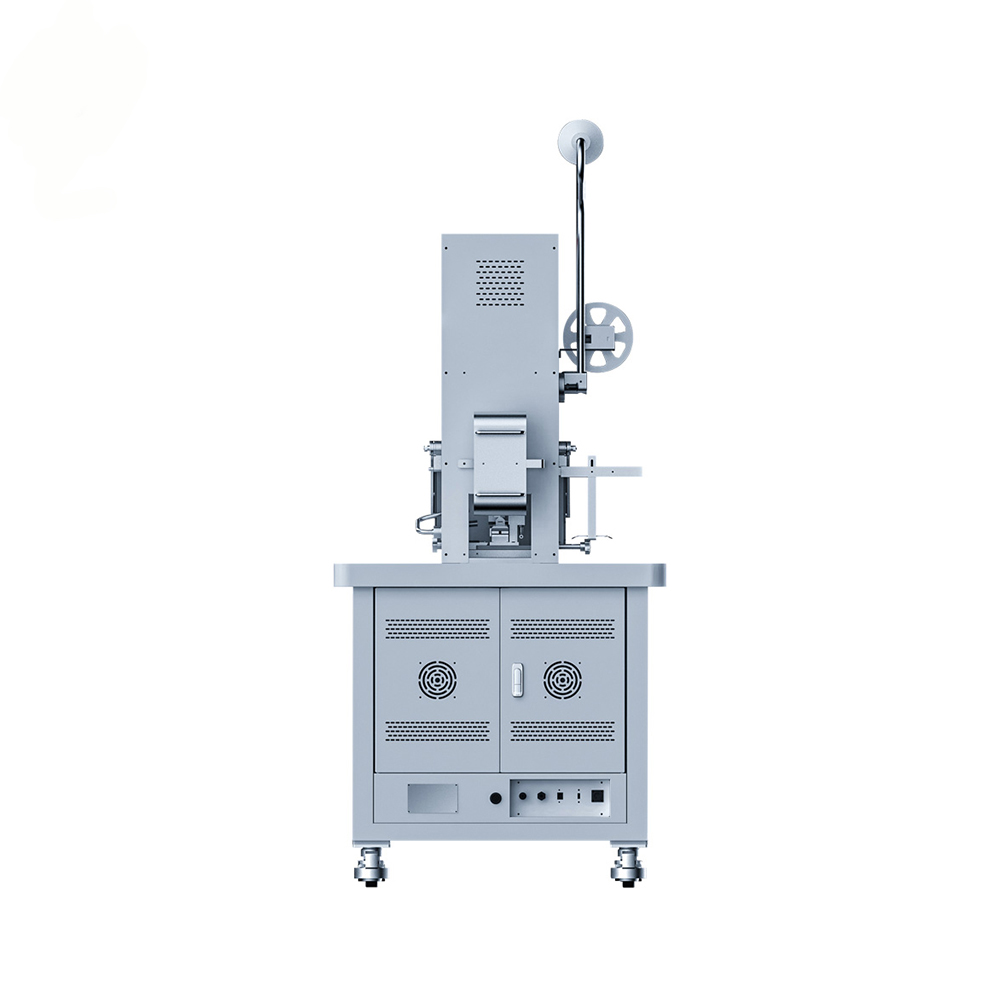

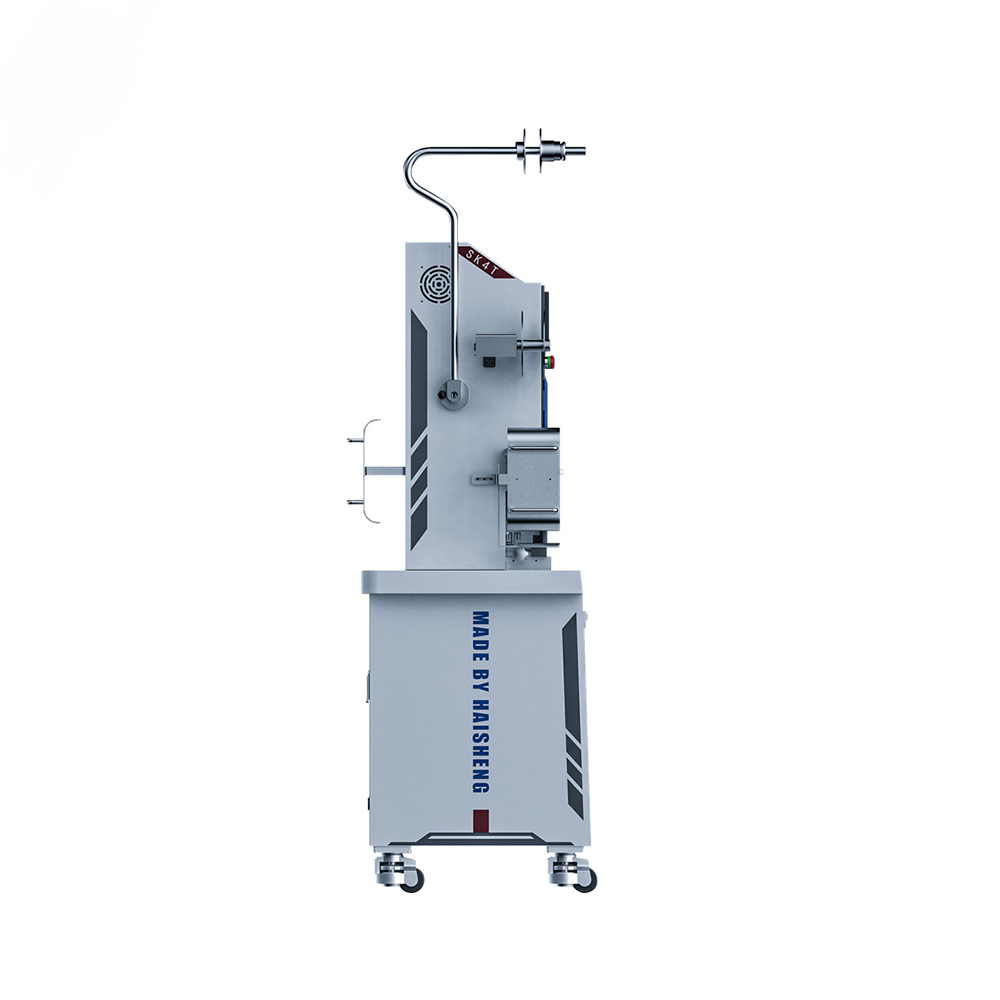

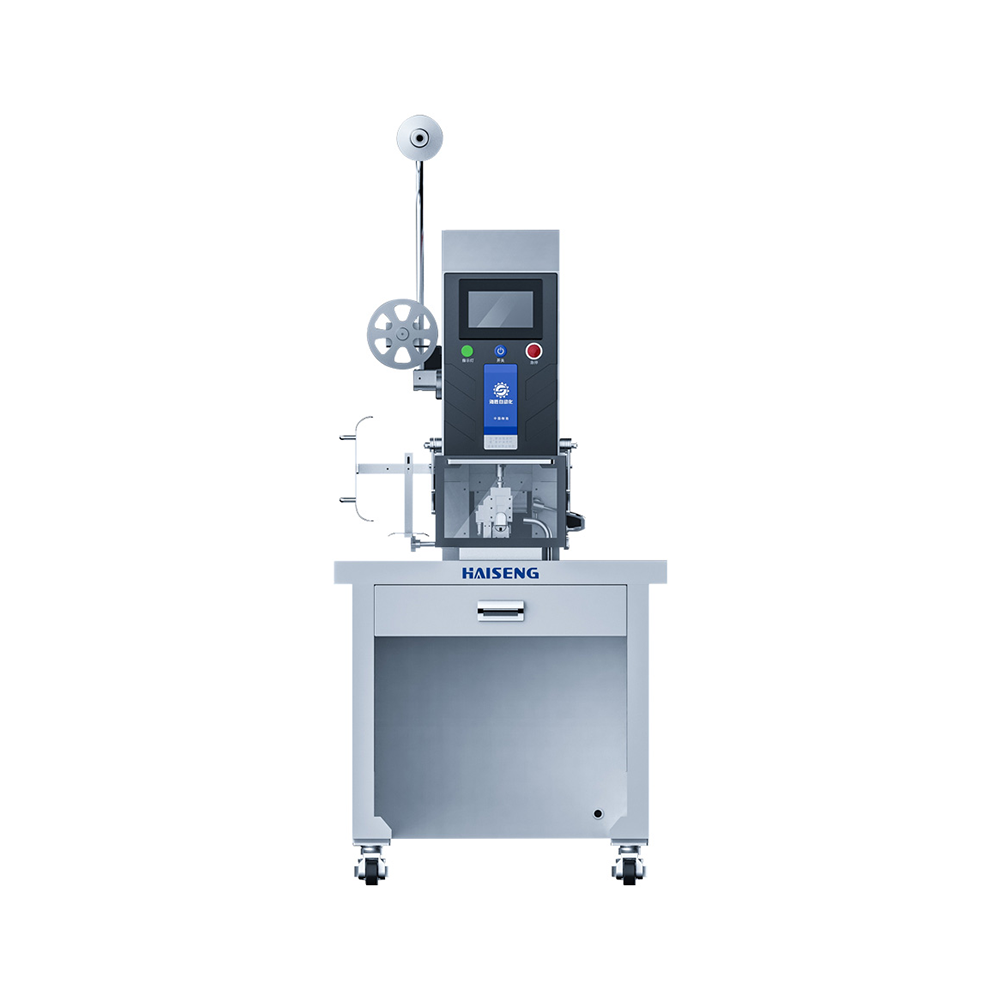

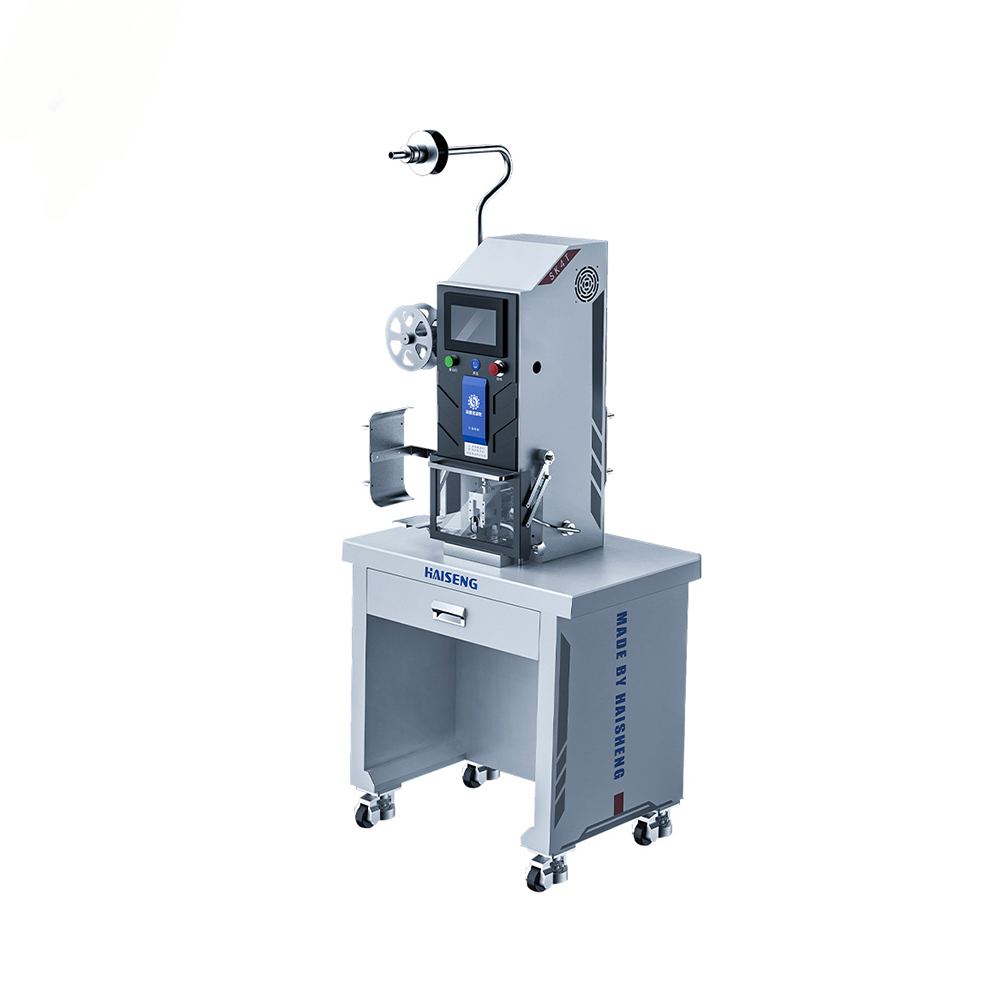

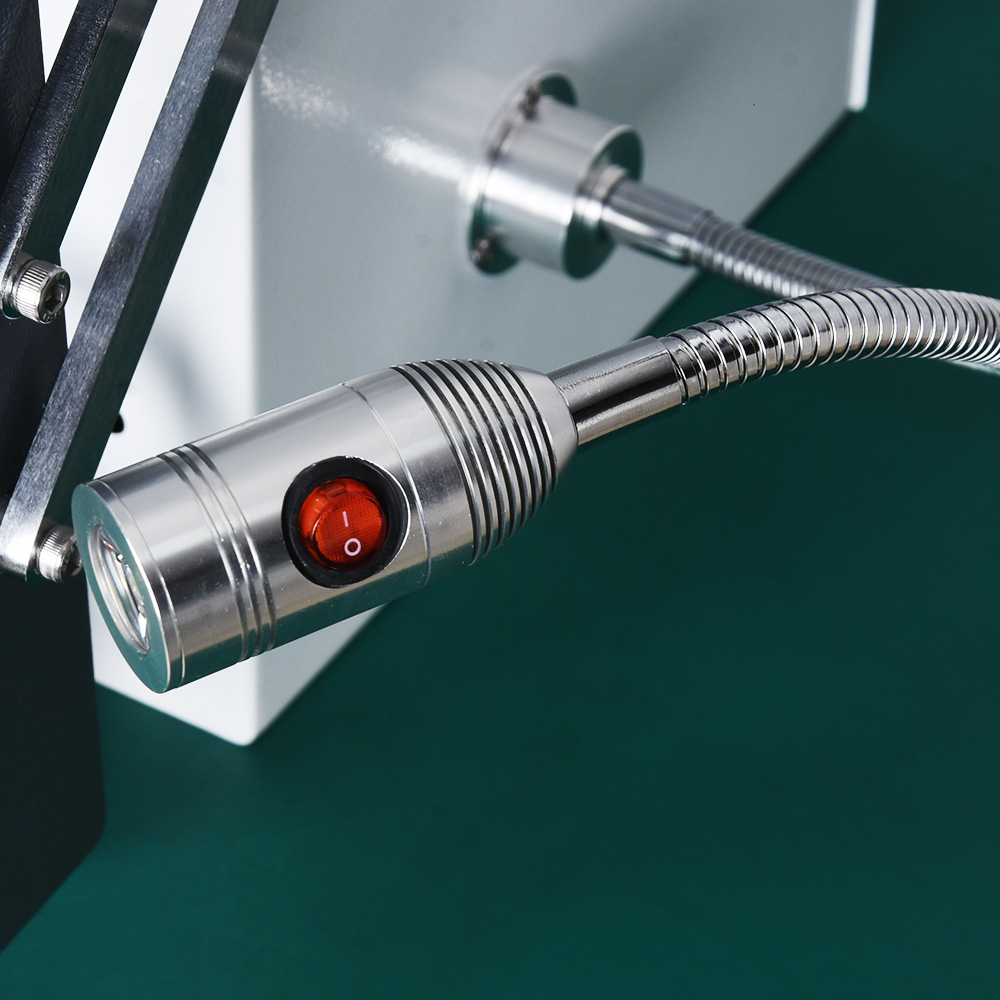

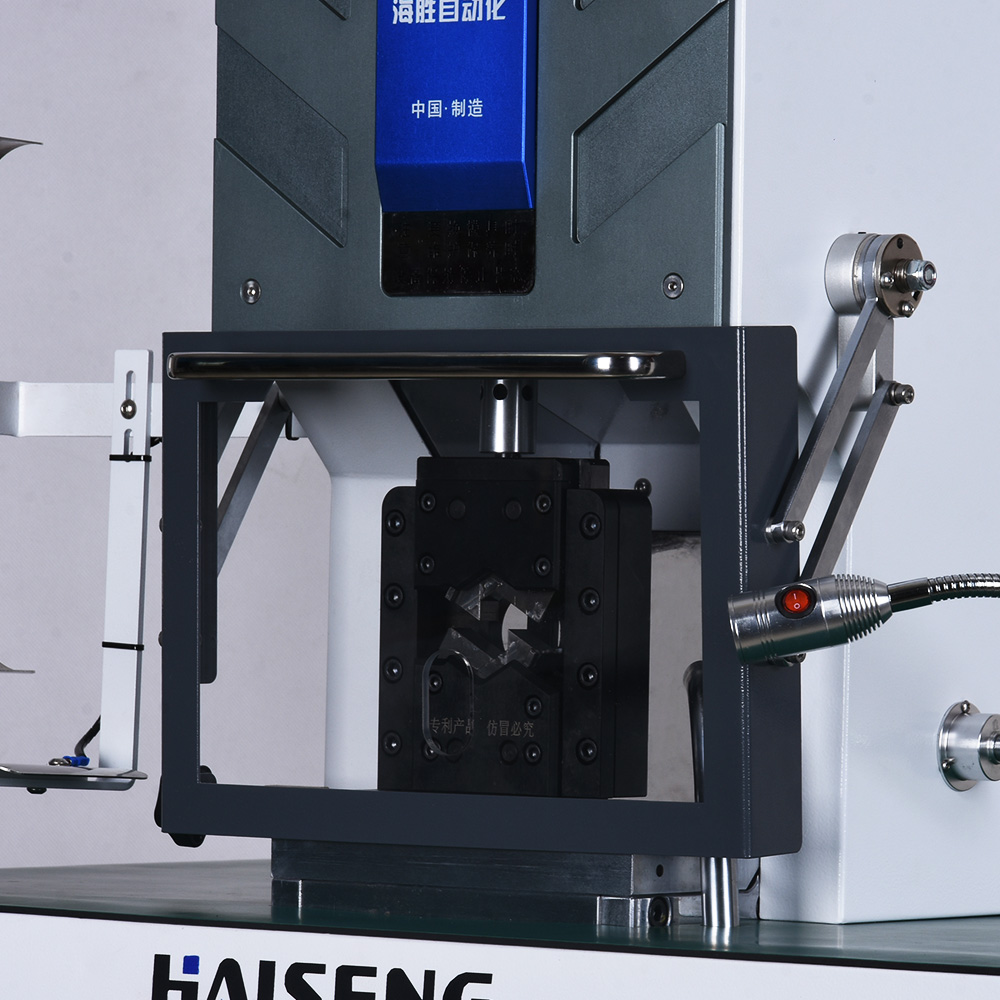

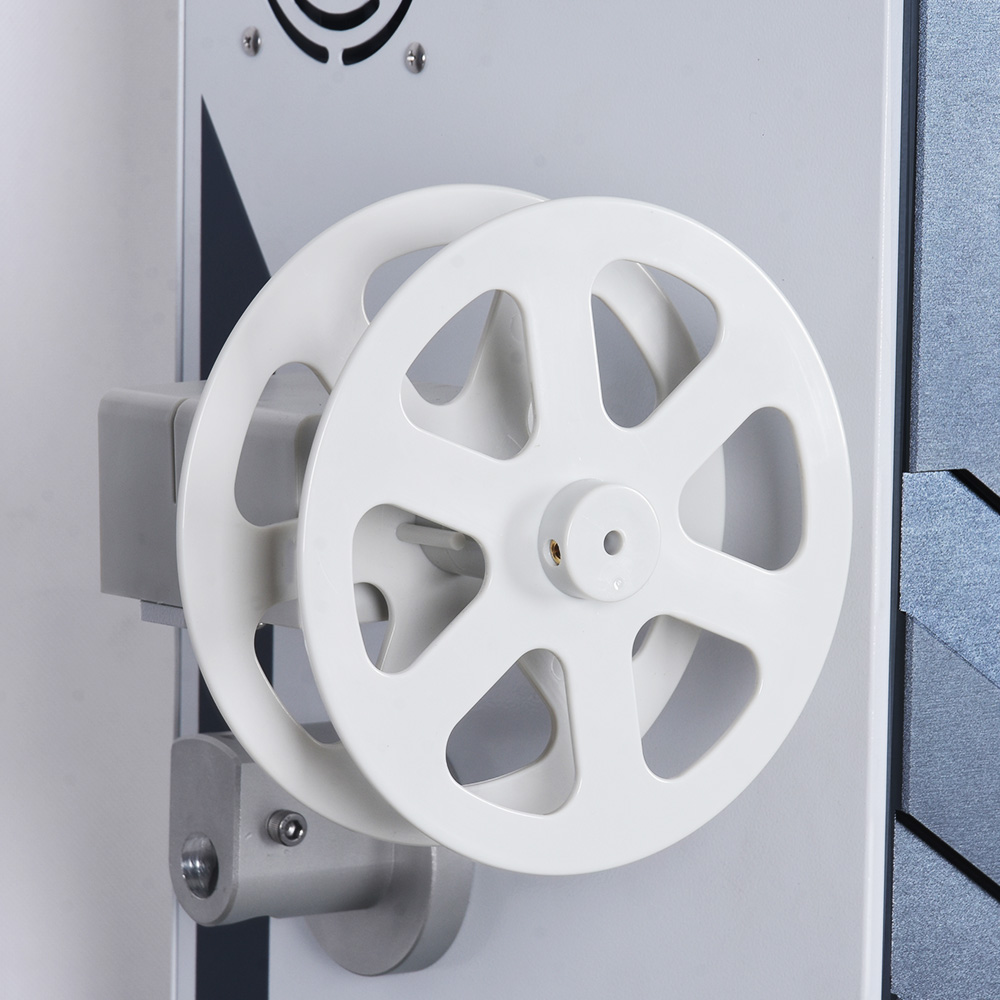

HS-SK4T CNC Servo Terminal Crimping Machine

Service hotline

+8618938694287

Add to the wish list

Product consultation

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Key Attributes

HS Code	8479819000	Power	2000W
Voltage	AC 220V 50Hz	Equipment Weight	280 kg
Equipment Size	8005361570 mm	Displayed	Touch screen
Production Efficiency	1200pcs/h	Crimping Capacity	4T
Crimping Cable Range	0.5-16mm²	Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Optional

Application Scenarios

Himinsen has accumulated extensive successful cases in high-end manufacturing sectors including new energy vehicles, charging guns, energy storage systems, AI servers, aerospace, medical devices, industrial electronics and household appliances. Leveraging its continuously innovative technological capabilities and efficient, reliable solution implementation, the company empowers global customers to achieve industrial upgrading and creates long-term core value.

Product News Crimping Machine New Energy Large Cable Intelligent Servo Terminal Crimping Machine

Product introduction

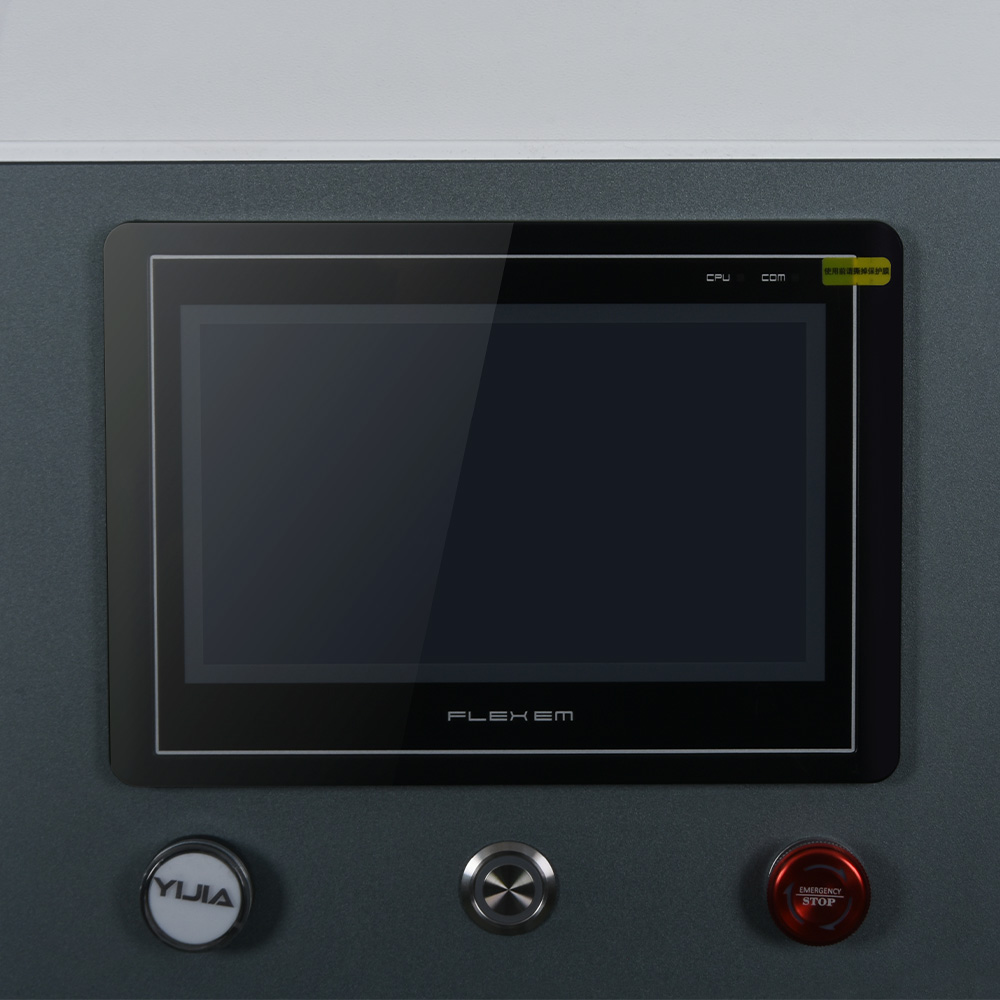

This equipment utilizes an advanced control system with full digital processing. After parameter presetting, it can automatically retrieve crimping data based on product specifications.Operational data is traceable. The machine is equipped with pressure sensors to monitor terminal crimping conditions in real time.Additionally, it features hierarchical authority management and barcode scanning recognition.

Simple operation

High crimping accuracy

Low maintenance cost

Support for pressure detection

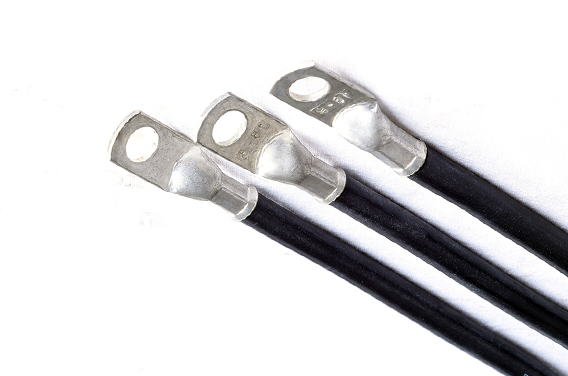

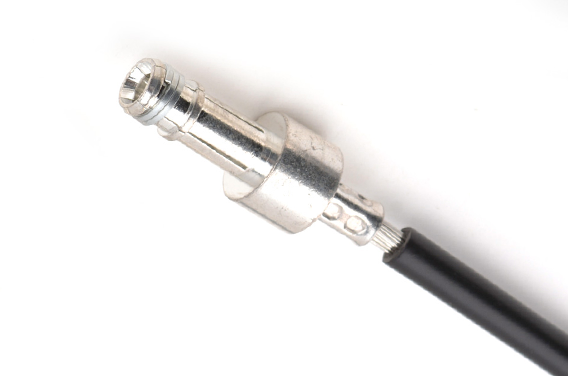

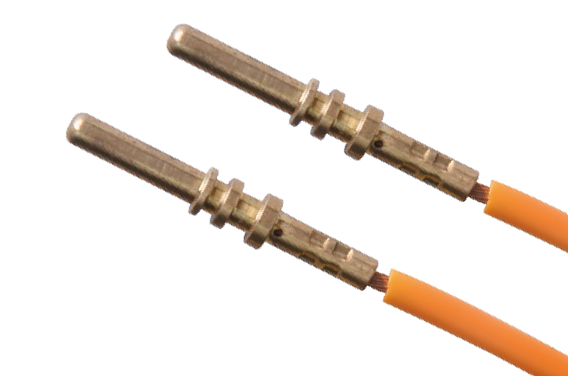

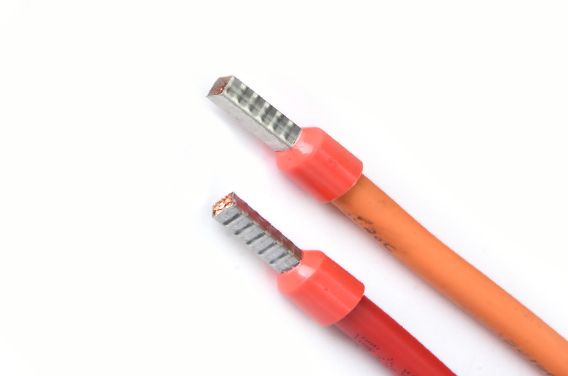

Sample Display

Comparison of similar product features

HS-SK4T CNC Servo Terminal Crimping Machine

HS Code	8479819000
Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	280 kg
Equipment Size	8005361570 mm
Crimping Capacity	4T
Crimping Cable Range	0.5-16mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Optional
Production Efficiency	1200pcs/h

HS-SK10T CNC Servo Terminal Crimping Machine

HS Code	8479819000
Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	340kg
Equipment Size	8686061650 mm
Crimping Capacity	10T
Crimping Cable Range	6-50mm²
Crimping Stroke	30/40 mm(Switchable）
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	1000pcs/h

HS-SK20T CNC Servo Terminal Crimping Machine

HS Code	8479819000
Power	2000W
Voltage	AC 220V 50Hz
Equipment Weight	400kg
Equipment Size	7676111400 mm
Crimping Capacity	20T
Crimping Cable Range	6-120mm²
Crimping Stroke	60 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	720pcs/h

HS-SK40T CNC Servo Terminal Crimping Machine

HS Code	8479819000
Power	4500W
Voltage	AC 220V 50Hz
Equipment Weight	550 kg
Equipment Size	8607701960 mm
Crimping Capacity	40T
Crimping Cable Range	16-300mm²
Crimping Stroke	75 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	400-500pcs/h

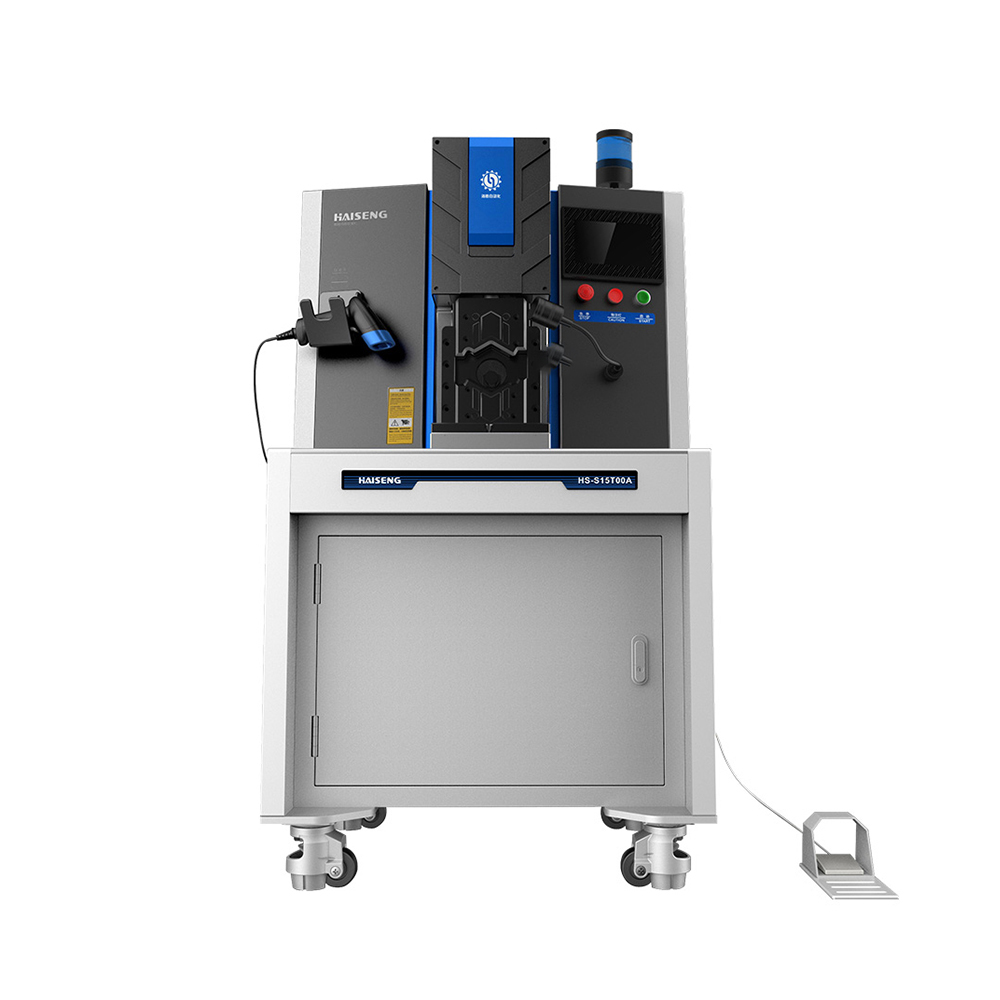

HS-SK60T CNC Servo Terminal Crimping Machine

HS Code	8479819000
Power	7500W
Voltage	AC 380V 50Hz
Equipment Weight	1200kg
Equipment Size	11209501800 mm
Crimping Capacity	60T
Crimping Cable Range	35-400mm²
Crimping Stroke	75 mm
Pressure Monitoring	Baseplate Pressure Monitoring
Production Efficiency	200-400pcs/h

Product Name

HS Code

Power

Voltage

Equipment Weight

Equipment Size

Crimping Capacity

Crimping Cable Range

Crimping Stroke

Pressure Monitoring

Production Efficiency

HS-SK4T CNC Servo Terminal Crimping Machine	HS-SK10T CNC Servo Terminal Crimping Machine	HS-SK20T CNC Servo Terminal Crimping Machine	HS-SK40T CNC Servo Terminal Crimping Machine	HS-SK60T CNC Servo Terminal Crimping Machine
8479819000	8479819000	8479819000	8479819000	8479819000
2000W	2000W	2000W	4500W	7500W
AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 380V 50Hz
280 kg	340kg	400kg	550 kg	1200kg
8005361570 mm	8686061650 mm	7676111400 mm	8607701960 mm	11209501800 mm
4T	10T	20T	40T	60T
0.5-16mm²	6-50mm²	6-120mm²	16-300mm²	35-400mm²
30/40 mm(Switchable）	30/40 mm(Switchable）	60 mm	75 mm	75 mm
Optional	Baseplate Pressure Monitoring	Baseplate Pressure Monitoring	Baseplate Pressure Monitoring	Baseplate Pressure Monitoring
1200pcs/h	1000pcs/h	720pcs/h	400-500pcs/h	200-400pcs/h
